On-Board Polyethylene Feed Systems
Assembly Diagrams / Spare Parts
All O-rings used on the Polyethylene Tanks are coated with Krytox GPL-203 to aid in initial
assembly. MSDS sheets are available upon request

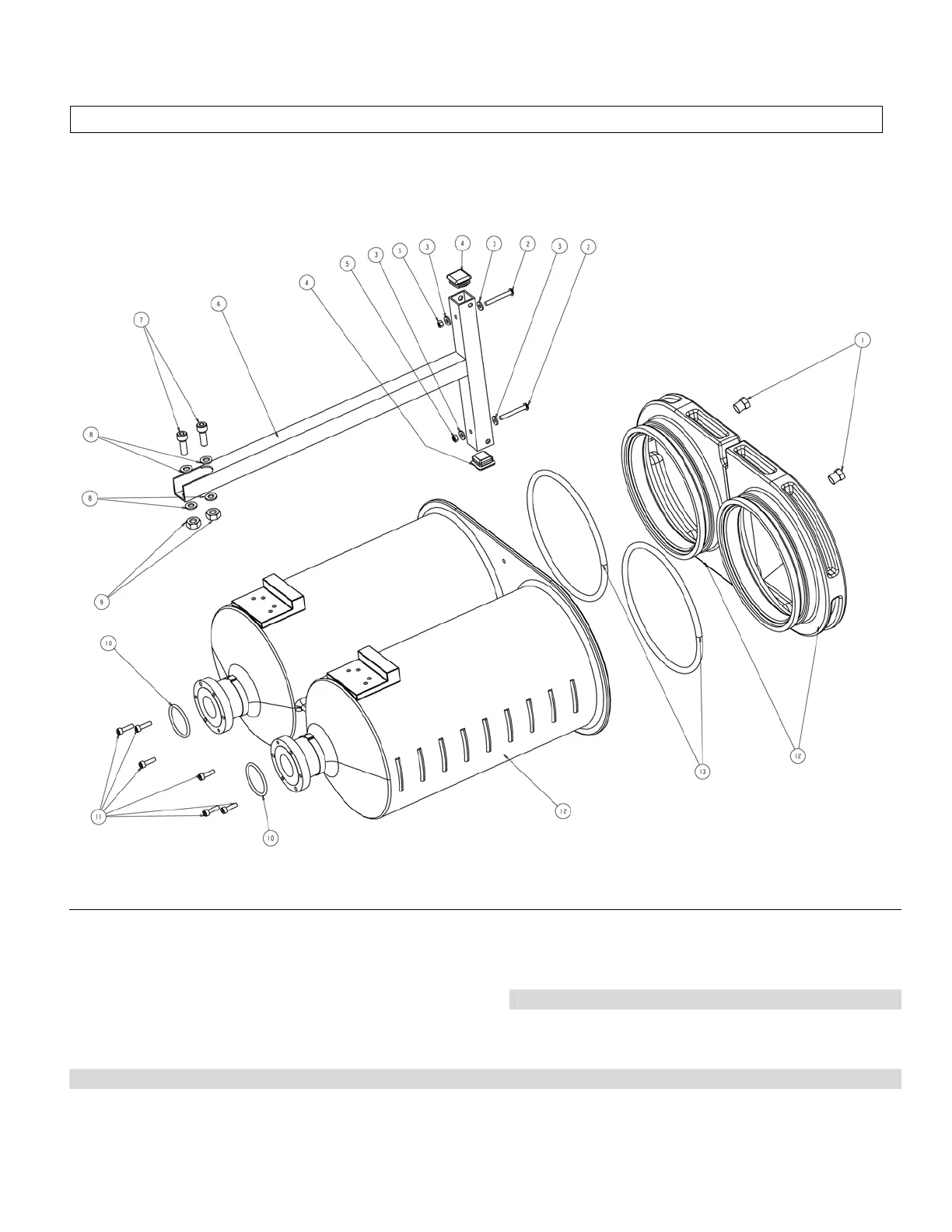

Figure 13: Standard On-Board PE Tank Assembly (P/N 255241)
1 120909 BREATHER 8 120908 WASHER,FLAT,M8,SST
2 120902 SCREW,SHCS,M5X0.8X40MM,SST 9 120906 NUT,HEX,LOCK,M8X1.25,SST
3 120907 WASHER,FLAT,#10,SST 10 95/0223/00 O-RING,VIT,BBC
4 120915 CAP PLUG 11 120904 SCREW,SHCS,M5X0.8X18MM,SST
5 120905 NUT,HEX,LOCK,M5X0.8,SST 12
15K838 TANK,DUAL,8L
6 15K842 SUPPORT,TANK 13 15K840 O-RING
7 120913 SCREW,SHC,M8X1.25X25,MS,E
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255479 MUST BE ORDERED
