On-Board Polyethylene Feed Systems

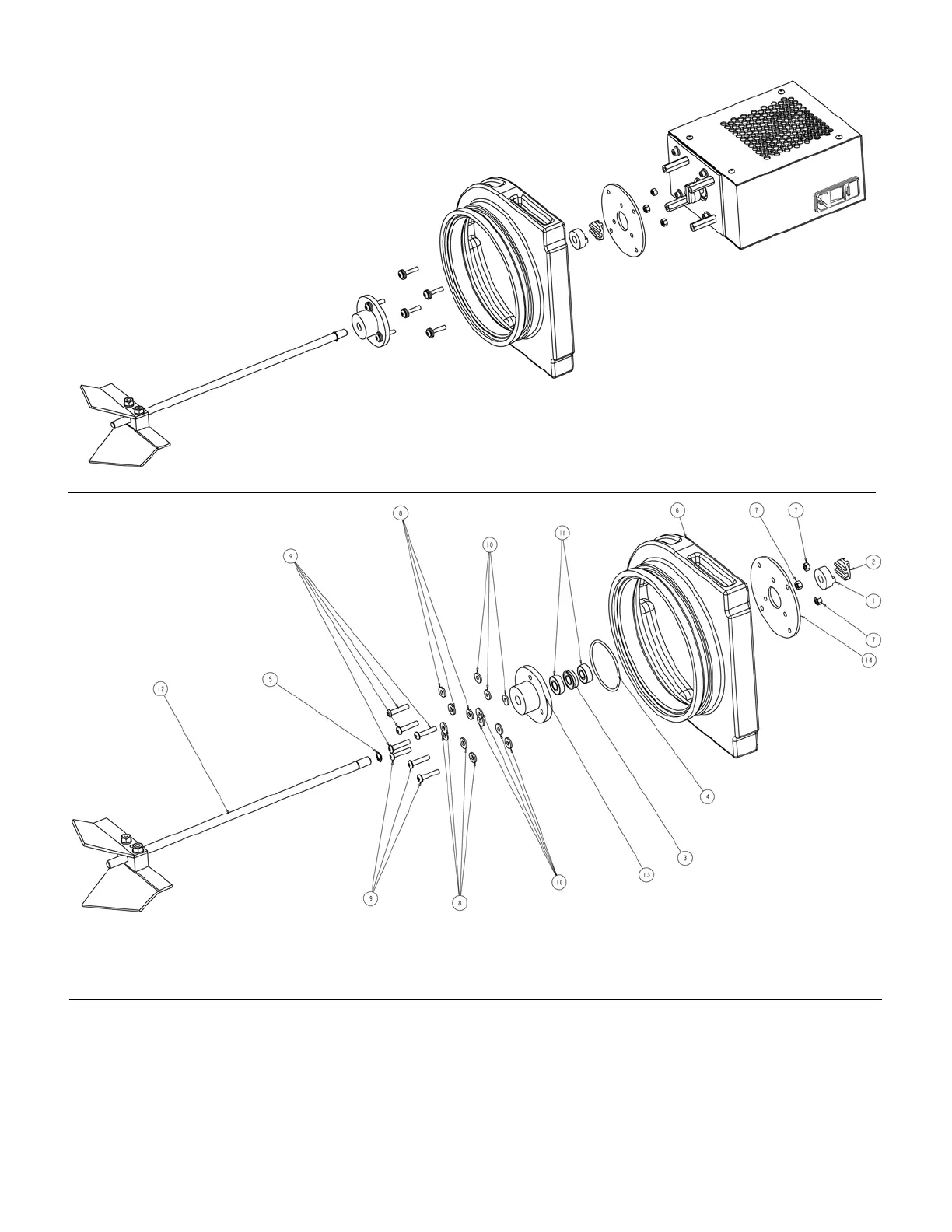

Figure 14: PE ELECTRIC AGITATOR View 1 of 3 (Overall View) (P/Ns: 255246 & 255503)
Figure 15: PE ELECTRIC AGITATOR View 2 of 3 (Lower View) (P/N 255246 & 255503)
1 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID 8 120907 WASHER,FLAT,#10,SST
2 84/2215-B/11 COUPLING,ALIGNMENT,1"OD,DISK,NYLON 9 120928 SCREW,BHCS,M5X0.8X25MM SST
3 95/0842/11 POSIPAK,3/8IDX7/8OD,STD,P/VIT 10 120930 WASHER,SEAL
4 95/0864/00 O-RING,VIT,ADA 11 121173 BEARING,BALL,3/8"IDX7/8"ODX9/32"WIDE SLD
5
96/0817/99 RING,RET,EXT,0.375,MS>@@@
12 255724 AGITATOR,SHAFT AND BLADE ASSY
6 ****** LID REPRESENTATION (REFERENCE ONLY) 13 15K884 HOUSING,BEARING
7 120905 NUT,HEX,LOCK,M5X0.8,SST 14 15K886 DISK,SUPPORT
312394B 13 of 71
