Graco PR70 - Component Identification

On-Board Polyethylene Feed Systems

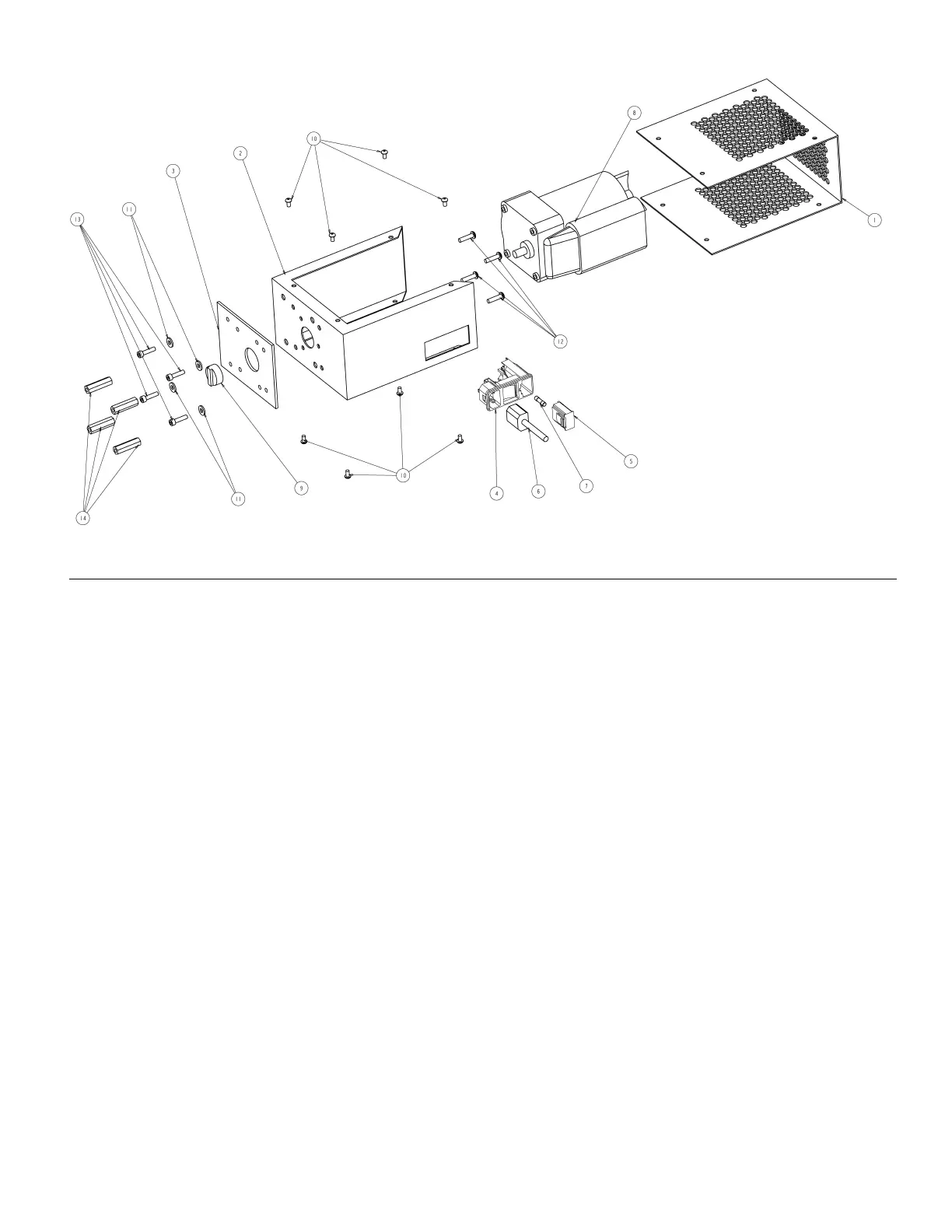

Figure 16: PE ELECTRIC AGITATOR View 3 of 3 (Motor Assembly View) (P/N 255246 & 255503)
P/N: 255246 AGITATOR ASSY, 120V
1 01/2218/97 ENCLOSURE,AGITATOR,ELEC,PRMV/F,HD>NOTES 8 81/2218-1/11
GEARMOTOR,50RPM,60IN-
LB,120V,W/FAN,1.2A>
2 ****** BOTTOM OF ENCLOSURE (REFERENCE ONLY) 9 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID
3 01/2219/97 PLATE,ADAPTER,ELEC AGIT,HD,PRM 10 96/0271/99 SCREW,BHCS,8-32X0.31,MS,E@@@
4 81/1040/11 CONNECTOR,AC,2P,250V,10A,DPST,W/FUSE HLD 11 120907 WASHER,FLAT,#10,SST
5 81/1040-1/11 FUSEDRAWER,AC CONN,2P,250V,10A,W/BAR,5MM 12 120960 SCREW,BHCS,M5X0.8X20MM
6 ***** POWER CORD (REFERENCE ONLY) 13 120961 SCREW,SHCS,10-32X.75"
7 81/1053-1.6/11 FUSE,5X20MM,1.6A,TIME DELAY 14 15K885 SPACER
P/N: 255503 AGITATOR ASSY, 240V
1 01/2218/97 ENCLOSURE,AGITATOR,ELEC,PRMV/F,HD>NOTES 8 81/2218-2/11
GEARMOTOR,50RPM,60IN-
LB,240V,W/FAN,1.2A>
2 ****** BOTTOM OF ENCLOSURE (REFERENCE ONLY) 9 84/2215-A/11 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID
3 01/2219/97 PLATE,ADAPTER,ELEC AGIT,HD,PRM 10 96/0271/99 SCREW,BHCS,8-32X0.31,MS,E@@@
4 81/1040/11 CONNECTOR,AC,2P,250V,10A,DPST,W/FUSE HLD 11 120907 WASHER,FLAT,#10,SST
5 81/1040-1/11 FUSEDRAWER,AC CONN,2P,250V,10A,W/BAR,5MM 12 120960 SCREW,BHCS,M5X0.8X20MM
6 ***** POWER CORD (REFERENCE ONLY) 13 120961 SCREW,SHCS,10-32X.75"
7 81/1053-1.6/11 FUSE,5X20MM,1.6A,TIME DELAY 14 15K885 SPACER
