Graco PR70 - Level Sensors

Level Sensors
Level Sensors

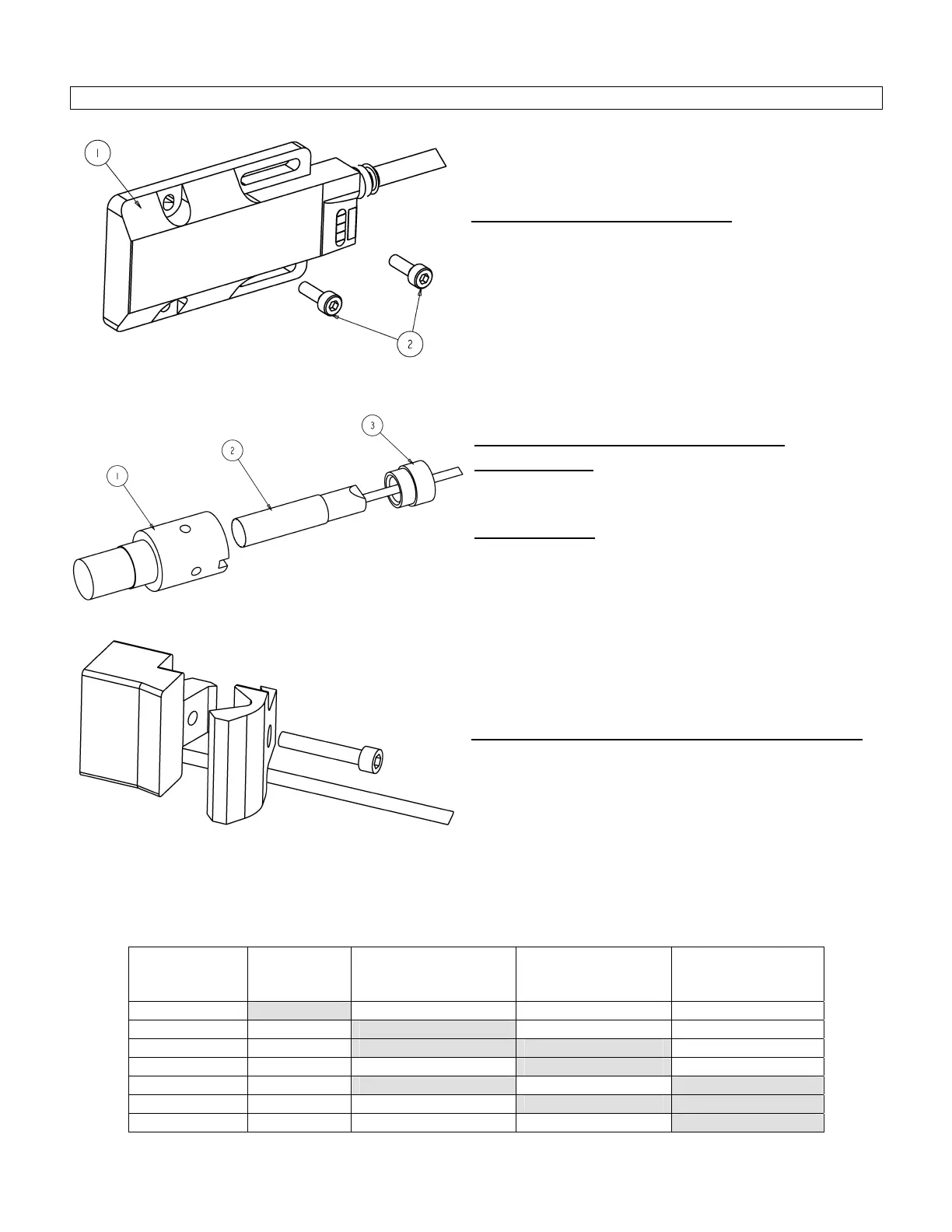

FIGURE 98: PE Tank Level Sensors
1 LC0027 SWITCH ASSY,PROX,CAP,PE TANK
2 96/1000/99 SCREW,SHC,M3X8,MS,E
FIGURE 99: Stainless Steel Tank Sensors
On-board Tanks
1 01/0026/87 PROX WELL
2 LC0029 SWITCH ASSY, PROX,CAP,STEEL,SHORT
3 01/0025-EF/87 PROX NUT
Off-board Tanks
1 01/0026/87
3
PROX WELL
2 LC0028 SWITCH ASSY, PROX,CAP,STEEL,LONG
01/0025-EF/87 PROX NUT
FIGURE 100: ACCUMULATOR SENSOR (P/N LC0152)
Two (2) low-level sensors (one on each tank/accumulator) must be used for the low-level function to work on the
machine. If sensors are being ordered separately or at a later date from the base machine, please refer to the table
below to determine which LC0XXX Level Sensor Assembly Kit to order
LEVEL ASSY
PE TANK
SENSOR(S)
ON-BOARD SST
TANK LEVEL
SENSOR(S)
OFF-BOARD SST
TANK LEVEL
SENSOR(S)
ACCUMULATOR
LEVEL
SENSOR(S)
LC0036 2 - - -
LC0037 - 2 - -
LC0038 - 1 1 -
LC0039 - - 2 -
LC0149 - 1 - 1
LC0150 - - 1 1
LC0151 - - - 2
312394B 71 of 71
