Graco PR70 - Advanced Display Module (ADM)

Component Identification
16 312759W
Advanced Display Module (ADM)
Module Status LED Diagnostics
If an invalid key is pressed, the Advanced Display
Module will sound three quick beeps to notify the
user.

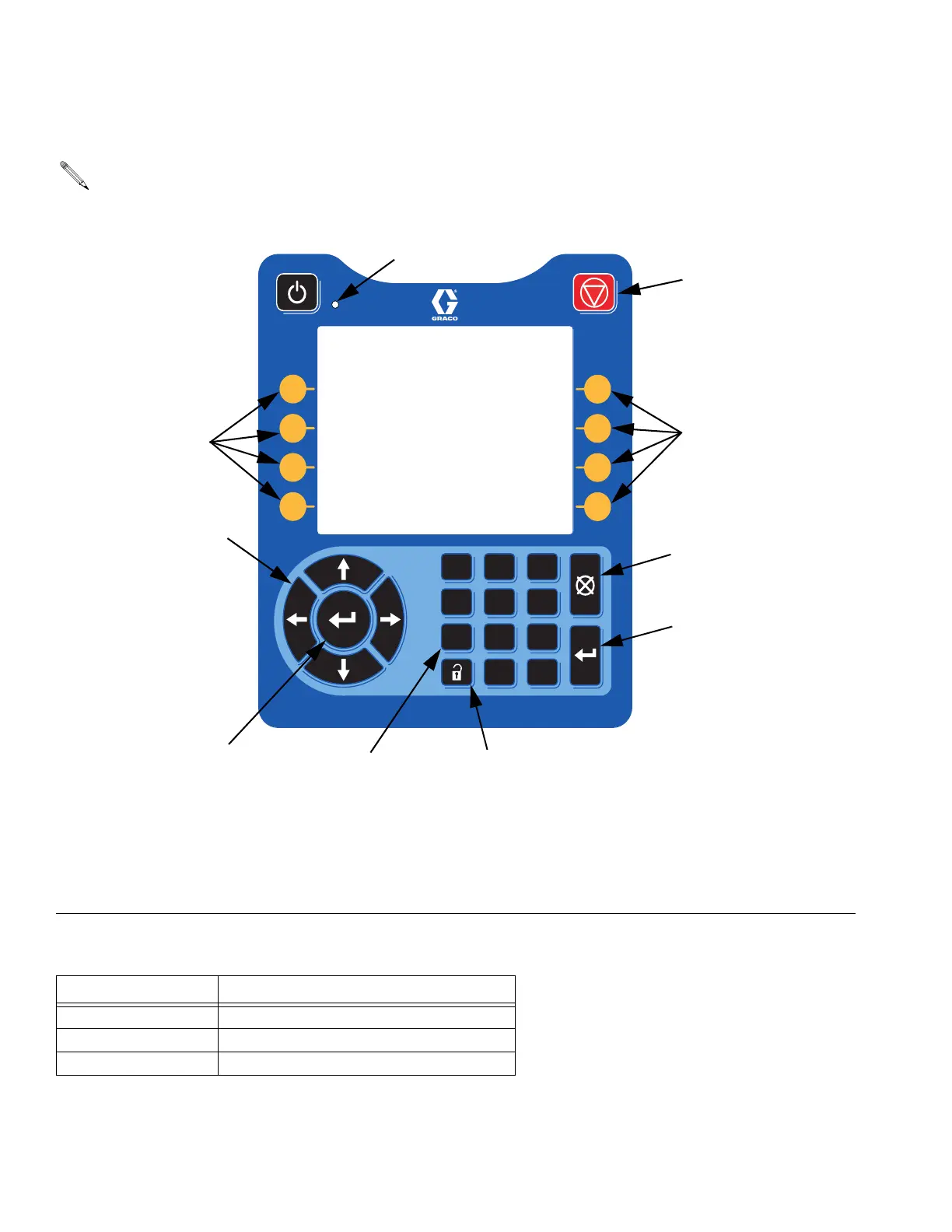

F
IG. 3
1 2 3
4 5 6
7 8 9
0 .
AB
AC
AC
AD
AE
AF
AG
AG
AH
Key:
AB Machine Disable Mode Key
AC Soft Keys
AD Directional Keypad
AE Numeric Keypad
AF Abort/Cancel Key
AG Enter Key
AH Alternate Setup/Operation Screens
AJ Module Status LED
AJ
State Description
Solid Green System enabled, valid mode selected
Flashing Yellow System disabled (setup screens)
Solid Yellow System disabled (operation screens)
