External Control Interface Timing

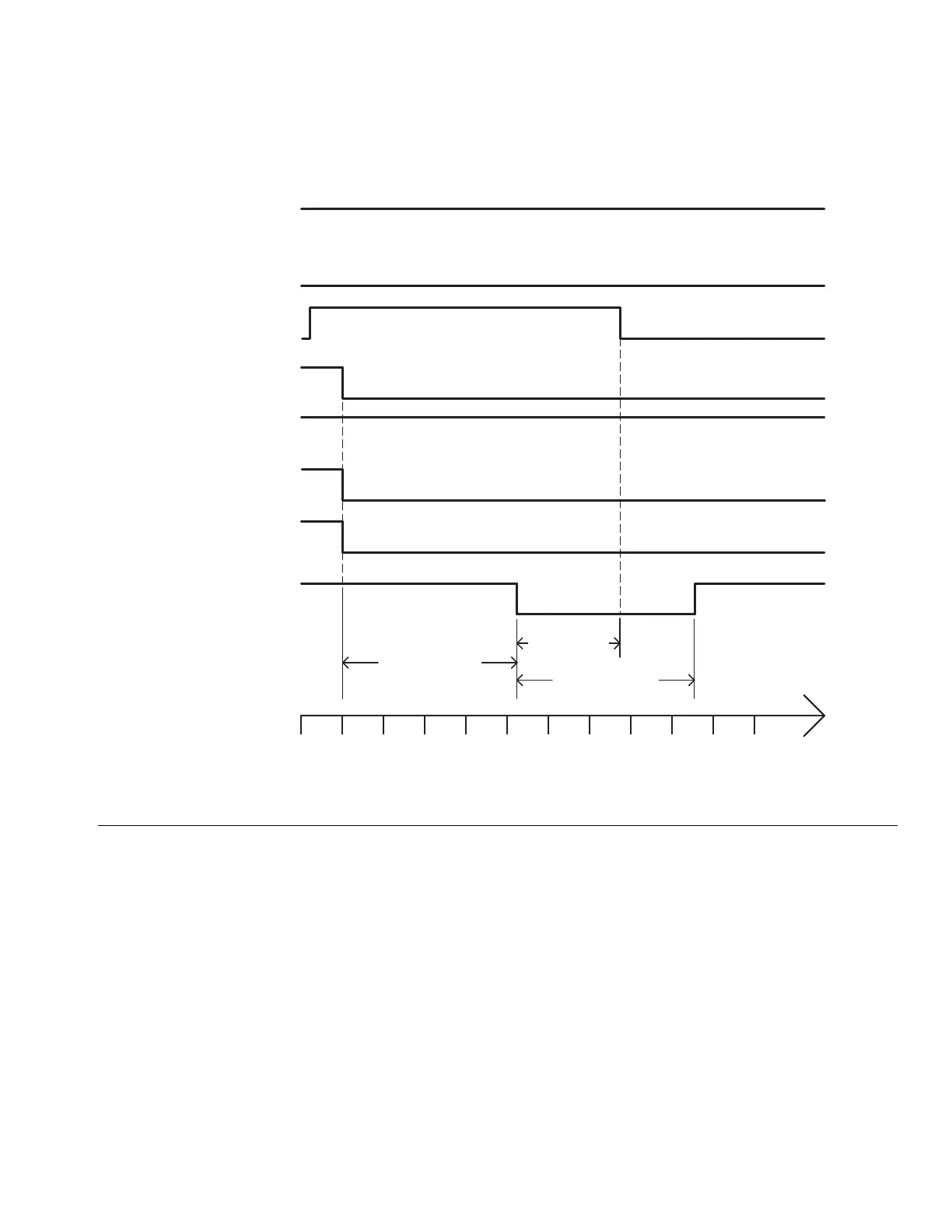

The following timing diagram illustrates changing the
shot number to Shot #13 then dispensing that shot.
F
IG. 34: External Control Timing Diagram
Ready-Out Status
SHOT-SEL-BITO
SHOT-SEL-BIT2
SHOT-SEL-BIT3
Shot Request
SHOT-SEL-BIT1
Fault-Out Status
100 mS
170 mS
170 mS
0 40 80 120 160 200 240 280 320 360 400 440
TIME (milliseconds)
Interrupt - Cancel
