Spraying
18 3A4702E

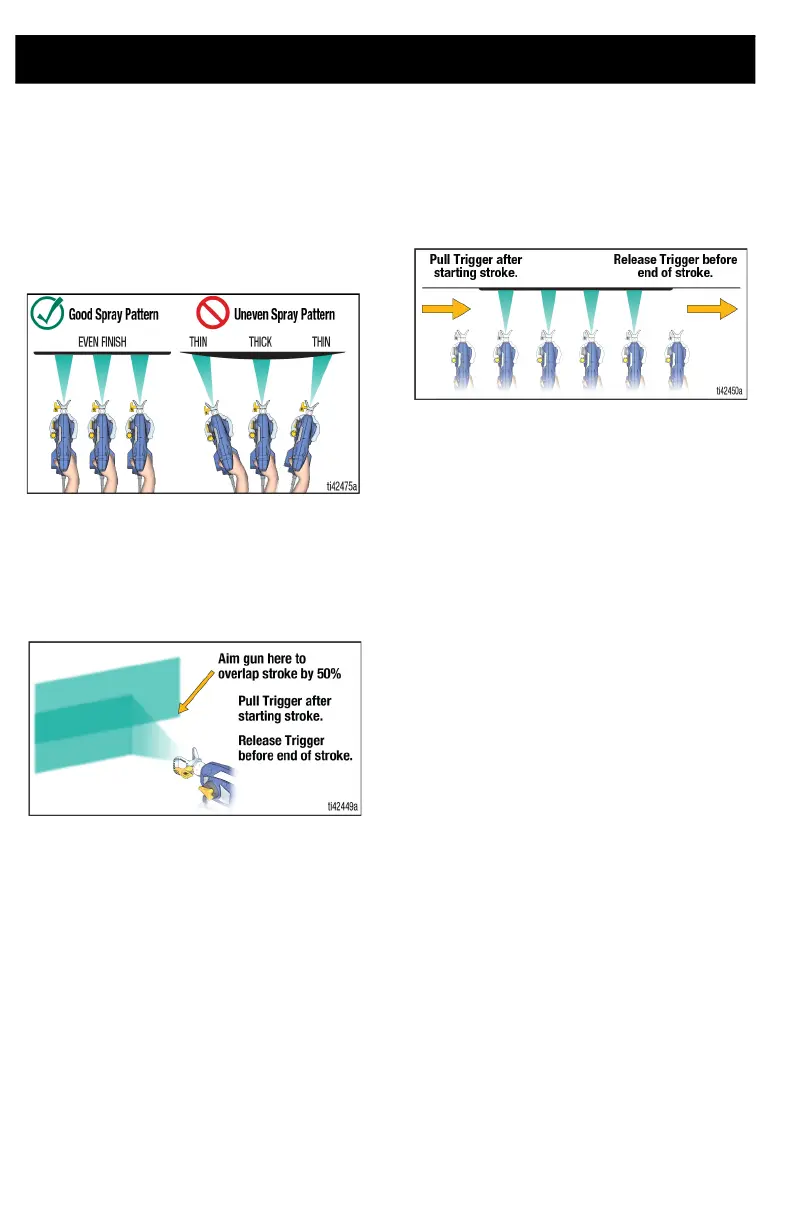

• Flex wrist to keep sprayer pointed
straight. Fanning sprayer to direct spray
at angle causes uneven finish.
NOTE: How fast you move the sprayer will
affect spray application. If material is
pulsating, you are moving too fast. If material
drips, you are moving too slow. See
Troubleshooting, page 28.
Aiming Sprayer
Aim the sprayer at the bottom edge of the
previous stroke, overlapping each stroke by
50%.
Triggering Timing
Pull Trigger after starting stroke. Release
Trigger before end of stroke. Sprayer must
be moving when Trigger is pulled and
released.
Reversible Spray Tips
Your sprayer is compatible with wide and
narrow reversible Spray Tips.
• 0.014 & Larger Spray Tips are for
spraying paint and should be used
with the black Pump Filter.
• 0.012 & Smaller Spray Tips are for
spraying stain and should be used
with the blue Pump Filter.
Not all tips and filters are included with all
models.
