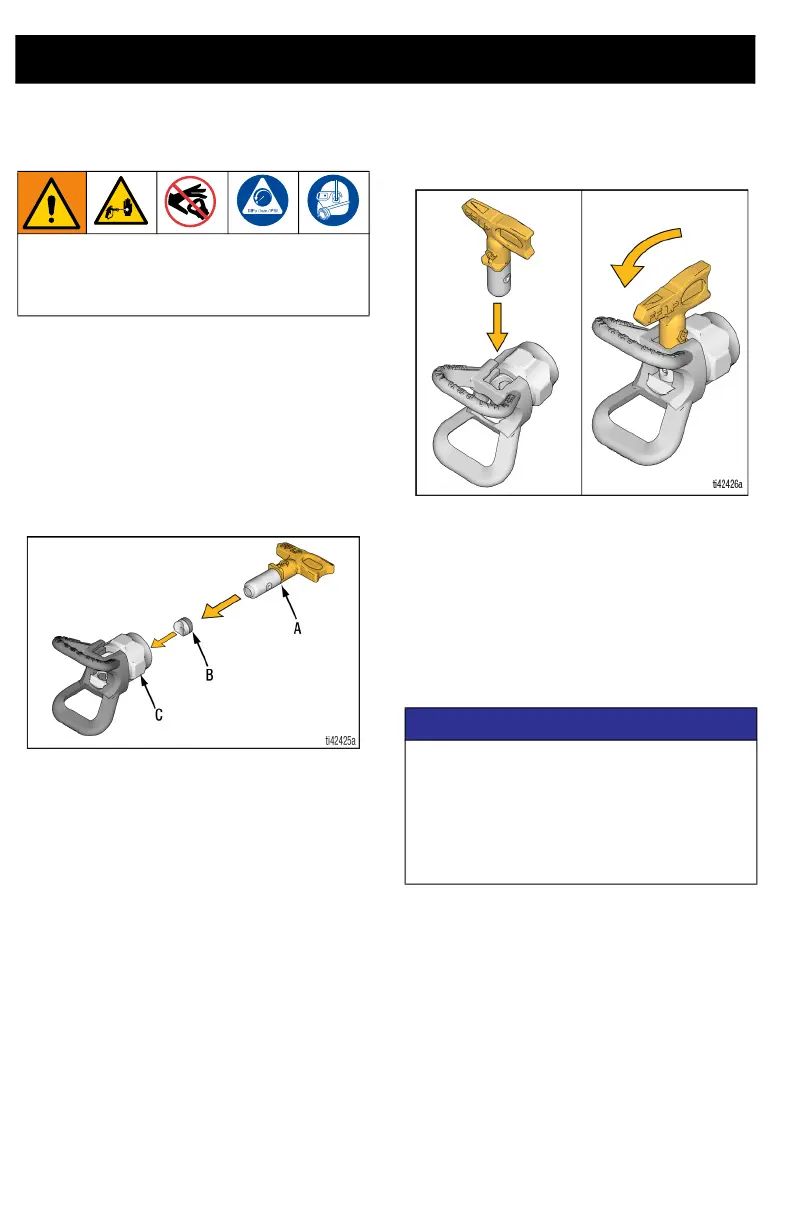

Spray Tip Installation
To prevent Spray Tip leaks, make certain
Spray Tip and Spray Tip Guard are installed
properly.
1. Perform Pressure Relief Procedure,
page 11.
2. Unplug the Power Cord.
3. Use Spray Tip (A) to insert seal (B) into
Spray Tip Guard (C).
4. Insert Spray Tip. Spray Tip must be
pushed all the way into the Spray Tip
Guard.
5. Screw Spray Tip Guard assembly onto
the sprayer and hand tighten.
• Spray Tips wear with use and abrasive
paint and need periodic replacement.
• If the spray pattern is poor, you may
have a worn Spray Tip. Replace Spray
Tip. See Spray Pattern Diagnostics,
page 31.
To avoid serious injury from skin injection
do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Spray Tip Guard.
NOTICE
Spray Tips must be cleaned or stored in
appropriate cleaning fluid (water or
mineral spirits) immediately after use to
ensure material is not allowed to dry in
Spray Tip. Failure to do so will result in
damage to the Spray Tip. See Cleanup,
page 22.
