Graco Reactor 2 H-XP2 User Manual

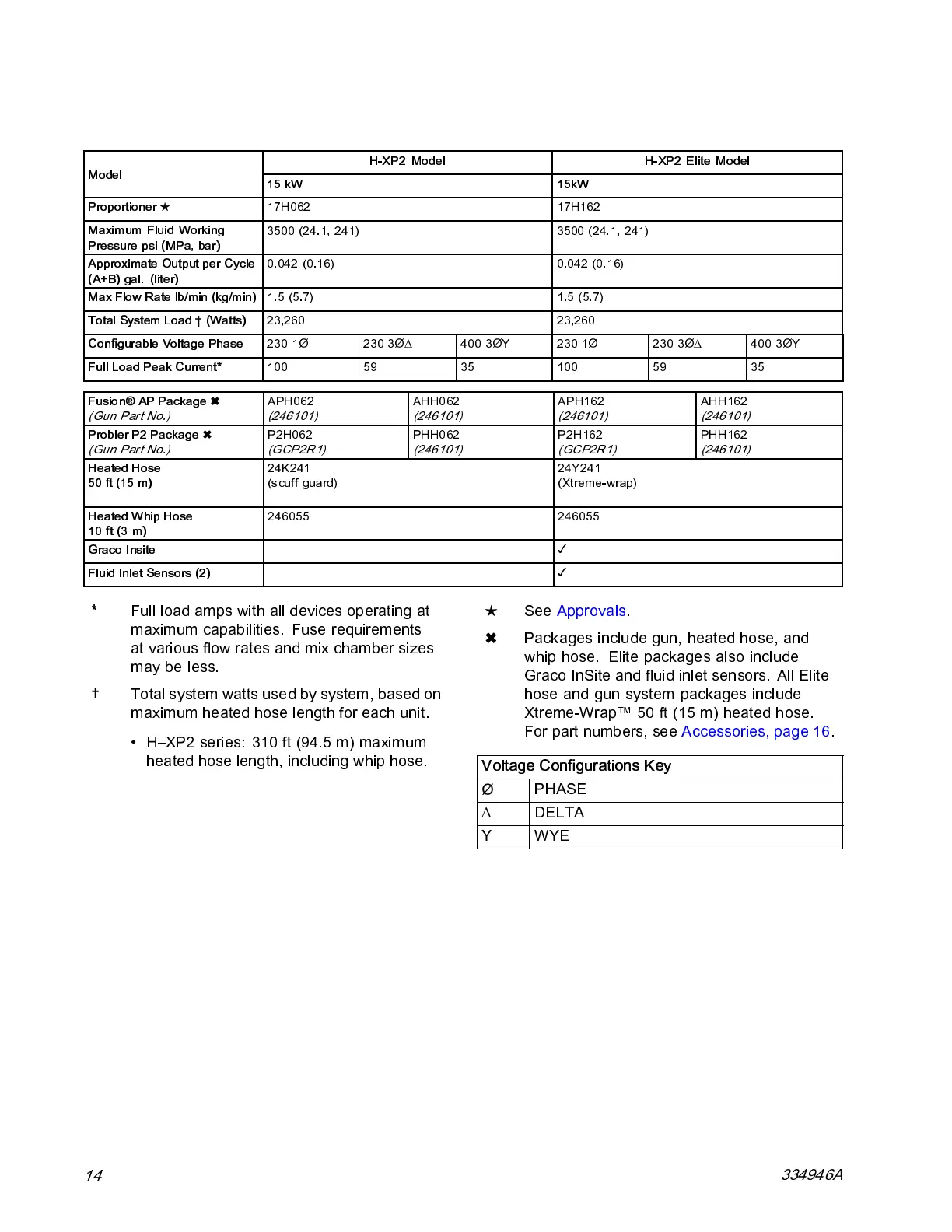

Models
Reactor 2 H-XP2 and H-XP2 Elite
H-XP2 Model H-XP2 Elite Model
Model
15 kW 15kW
Proportioner ★ 17H062 17H162
Maximum Fluid Working
Pressure psi (MPa, bar)
3500 (24.1, 241) 3500 (24.1, 241)
Approximate Output per Cycle
(A+B) gal. (liter)
0.042 (0.16) 0.042 (0.16)
Max Flow Rate lb/min (kg/min) 1.5 (5.7) 1.5 (5.7)
Total System Load † (Watts) 23,260 23,260
Configurable Voltage Phase
230 1Ø 230 3Ø∆ 400 3Ø Y 230 1Ø 230 3Ø∆ 400 3Ø Y
Full Load Peak Current* 100 59 35 100 59 35
Fusion ® AP Package 
(Gun P art No.)
APH062
(246101)
AHH062
(246101)
APH162
(246101)
AHH162
(246101)
Probler P2 Package 
(Gun P art No.)
P2H062
(GCP2R1)
PHH062
(246101)
P2H162
(GCP2R1)
PHH162
(246101)
Heated Hose
50 ft (15 m)
24K241
(scuff guard)
24Y241
(Xtreme-wrap)
Heated Whip Hose
10 ft (3 m)
246055 246055
Graco Insite
✓
Fluid Inlet Sensors (2)
✓
*
Full load amps with all devices operating at
max imum capabilities. Fuse requirements
at various flow rates and mix chamber sizes
may be less.

Total system watts used by system, based on
max imum heated hose length for each unit.
• H–XP2 series: 310 ft (94.5 m) maximum
heated hose length, including whip hose.
★
See Approvals.

Packages include gun, heated hose, and
whip hose. Elite packa ges also incl ude
Graco InSite and fluid inlet sensors. All Elite
hose and gun system packages include
Xtreme-Wrap™ 50 ft (15 m) heated hose.
For part numbers, see Accessories, page 16.
Voltage Configurations Key
Ø
PHASE
∆
DELTA
YWYE
14
334946A
