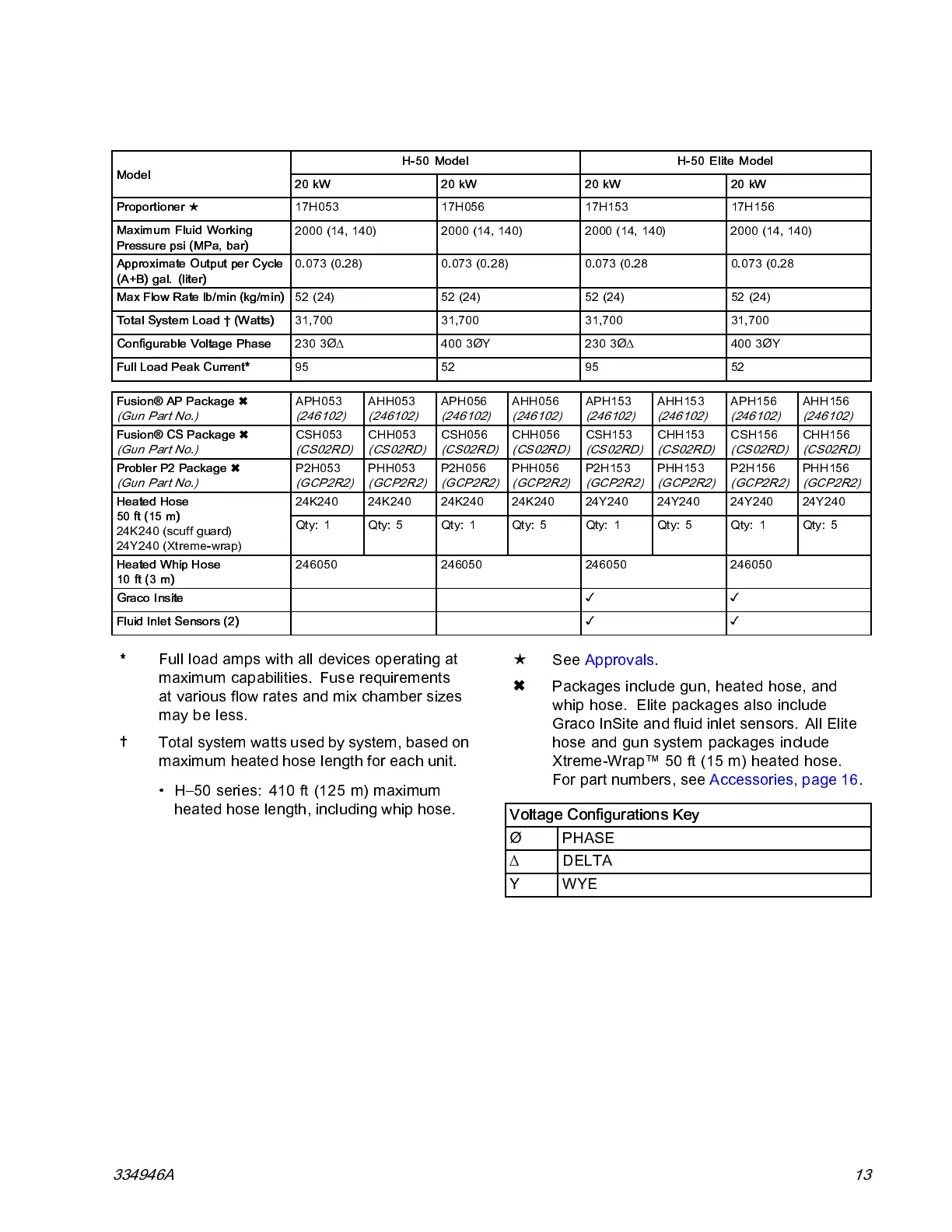

Models
Reactor 2 H-50 and H-50 Elite
H-50 Model H-50 Elite Model
Model
20 kW 20 kW 20 kW 20 kW
Proportioner ★ 17H053 17H056 17H153 17H156
Maximum Fluid Working
Pressure psi (MPa, bar)
2000 (14, 140) 2000 (14, 140) 2000 (14, 140) 2000 (14, 140)
Approximate Output per Cycle
(A+B) gal. (liter)
0.073 (0.28) 0.073 (0.28) 0.073 (0.28 0.073 (0.28
Max Flow Rate lb/min (kg/min) 52 (24) 52 (24) 52 (24) 52 (24)
Total System Load † (Watts) 31,700 31,700 31,700 31,700
Configurable Voltage Phase
230 3Ø∆ 400 3ØY 230 3Ø∆ 400 3Ø Y
Full Load Peak Current* 95 52 95 52
Fusion ® AP Package 
(Gun Part No.)
APH053
(246102)
AHH053
(246102)
APH056
(246102)
AHH056
(246102)
APH153
(246102)
AHH153
(246102)
APH156
(246102)
AHH156
(246102)
Fusion ® CS Package 
(Gun Part No.)
CSH053
(CS02RD)
CHH053
(CS02RD)
CSH056
(CS02RD)
CHH056
(CS02RD)
CSH153
(CS02RD)
CHH153
(CS02RD)
CSH156
(CS02RD)
CHH156
(CS02RD)
Probler P2 Package 
(Gun Part No.)
P2H053
(GCP2R2)
PHH053
(GCP2R2)
P2H056
(GCP2R2)
PHH056
(GCP2R2)
P2H153
(GCP2R2)
PHH153
(GCP2R2)
P2H156
(GCP2R2)
PHH156
(GCP2R2)
24K240 24K240 24K240 24K240 24Y240 24Y240 24Y240 24Y240 Heated Hose
50 ft (15 m)
24K240 (scuff guard)
24Y240 (Xtreme-wrap)
Qty:1 Qty:5 Qty:1 Qty:5 Qty:1 Qty:5 Qty:1 Qty:5
Heated Whip Hose
10 ft (3 m)
246050 246050 246050 246050
Graco Insite
✓✓
Fluid Inlet Sensors (2)
✓✓
*
Full load amps with all devices operating at
maximum capabilities. Fuse requirements
at various flow rates and mix chamber sizes
may be less.

Total system watts used by system, based on
maximum heated hose length for each unit.
• H–50 series: 410 ft (125 m) maximum
heated hose length, including whip hose.
★
See Approvals.

Packages include gun, heated hose, and
whip hose. Elite packages also include
Graco InSite and fl uid in le t se ns ors . All Elite
hose and gun system packages include
Xtreme-Wrap™ 50 ft (15 m) heated hose.
For part numbers, see Accessories, page 16.
Voltage Configurations Key
Ø
PHASE
∆
DELTA
YWYE
334946A 13
