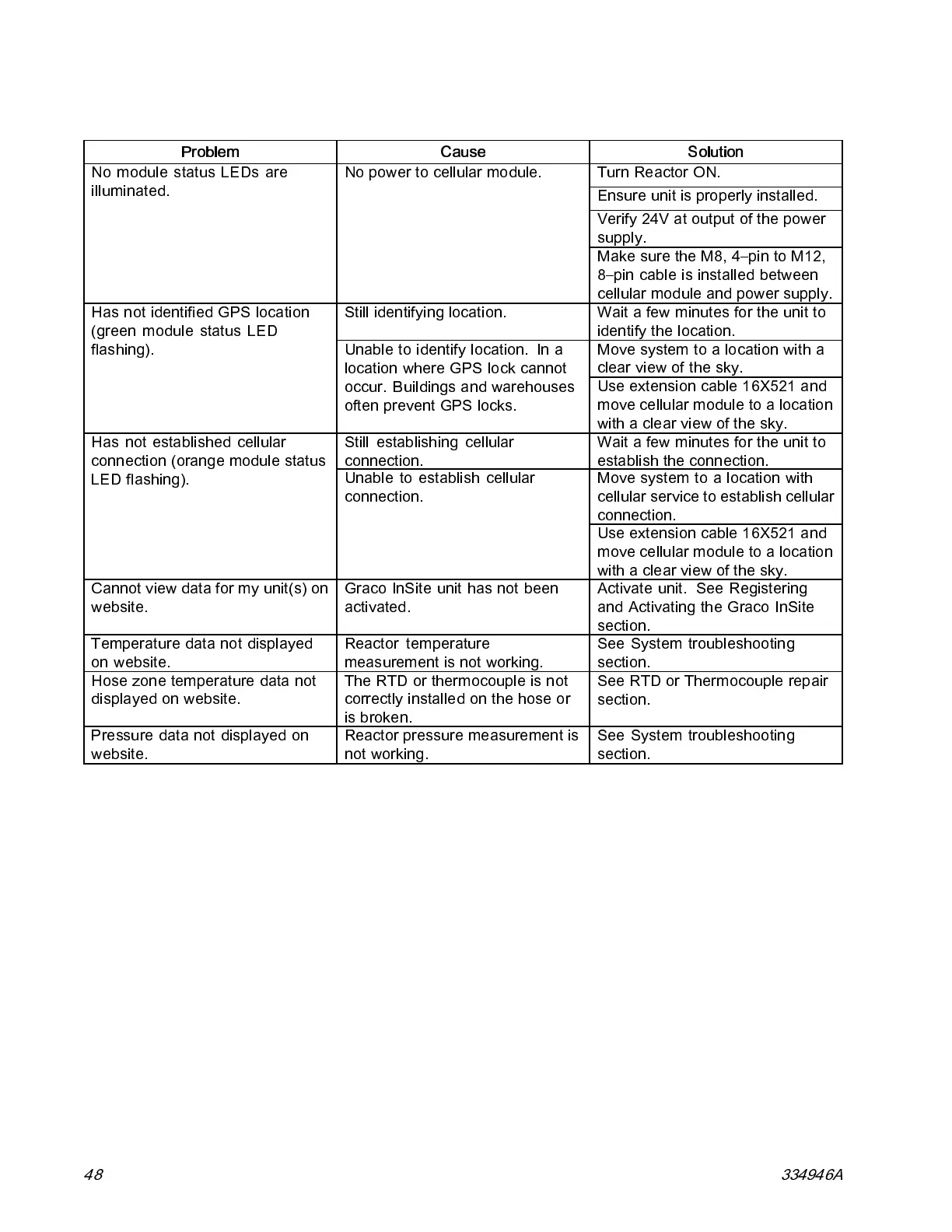

Troubleshooting
Graco InSite
Problem
Cause Solution
Turn Reactor ON.
Ensure unit is properly installed.
Verify 24V at output of the power
supply.
NomodulestatusLEDsare
illuminated.
No power to cellular module.
Make sure the M8, 4–pin to M12,
8–pin cable is installed between
cellular module and power supply.
Still identifying location. Wait a few minutes for the unit to
identify the location.
Move system to a location with a
clear view of the sky.
Has not identified GPS location
(green module status LED
flashing).
Unable to identify location. In a
location where GPS lock cannot
occur. Buildings and warehouses
often prevent GPS locks.
Use extension cable 16X521 and
move cellular module to a location
with a clear view of the sky.
Still es tablishing cellular
connection.
Wait a few minutes for the unit to
establish the connection.
Move system to a location with
cellular service to establish cellular
connection.
Has not established cellular
connection (orange m odule status
LED flashing).
Unable to establish cellular
connection.
Use extension cable 16X521 and
move cellular module to a location
with a clear view of the sky.
Cannot view data for my unit(s) on
website.
Graco InSite unit has not been
activated.
Activ ate unit. S ee Registeri ng
and Activ ati ng the Grac o InS ite
section.
Temperature data not displayed
on website.
Reactor temperature
measurement is not working.
See System troubleshooting
section.
Hose zone temperature data not
displayed on website.
The RTD or thermocouple is not
correctly installed on the hose or
is broken.
See RTD or Thermocouple repair
section.
Pressure data not displayed on
website.
Reactor pressure measurement is
not working.
See System troubleshooting
section.
48 334946A
