Graco Reactor 2 H-XP2 User Manual

Repair

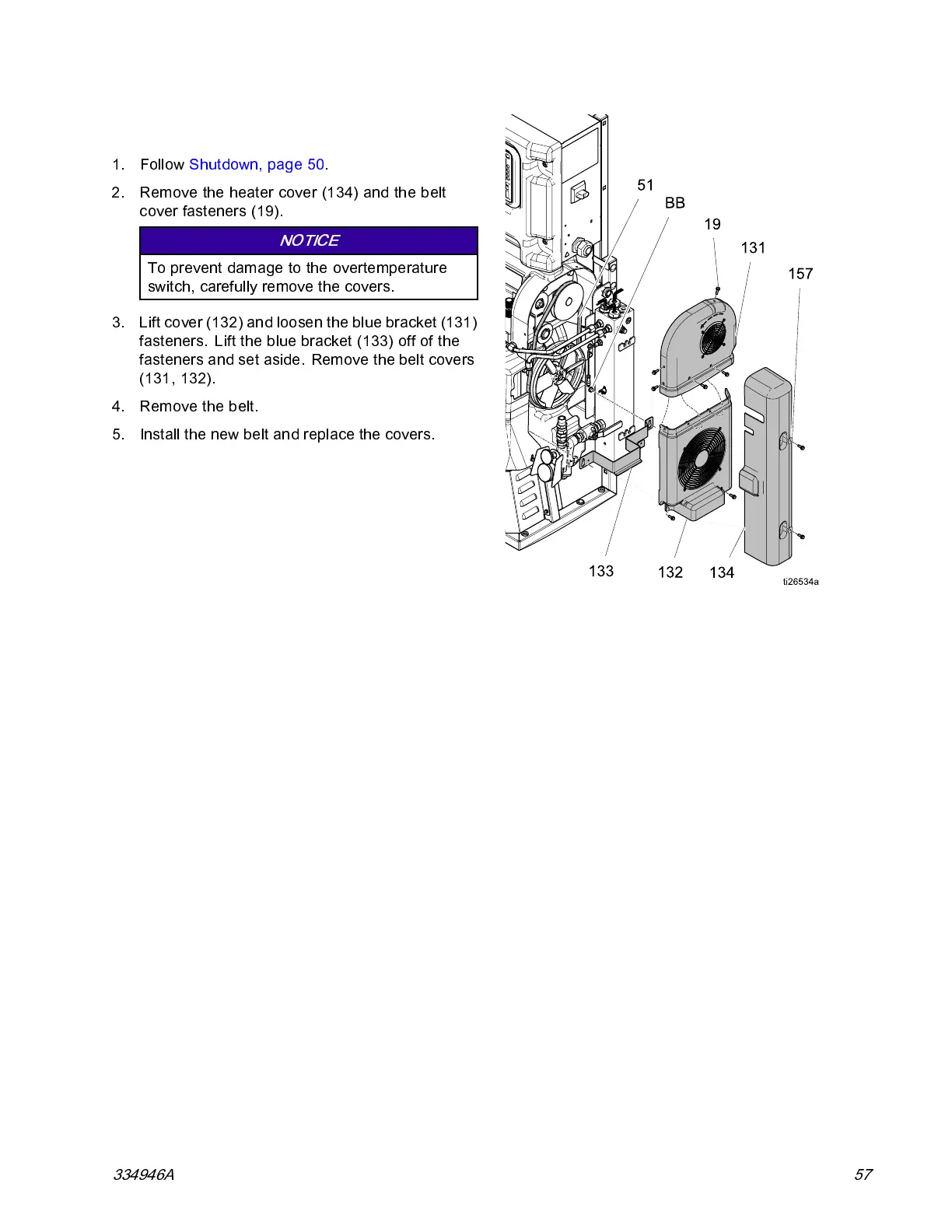

Replace Belt
1. Follow Shutdown, page 50.
2. Remove the heater cover (134) and the belt
cover fasteners (19).
NOTICE
To prevent damage to the overtemperature
switch, carefully remove the covers.
3. Lift cover (132) and loosen the blue bracket (131 )
fasteners. Lift the blue bracket (133) off of the
fasteners and set aside. Remove t he belt covers
(131, 132).
4. Remove the belt.
5. Install the new belt and replace the covers.
334946A 57
