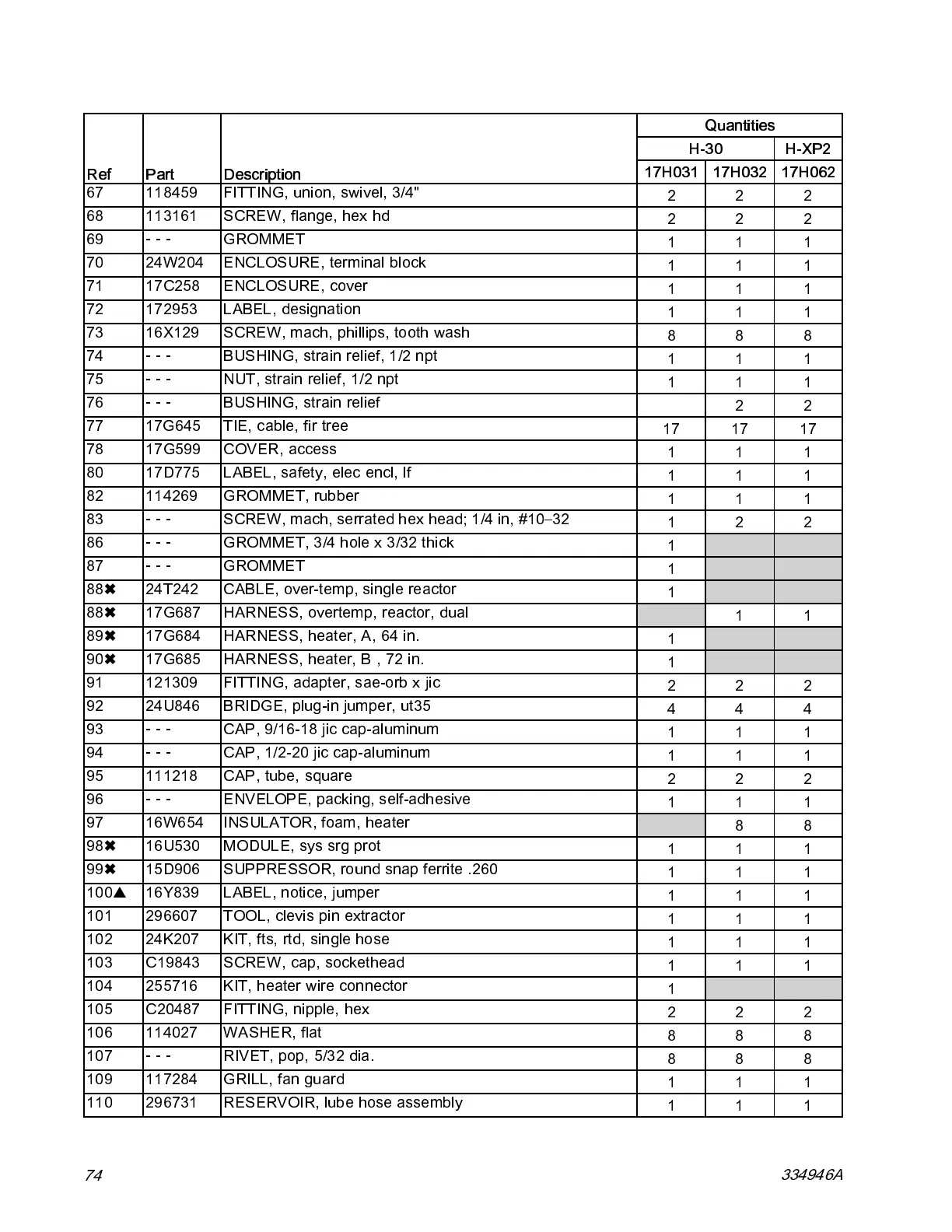

Parts
Quantities
H-30 H-XP2
Ref Part
Description
17H031 17H032 17H062
67 118459
FITTING, union, swivel, 3/4"
222
68 113161
SCREW, flange, hex hd
222
69
---
GROMMET
111
70 24W204
ENCLOSURE, terminal block
111
71
17C258 ENCLOSURE, cover
111
72 172953 LAB EL, designation
111
73 16X129
SCREW, ma ch, phillips, tooth wash
888
74
---
BUSHING, strain relief, 1/2 npt
111
75
---
NUT, strain relief, 1/2 npt
111
76
---
BUSHING, strain relief
22
77
17G645 TIE, cable, fir tree
17 17 17
78
17G599 COVER, access
111
80 17D775
LABEL, safety, elec encl, lf
111
82 114269
GROMMET, rubber
111
83
---
SCREW, mach, serrated hex head; 1/4 in, #10–32
122
86
---
GROMMET, 3/4 hole x 3/32 thick
1
87
---
GROMMET
1
88 ✖ 24T242
CABLE, over-temp, single reactor
1
88 ✖
17G687 HARNE SS, overtemp, reactor, dual
11
89 ✖
17G684 HARNE SS, heater, A, 64 in.
1
90 ✖
17G685 HARNE SS, heater, B , 72 in.
1
91 121309
FITTING, adapter, sae-orb x jic
222
92 24U846
BRIDGE, plug-in jumper, ut35
444
93
---
CAP , 9/16-18 jic cap-aluminum
111
94
---
CAP , 1/2-20 jic cap-aluminum
111
95 111218
CAP , tube, square
222
96
---
ENV ELOPE , packing, self-adhesive
111
97 16W654
INSULATOR, foam, heater
88
98 ✖ 16U530
MO DULE, sys srg prot
111
99 ✖ 15D906
SUPPRESSOR, round snap ferrite .260
111
100 ▲ 16Y839 LABE L, notice, jumper
111
101 296607
TOOL, clevis pin extractor
111
102 24K207
KIT, fts, rtd, single hose
111
103
C19843 SCREW, cap, sockethead
111
104 255716 KIT, heater wire connector
1
105
C20487 FITTING, nipple, hex
222
106 114027
WASHER, flat
888
107
---
RIVET, pop, 5/32 dia.
888
109 117284
GRILL, fan guard
111
110 296731
RESERVOIR, lube hose assembly
111
74
334946A
