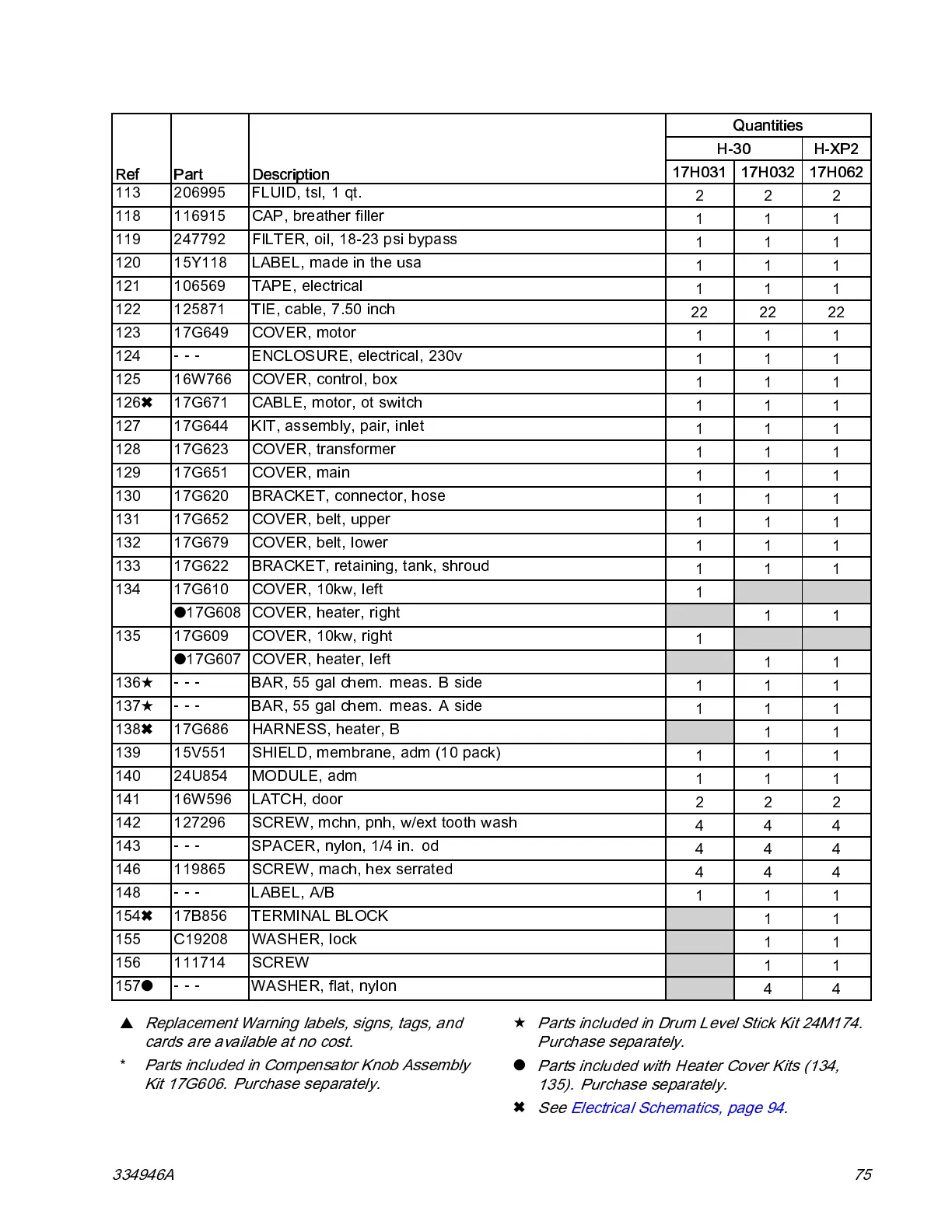

Graco Reactor 2 H-XP2 User Manual

Parts
Quantities
H-30 H-XP2
Ref Part
Description
17H031 17H032 17H062
113 206995 FLUID, tsl, 1 qt.
222
118 116915
CAP, breather filler
111
119 247792 FILTER, oil, 18-23 psi bypass
111
120 1 5Y 118 LABE L, made in the usa
111
121 106569 TAPE, electrical
111
122 125871 TIE, cable, 7.50 inch
22 22 22
123
17G649 COVER, motor
111
124
---
ENCLO SURE, electrical, 230v
111
125 16W766
COV ER, control, box
111
126 ✖
17G671 CABL E, motor, ot switch
111
127
17G644
KIT, assembly, pair, inlet
111
128
17G623 COVER, transformer
111
129
17G651 COVER, main
111
130
17G620 BR ACKET, connector, hose
111
131
17G652 COVER, belt, upper
111
132
17G679 COVER, belt, lower
111
133
17G622 B RACKET, retaining, tank, shroud
111
17G610 COVER, 10kw, left
1
134
● 17G608 COVER, heater, right
11
17G609 CO VER, 10kw, right
1
135
● 17G607 COVER, heater, left
11
136 
---
BAR, 55 gal chem. meas. B side
111
137 
---
BAR, 55 gal chem. meas. A side
111
138 ✖
17G686 HARNE SS , heater, B
11
139 15V551
SHIELD , membrane, adm (10 pack)
111
140 24U854
MODULE, adm
111
141 16W596
LATCH, door
222
142 127296
SCREW, mchn, pnh, w/ext tooth wash
444
143
---
SPACER , nylon, 1/4 in. od
444
146 119865
SCREW , mach, hex serrated
444
148
---
LABEL, A/ B
111
154 ✖ 17B856
TERMINAL BLO CK
11
155
C19208 WASHER, lock
11
156 111714
SCREW
11
157 ●
---
WASHER, flat, nylon
44
▲
Replacement Warning labels, signs, tags, and
cards are available at no cost.
* Parts included in Compensator Knob Assembly
Kit 17G606. Purchase separately.

Parts included in Drum Level Stick Kit 24M174.
Purchase separately.
●
Parts included with Heater Cover Kits (134,
135). Purc hase separately.
✖
See Electrical Schematics, page 94.
334946A 75
