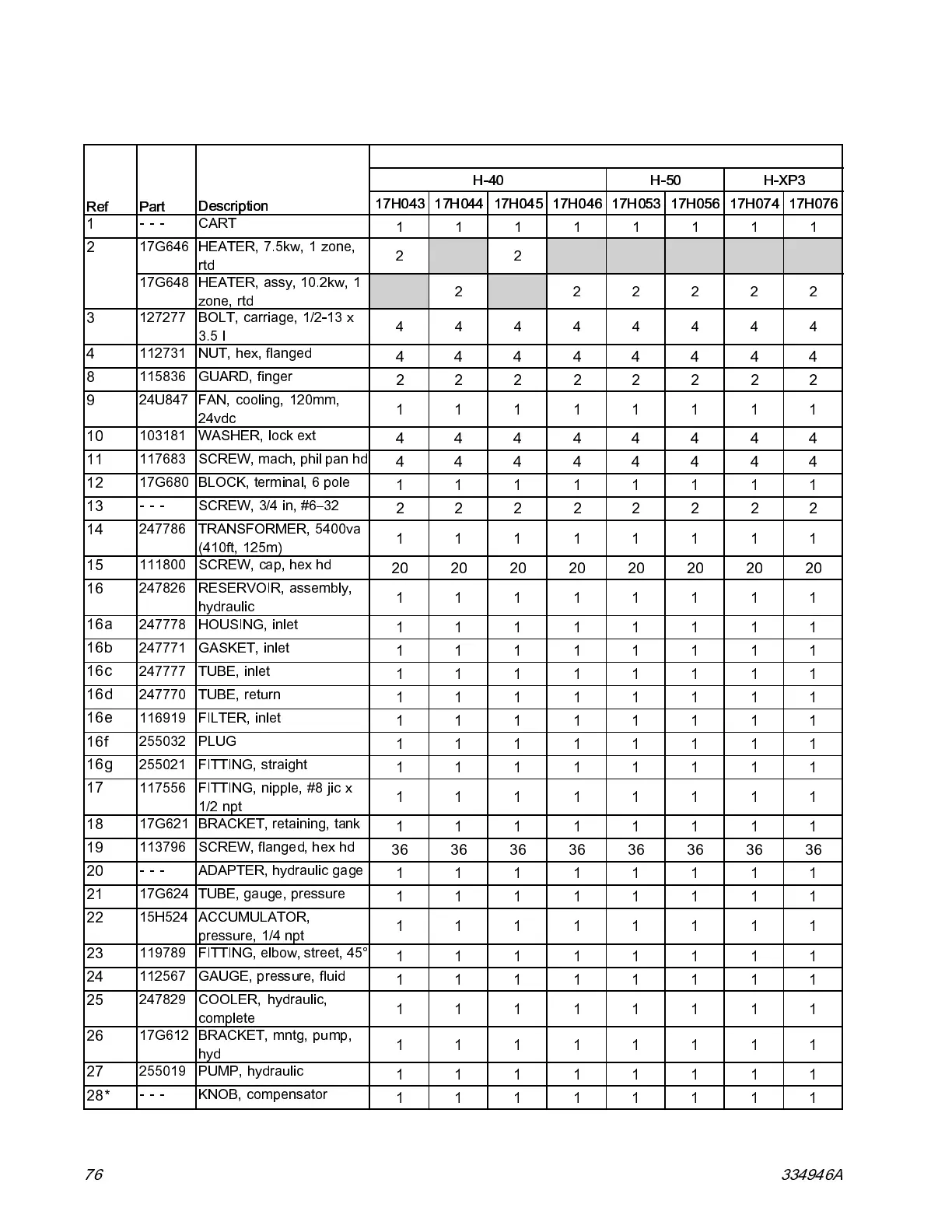

Parts
H-40, H-50, H-XP3
H-40 H-50 H-XP3
Ref Part
Description
17H043 17H044 17H045 17H046 17H053 17H056 17H074 17H076
1
---
CART
11111111
17G646 HEATER, 7.5kw, 1 zone,
rtd
22
2
17G648 HEATER, assy, 10.2kw, 1
zone, rtd
2 22222
3
127277 BOLT, carriage, 1/2-13 x
3.5 l
44444444
4
112731 NUT, hex, flanged
44444444
8
115836 GUARD, finger
22222222
9
24U847 FAN, cooling, 120mm,
24vdc
11111111
10
103181 WASHER, lock ext
44444444
11
117683 SCREW, mach, phil pan hd
44444444
12
17G680 BLOCK, terminal, 6 pole
11111111
13
---
SCREW, 3/4 in, #6–32
22222222
14
247786 TRANSFORMER, 5400va
(410ft, 125m)
11111111
15
11180
0
SCREW
, cap, hex hd
20 20 20 2 0 20 20 20 20
16
24782
6
RESER
VOIR, assembly,
hydra
ulic
11111111
16a
247778 HOUSING, inlet
11111111
16b
247771 GASKET, inlet
11111111
16c
247777 TUBE, inlet
11111111
16d
247770 TUBE, return
11111111
16e
116919 FILTER, inlet
11111111
16f
255032 PLUG
11111111
16g
255021 FITTING, straight
11111111
17
117556 FITTING, nipple, #8 jic x
1/2 npt
11111111
18
17G621 BRACKET, retaining, tank
11111111
19
113796 SCREW, flanged, hex hd
36 36 36 3 6 36 36 36 36
20
---
ADAPTER, hydraulic gage
11111111
21
17G624 TUBE, gauge, pressure
11111111
22
15H524 ACCUMULATOR,
pressure, 1/4 npt
11111111
23
119789 FITTING, elbow, street, 45°
11111111
24
112567 GAUGE, pressure, fluid
11111111
25
247829 COOLER, hydraulic,
complete
11111111
26
17G612 BRACKET, mntg, pump,
hyd
11111111
27
255019 PUMP, hydraulic
11111111
28*
---
KNOB, compensator
11111111
76 334946A
