Graco Reactor 2 H-XP2 User Manual

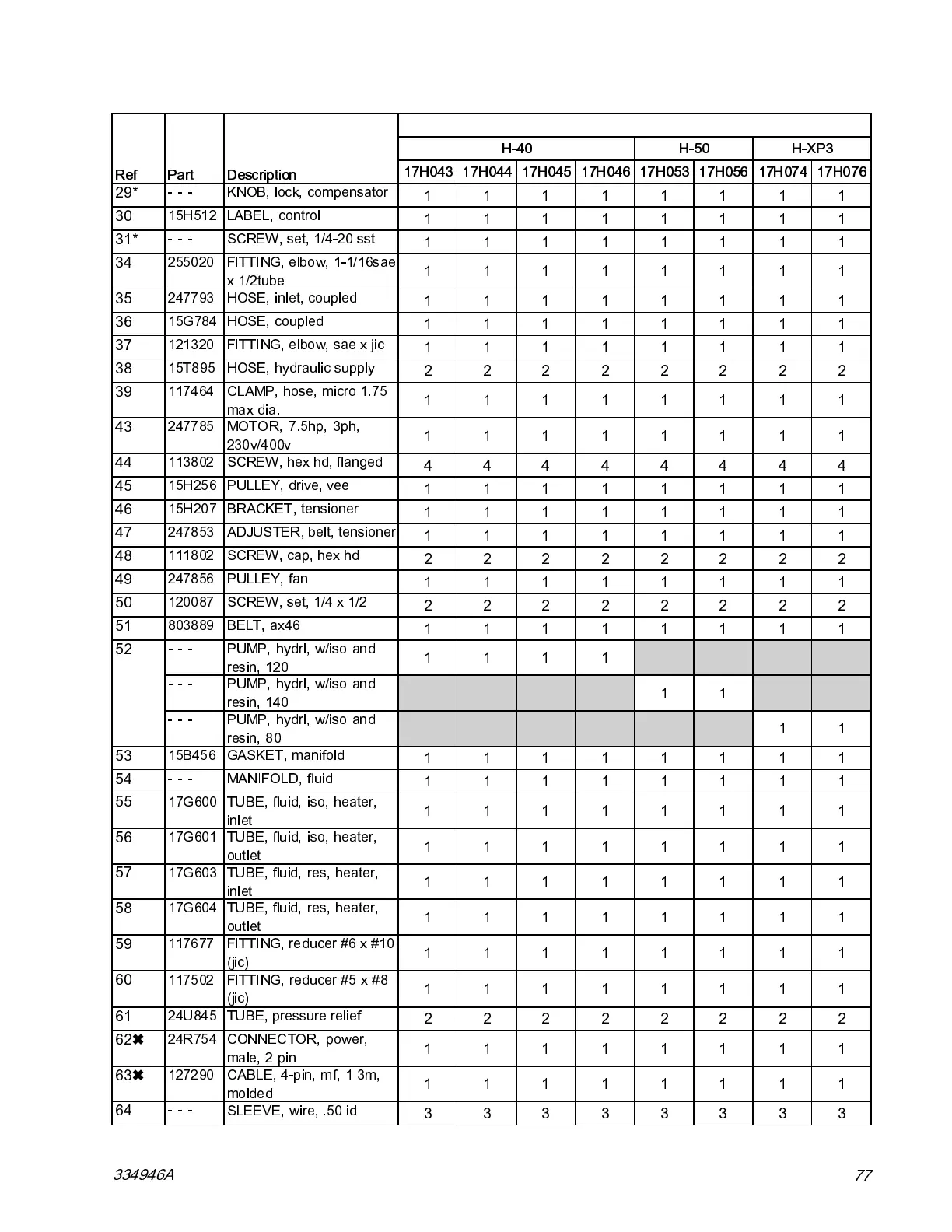

Parts
H-40 H-50 H-XP3
Ref Part
Description
17H043 17H044 17H045 17H046 17H053 17H056 17H074 17H076
29*
---
KNOB, lock, compensator
11111111
30
15H512 LABEL, control
11111111
31*
---
SCREW, set, 1/4-20 sst
11111111
34
255020 FITTING, elbow, 1-1/16sae
x 1/2tube
11111111
35
247793 HOSE, inlet, coupled
11111111
36
15G784 HOSE, coupled
11111111
37
121320 FITTING, elbow, sae x jic
11111111
38
15T895 HOSE, hydraulic supply
22222222
39
117464 CLAMP, hose, micro 1.75
max dia
.
11111111
43
247785 MOTOR, 7.5hp, 3ph,
230v/400v
11111111
44
113802 SCREW, hex hd, flanged
44444444
45
15H256 PULLEY, drive, vee
11111111
46
15H207 BRACKET, tensioner
11111111
47
247853 ADJUSTER, belt, tensioner
11111111
48
111802 SCREW, cap, hex hd
22222222
49
247856 PULLEY, fan
11111111
50
120087 SCREW, set, 1/4 x 1/2
22222222
51
803889 BELT, ax46
11111111
--- PUMP, hydrl, w/iso and
resin, 120
1111
--- PUMP, hydrl, w/iso and
resin, 140
11
52
---
PUMP, hydrl, w/iso and
resin, 80
11
53
15B456 GASKET, manifold
11111111
54
---
MANIFOLD, fluid
11111111
55
17G600 TUBE, fluid, iso, heater,
inlet
11111111
56
17G601 TUBE, fluid, iso, heater,
outlet
11111111
57
17G603 TUBE, fluid, res, heater,
inlet
11111111
58
17G604 TUBE, fluid, res, heater,
outlet
11111111
59
117677 FITTING, reducer #6 x #10
(jic)
11111111
60
117502 FITTING, reducer #5 x #8
(jic)
11111111
61
24U845 TUBE, pressure relief
22222222
62 ✖
24R754 CONNECTOR, power,
male, 2 pin
11111111
63 ✖
127290 CABLE, 4-pin, mf, 1.3m,
molded
11111111
64
---
SLEEVE, wire, .50 id
33333333
334946A
77
