Graco Reactor 2 H-XP2 User Manual

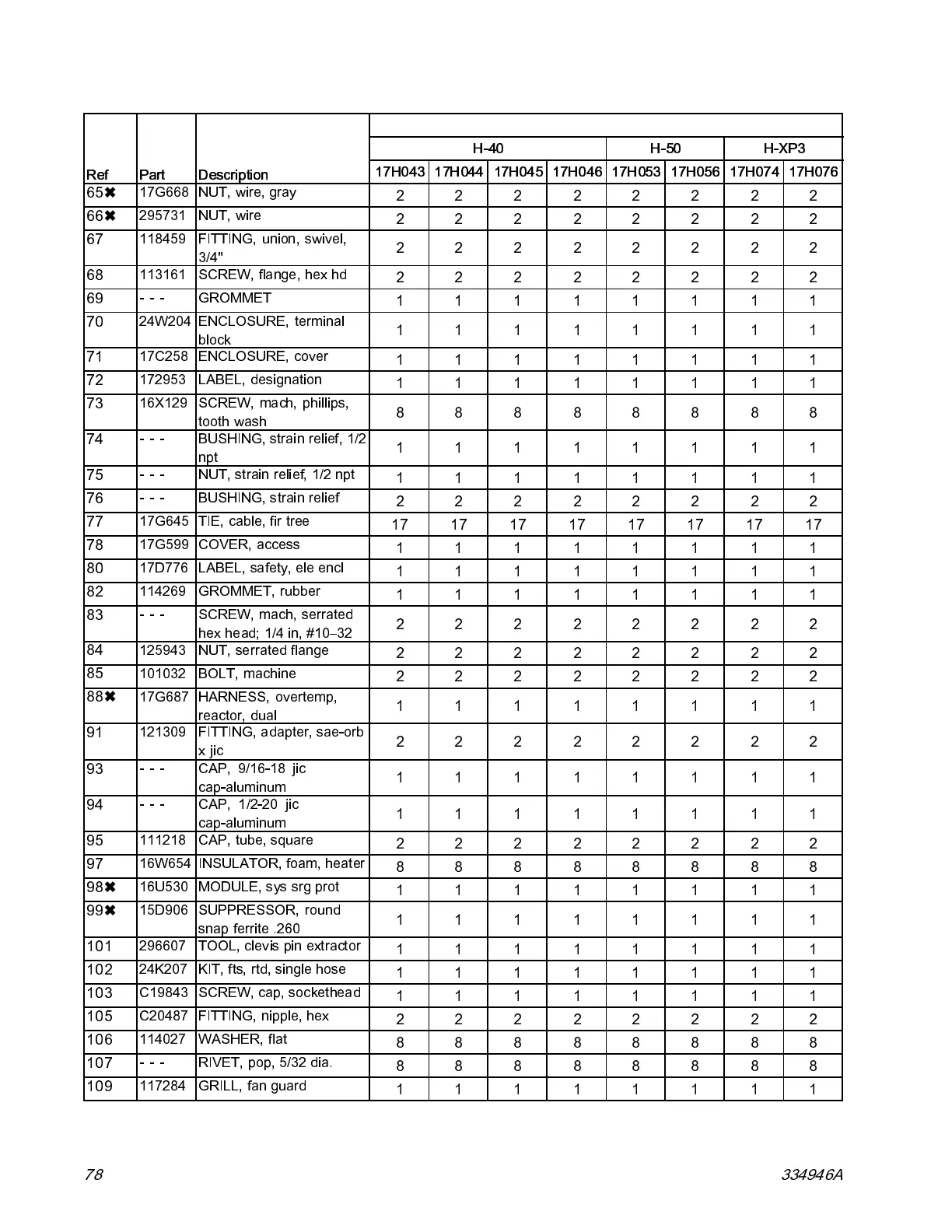

Parts
H-40 H-50 H-XP3
Ref Part
Description
17H043 17H044 17H045 17H046 17H053 17H056 17H074 17H076
65 ✖
17G668 NUT, wire, gray
22222222
66 ✖
295731 NUT, wire
22222222
67
118459 FITTING, union, swivel,
3/4"
22222222
68
113161 SCREW, flange, hex hd
22222222
69
---
GROMMET
11111111
70
24W204 ENCLOSURE, terminal
block
11111111
71
17C258 ENCLOSURE, cover
11111111
72
172953 LABEL, designation
11111111
73
16X129 SCREW, mach, phillips,
tooth wash
88888888
74
---
BUSHING, strain relief, 1/2
npt
11111111
75
---
NUT, strain relief, 1/2 npt
11111111
76
---
BUSHING, strain relief
22222222
77
17G645 TIE, cable, fir tree
17 17 17 1 7 17 17 17 17
78
17G599 COVER, access
11111111
80
17D776 LABEL, safety, ele encl
11111111
82
114269 GROMMET, rubber
11111111
83
---
SCREW, mach, serrated
hex head; 1/4 in, #10–32
22222222
84
125943 NUT, serrated flange
22222222
85
101032 BOLT, machine
22222222
88 ✖
17G687 HARNESS, overtemp,
reactor, dual
11111111
91
121309 FITTING, adapter, sae-orb
x jic
22222222
93
---
CAP, 9/16-18 jic
cap-aluminum
11111111
94
---
CAP, 1/2-20 jic
cap-aluminum
11111111
9
5
111218 CAP, tube, square
22222222
9
7
16W654 INSULATOR, foam, heater
88888888
9
8
✖
16U530 MODULE, sys srg prot
11111111
99 ✖
15D906 SUPPRESSOR, round
snap ferrite .260
11111111
101
296607 TOOL, clevis pin extractor
11111111
102
24K207 KIT, fts, rtd, single hose
11111111
103
C19843 SCREW, cap, sockethead
11111111
105
C20487 FITTING, nipple, hex
22222222
106
114027 WASHER, flat
88888888
107
---
RIVET, pop, 5/32 dia.
88888888
109
117284 GRILL, fan guard
11111111
78 334946A
