Graco Reactor 2 H-XP2 User Manual

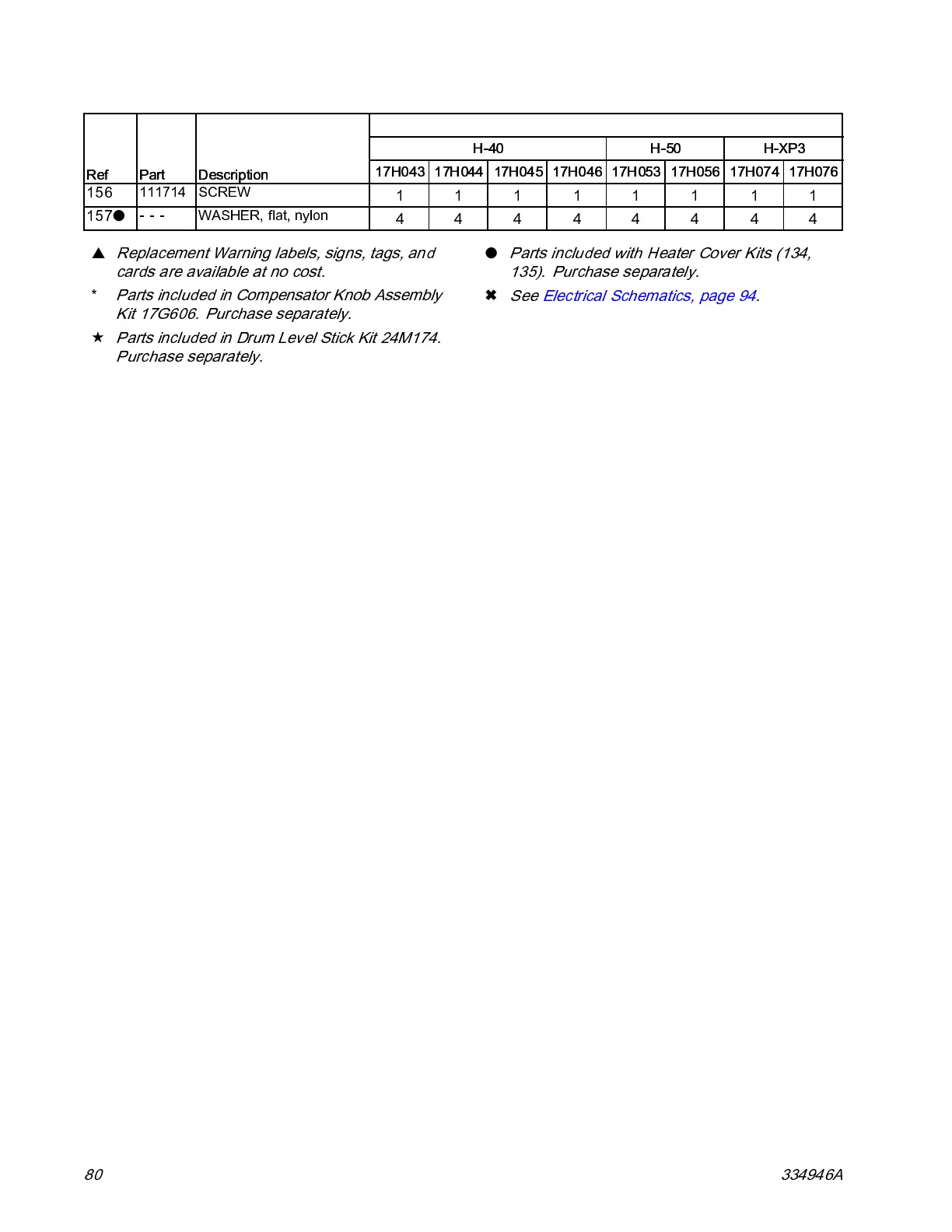

Parts
H-40 H-50 H-XP3
Ref Part
Description
17H043 17H044 17H045 17H046 17H053 17H056 17H074 17H076
156
111714 SCREW
11111111
157 ●
--- WASHER, flat, nylon
44444444
▲
Replacement Warning labels, signs, tags, and
cards are available at no cost.
* Parts included in Compensator Knob Assembly
Kit 1 7G 606 . Purchase separately.

Parts included in Drum Lev el Stick Kit 24M174.
Purchase separately.
●
Parts included with Heater Cover Kits (134,
135). Purchase separately.
✖
See Electrical Schematics, page 94.
80 334946A
