Hydraulic Reactor 2 Repair Spare Parts Reference
Hydraulic Reactor 2 Repair Spare Parts Reference

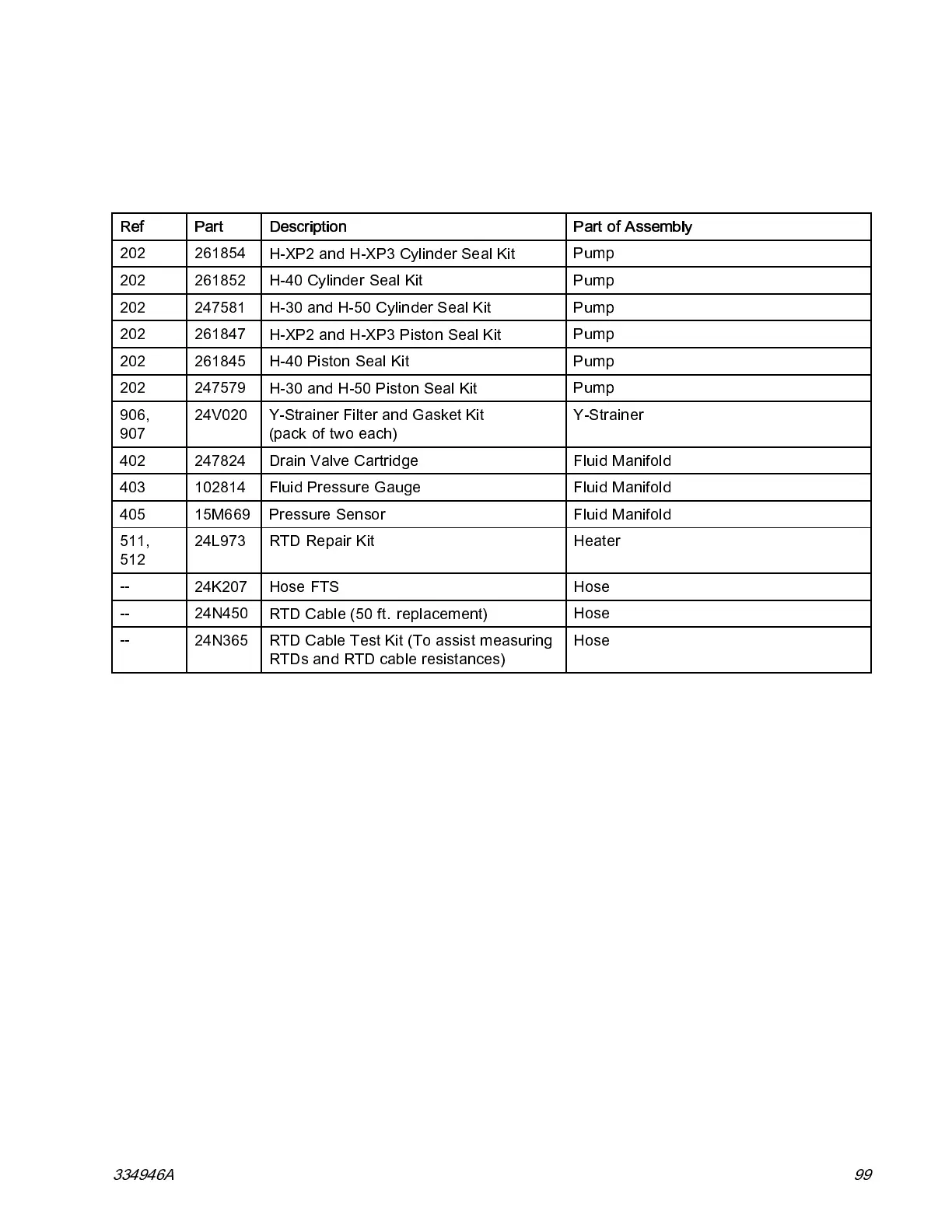

Recommended Common Spare Parts
Ref
Part Descr iption
PartofAssembly
202 261854
H-XP2 and H-XP3 Cylinder Seal Kit
Pump
202 261852
H-40 Cylinder Seal Kit
Pump
202 247581 H-30 and H-50 Cylinder Seal Kit Pump
202 261847
H-XP2 and H-XP3 Piston Seal Kit
Pump
202 261845
H-40 Piston Seal Kit
Pump
202 247579
H-30 and H-50 Piston Seal Kit
Pump
906,
907
24V020
Y-Strainer Filter and Gasket Kit
(pack of two each)
Y-Strainer
402 247824
Drain Valve Cartridge Fluid Manifold
403 102814 Fluid Pressure Gauge Fluid Manifold
405 15M669
Pressure Sensor Fluid Manifold
511,
512
24L973 RTD Repair Kit Heater
--
24K207
Hose FTS
Hose
--
24N450
RTD Cable (50 ft. replacement)
Hose
--
24N365 RTD Cable Test Kit (To assist measuring
RTDs and RTD cable resistances)
Hose
334946A 99
