Setup
Trailer Setup Guidelines
Route e xhaust s ystem away from combustible
materials to prevent materials from i gniting or gas
recirculation into a wall, ceiling, or a concealed
space. Provide exhau st system guards to prevent
burns.
NOTICE
Provide recomm ended size louvers. Failure to do
so can damage the engine and void the engine
warranty.
Exhaust pipes that pass through flammable ceilings
must be guarded by v ented metal thimbles that
extend at least 9 in. (228.6 mm) below and above
the roof and are at least 6 in. (152.4 mm) in diameter
larger than the exhaust pipe.
Exhaust pipes that pass through flammable wall s
must be guarded by either:
• Metal ventilated thimble at least 12 in. (305 mm)
larger than the diameter of the exhaust pipe.
• Metal or other approved fireproofing mate rials
that provides at least 8 in. (203 mm) of insulation
between the exha ust pipe and flammable material.
Exhaust pipes not covered above must have at least
9 in. (228.6 mm) of clearance from the outside of the
exhaust pipe to adjacent flammable materials.
1. Provide sufficient lighting to safely operate and
main tain system equipment.
2. Provide radiator exhaust for Reactor. Use a 400
in.
2
(25 8 ,06 4 mm
2
) minimum louver.
3. Provide air duct to connect radiator exhaust to
louver.
4. Provide a 400 in.
2
( 258, 064 mm
2
) minimum fresh
air intake louver near the generator.
5. Remove red exhaust cap.
6. Provide a mini mum 2 in. (50.8 mm) diameter
engine exhau st outlet with flexible pi pe element.
Provide rain cap, or equivalent routing, to prevent
moisture from entering the metal e xhaust pipe.

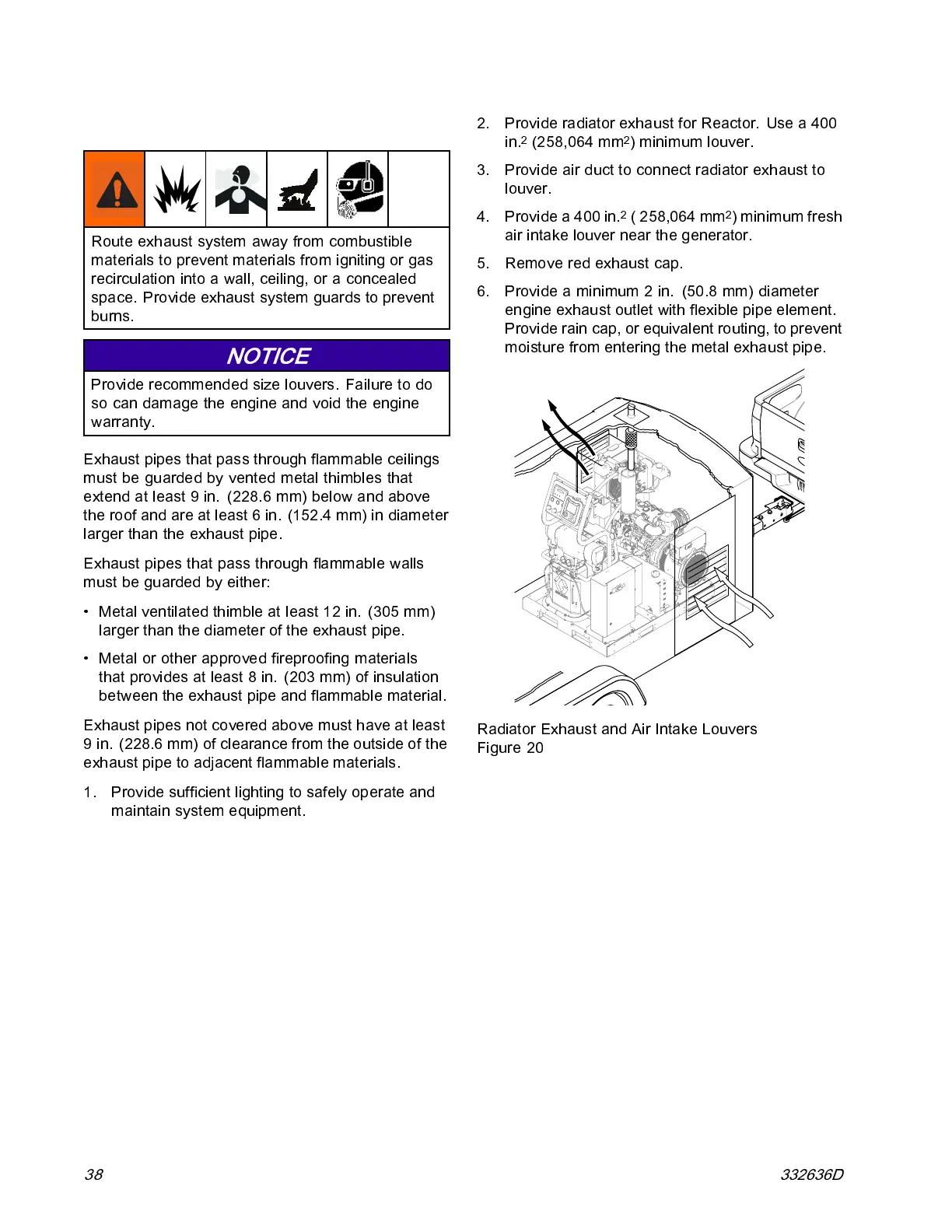

Radiator Exhaust and Air Intake Louvers
Figure 20
38 332636D
