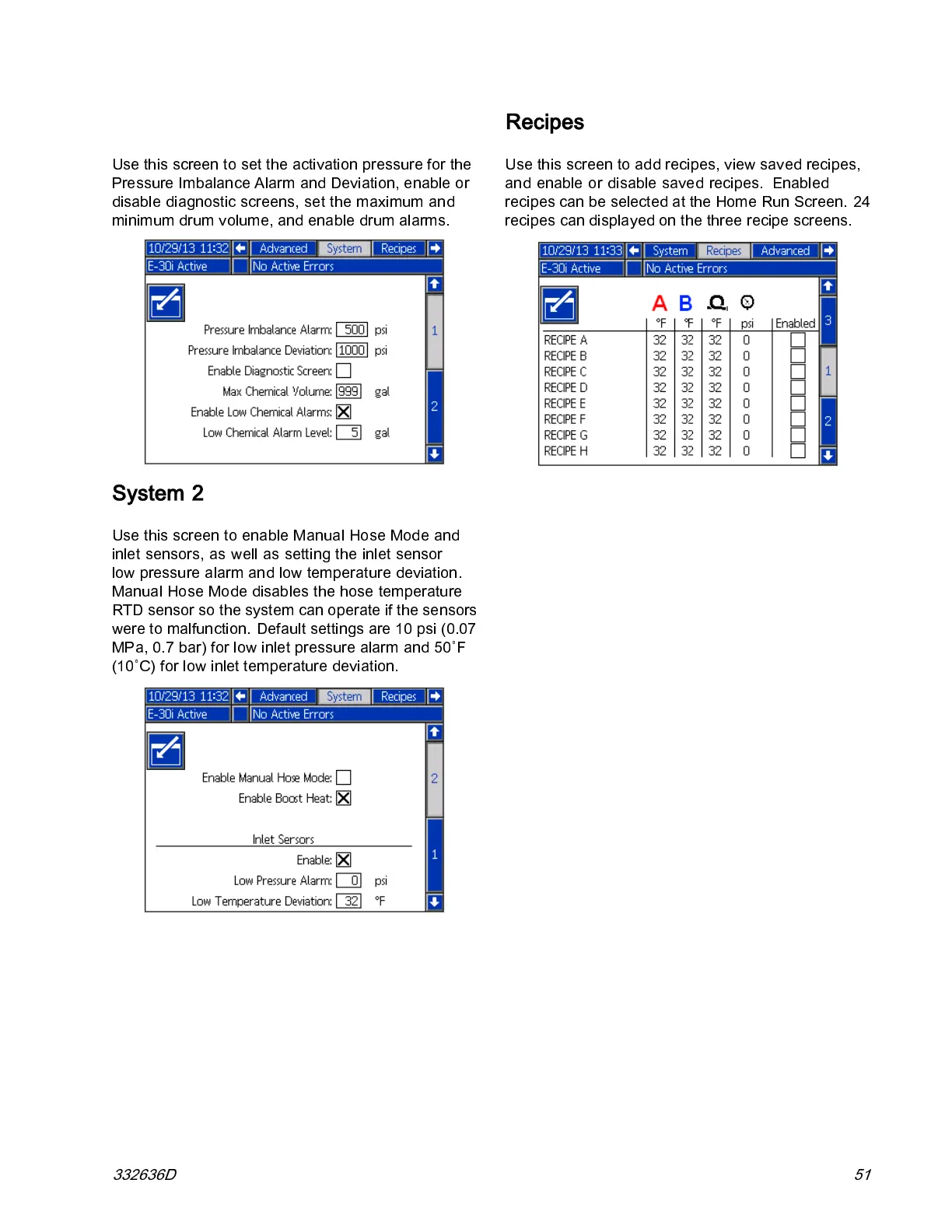

Operation
System 1
Use this screen to set the activation pressure for the
Pressure Imbalance Alarm and Deviation, enable or
disable diagnostic screens, set the maximum and
minimum drum volume, and enable drum alarms.
System 2
Use this screen to enable Manual Hose Mode and
inlet sensors, as well as setting the inlet sensor
low pressure alarm and low temperature deviation.
Manual Hose Mode disables the hose temperature
RTD sensor so the system can operate if the sensors
were to malfunction. Default settings are 10 psi (0.07
MPa, 0.7 bar) for low inlet pressure alarm and 50˚F
(10˚C) for low inlet tempe rature deviation.
Recipes
Use this screen to add recipes, view saved recipes,
and enable or disable saved recipes. Enabled
recipes can be selected at the Home Run Screen. 24
recipescandisplayedonthethreerecipescreens.
332636D 51
