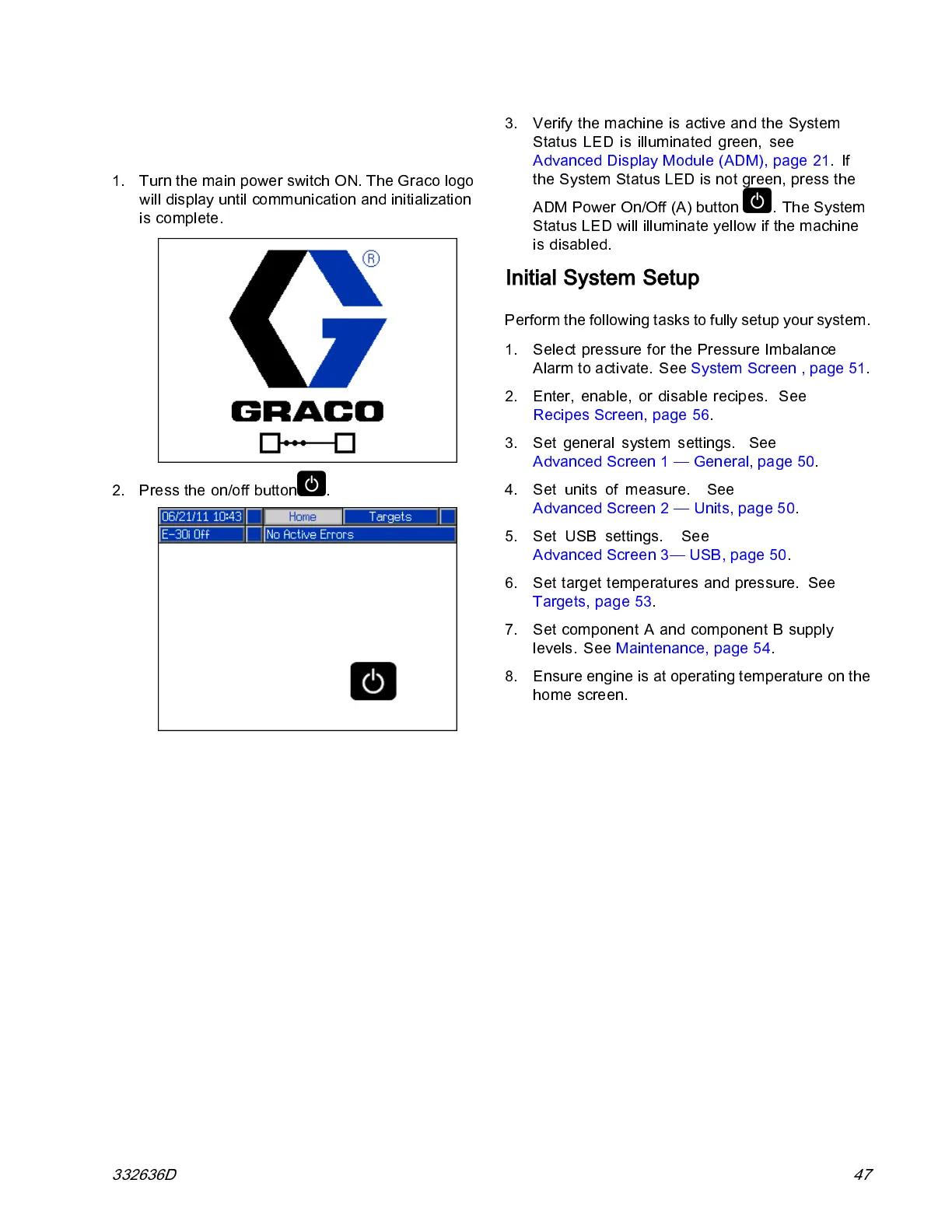

Operation
Operation
1. Turn the main power switch ON. The Graco logo
will display until communication and initialization
is complete.
2. Press the on/off button .
3. Verify the m achine is ac tive an d the System
Status LED is illuminated green, see
Advanced Display Module (ADM), page 21.If
the System Status LED is not green, press the
ADM Power On/Off (A) button
. The System
Status LED will illuminate yellow if the machine
is d isabled.
Initial System Setup
Perform the following tasks to fully setup your system.
1. Select pressure for the Pressure Imbalance
Alarm to activate. See System Screen , page 51.
2. Enter, enable, or disable recipes. See
Recipes Screen, page 56.
3. Set ge neral system settings. See
Advanced Screen 1 — General, page 50.
4. Set units of meas ure. See
Advanced Screen 2 — Units, page 50.
5. Set USB settings. See
Advanced Screen 3— USB, page 50.
6. Set target temperatures and pressure. See
Targets, page 53.
7. Set component A and component B supply
levels. See Maintenance, page 54.
8. Ensure engine is at operating temperature on the
home screen.
332636D
47
