Setup
20
311511G

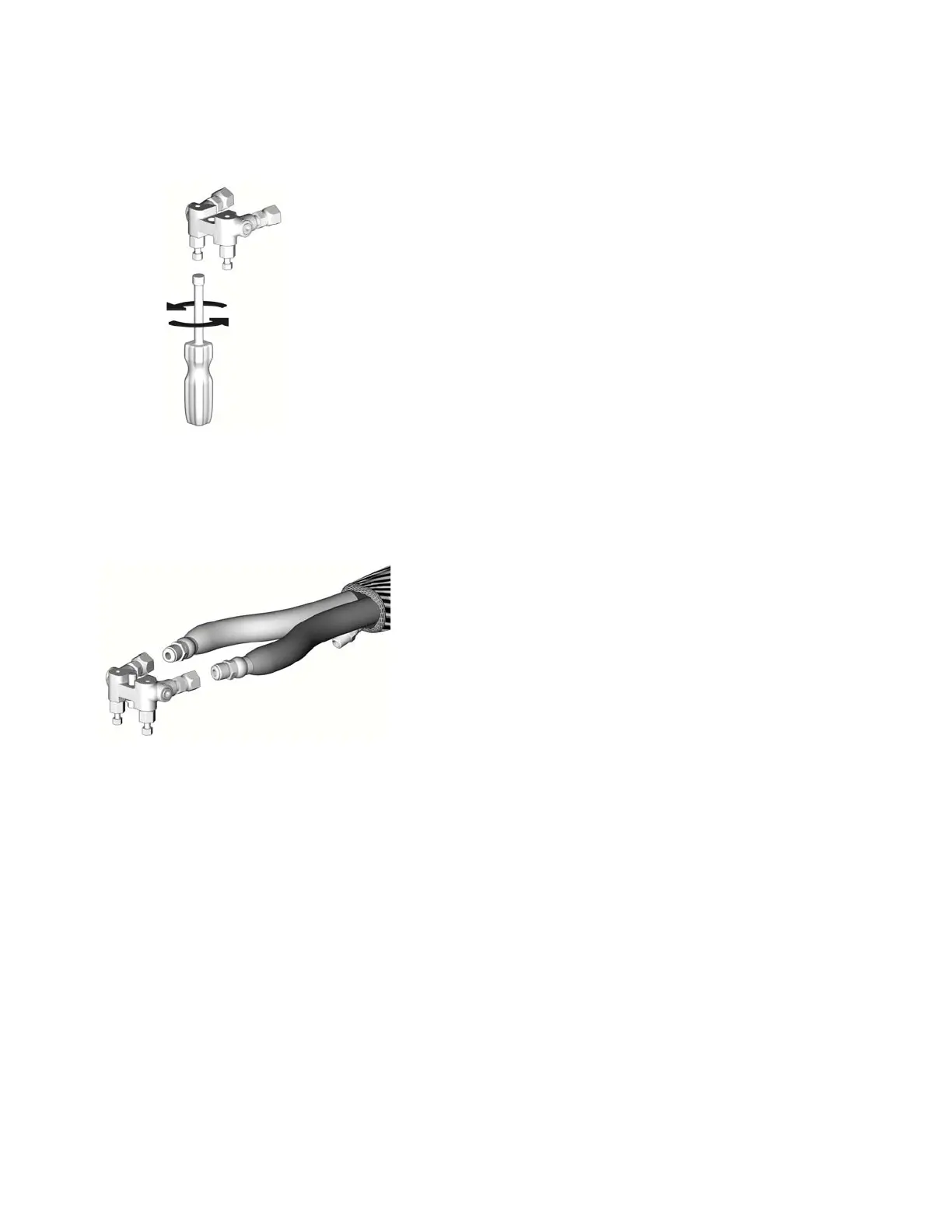

Close Gun Fluid Manif
old V
alves
A and B
Connect Whip Hose to Gun Fluid
Manif
old
Do not connect manif
old to gun.
Pressure Chec
k Hose
See hose manu
al. Pressure chec
k for
leaks. If n
o leaks,
wrap hose and electrical c
onnections to
protect from
damage.
ti2411a
ti2417a
19
21
Table of Contents
Related Manuals
2
Table of Contents
2
Systems
3
Warnings
4
Typical Installation, Without Circulation
7
Typical Installation, with Circulation
8
Moisture Sensitivity of Isocyanates
9
Foam Self-Ignition
9
Isocyanate Hazard
9
Keep Components a and B Separate
9
Changing Materials
9
Component Identification
10
Controls and Indicators
12
Pressure Relief Procedure
13
Flushing
13
Setup
14
Locate Reactor A-20
14
Determine Power Source
14
Electrical Requirements
14
Configure to Supply Power
15
Ground System
17
Iso Pump Lubrication System Setup
17
Fluid Supply Connections
17
Air Supply Connection
17
Connect FTS and Heated Dual Whip Hose
18
Recirculation / Pressure Relief Lines
19
Connect Heated Hose
19
Close Gun Fluid Manifold Valves a and B
20
Connect Whip Hose to Gun Fluid Manifold
20
Pressure Check Hose
20
Initial Startup
21
Fluid Temperature Sensor (FTS) Calibration
21
Load Fluid with Feed Pumps
21
Digital Temperature Controllers
22
Over Temperature Alarms
24
Fluid Heater Temperature Offset
24
Hose Heat Manual Mode
24
Supply Wet-Cups with Throat Seal Liquid
25
Spraying Setup
26
Spray Adjustments
27
Shutdown
28
Operation
29
Daily Start-Up Procedure
29
Fluid Circulation
31
Circulation through Reactor
31
Circulation through Gun Manifold
32
Maintenance
33
Technical Data
34
Graco Standard Warranty
36
Graco Information
36
