Important Isocyanate (ISO) Information
10 3A1570L

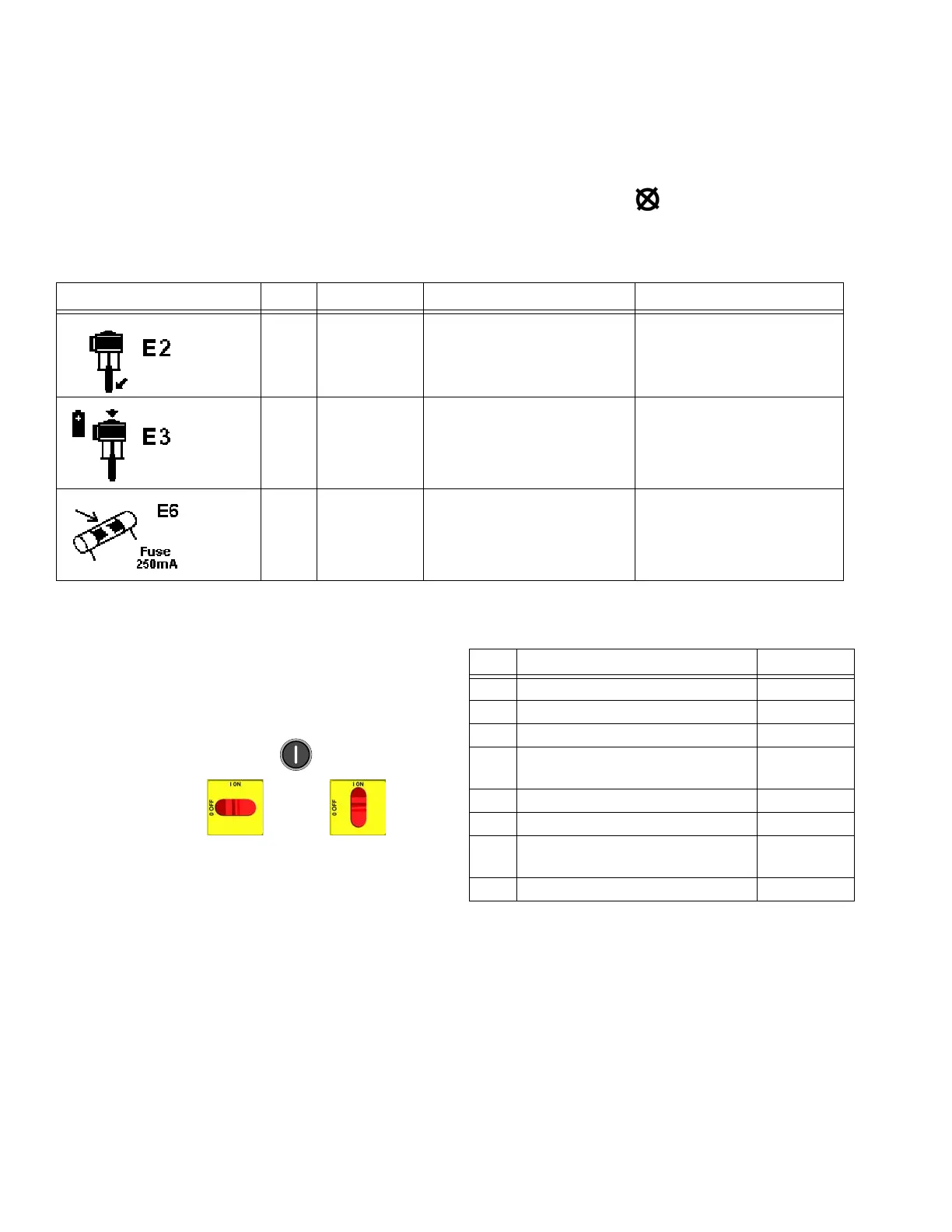

DataTrak Diagnostic Codes
DataTrak can diagnose several problems with the
pump. When the monitor detects a problem, the LED will
flash and a diagnostic code will appear on the display.
To acknowledge the diagnosis and return to the normal
operating screen, press once to wake up the dis-
play, and once more to clear the diagnostic code
screen.
Temperature Control Diagnostic Codes
Temperature control diagnostic codes appear on tem-
perature display.
These alarms turn off heat. E99 clears automatically
when communication is regained. Codes E03 through
E06 can be cleared by pressing . For other codes,
turn main power OFF then ON to
clear.
For hose zone only, if FTS is disconnected at startup,
display will show hose current 0A.
Symbol Code Code Name Diagnosis Cause
E-2 Diving Down Leak during downstroke. Worn intake valve.
E-3 Low Battery Battery voltage too low to
stop runaway.
Low battery. Replace bat-
tery; see page 39.
E-6 Blown Fuse Fuse is blown. Replace fuse;
see page 39.
•
Faulty solenoid or solenoid
wiring.
• Extreme temperatures
(above 140°F [60°C]).
Code Code Name Alarm Zone
01 High fluid temperature Individual
02 High zone current Individual
03 No zone current Individual
04 FTS or thermocouple discon-
nected
Individual
05 Control board over temperature Individual
06 Communication cable unplugged Individual
30 Momentary loss of communica-
tion
All
99 Loss of communication All
