Repair
26 309574C
Circuit Breaker Module
2. Relieve pressure, page 8.
3. Refer to electrical diagrams and to following table.
Disconnect wires and remove bad breaker.
4. Install new breaker and reconnect wires.
* Depending on model.
1. Turn main power OFF . Disconnect power
supply.
WARNING
Read warnings, page 5. Wait 5 min for stored voltage
to discharge (E-30 and E-XP2 models only).
Table 1: Circuit Breakers, see F
IG
. 6
Ref. No. Size Component
806 50 A Hose/Transformer
Secondary Side
817A 20 A Transformer
Primary
804A 25 or 40 A* Heater A
804B 25 or 40 A* Heater B
817B 20 A Motor/Pumps

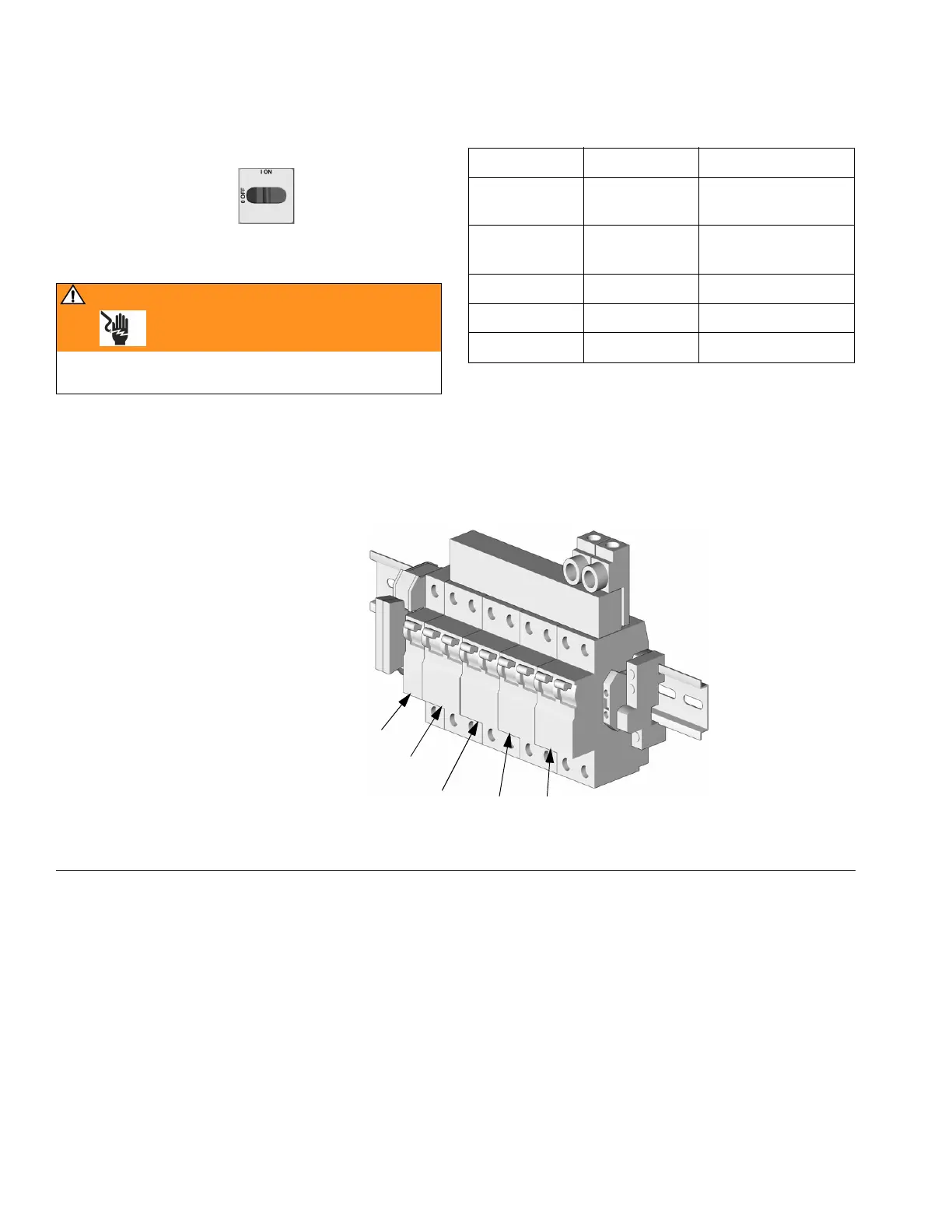

F
IG
. 6. Circuit Breaker Module
TI2514A
804A 817B
806
817A
NOTE:
To reference cables and con-
nectors, see the electrical diagrams and
the parts drawings on pages 57-59.
804B
