Graco Reactor E Series User Manual

Parts
56 309574C

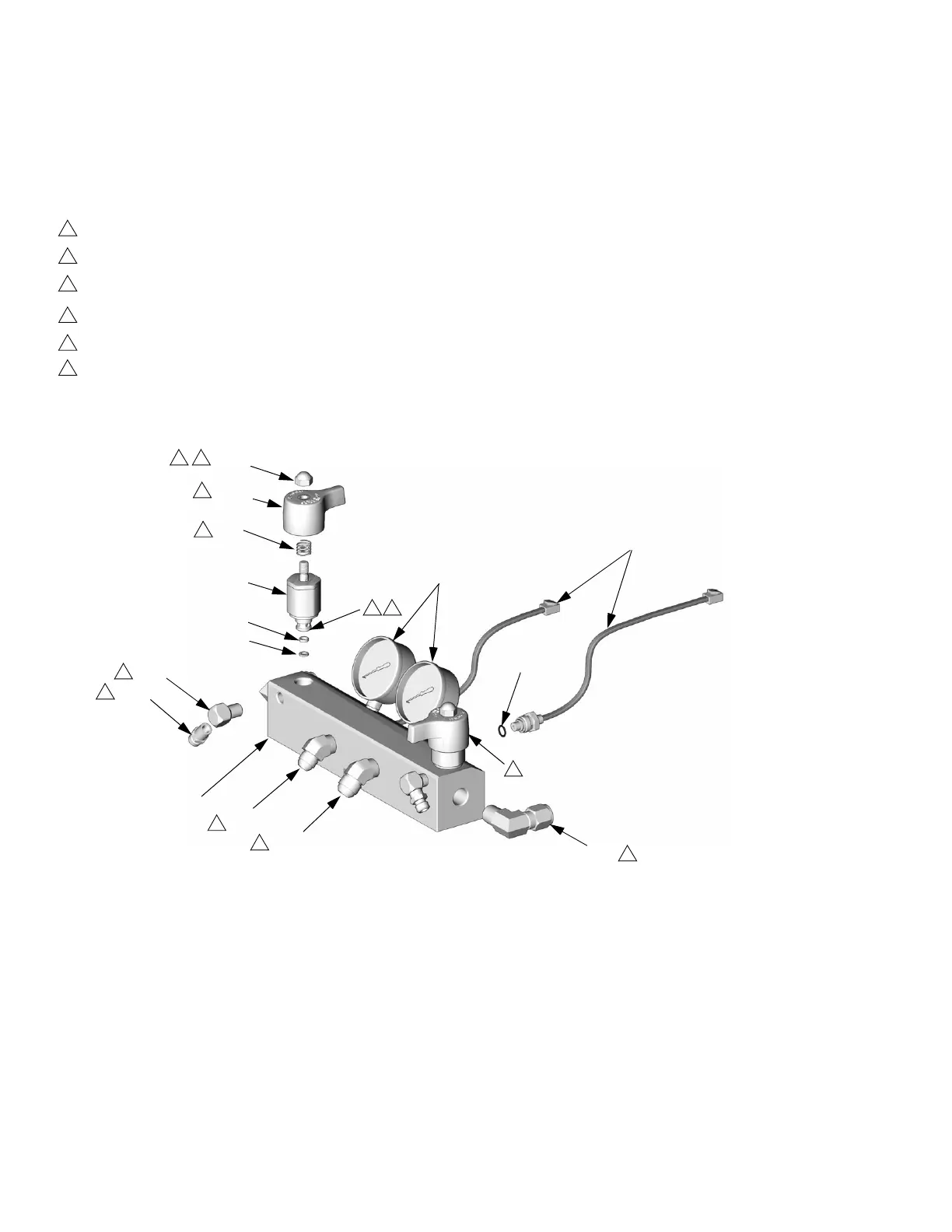

Fluid Manifold
246154 Fluid Manifold
* Included in Repair Kit 246842 (purchase separately).
▲
Replacement Warning labels, signs, tags, and cards
are available at no cost.
TI2573A
714
715
701
704
716
718
705
720
*711
*709
*702
*710
*707
*708
706
1
1
Apply 113500 thread lock (blue).
1
Torque to 355-395 in-lb (40.1-44.6 N•m).
2
Apply tape or thread sealant to tapered threads.
3
Torque to 175-195 in-lb (19.8-22.0 N•m).
4
Lubricate ends of spring when assembling.
5
2
3
4
5
Assemble valves (702) and handles (709) with
handles facing away from each other.
6
6
6
3
3
3
3
Ref.
No. Part No. Description Qty
701 15B332 MANIFOLD; aluminum 1
702* 246161 VALVE, pressure relief/spray 2
704 102814 GAUGE; 5000 psi (35 MPa, 350 bar) 2
705 162453 NIPPLE; 1/4 npt x 1/4 npsm 2
706 246123 TRANSDUCER, pressure control 2
707* 193709 SEAT, valve; carbide 2
708* 193710 SEAL, seat; nylon 2
709* 15B287 HANDLE, valve 2
710* 114708 SPRING 2
711* 117623 NUT, cap; 3/8-16 2
714 117556
ELBOW,
45°
; #8 JIC x 1/2 npt
1
715 117557
ELBOW,
45°
; #10 JIC x 1/2 npt
1
716 117532 ELBOW; 1/2 npt(m) x 1/2 in. (13 mm)
OD tube
2
718 100840 ELBOW, street; 1/4 npsm x 1/4 npt 2
720 111457 O-RING; 2
721
▲
189285 LABEL, caution 1
Ref.
No. Part No. Description Qty
PTFE
PTFE
