Graco Reactor E Series User Manual

Parts
48 309574C

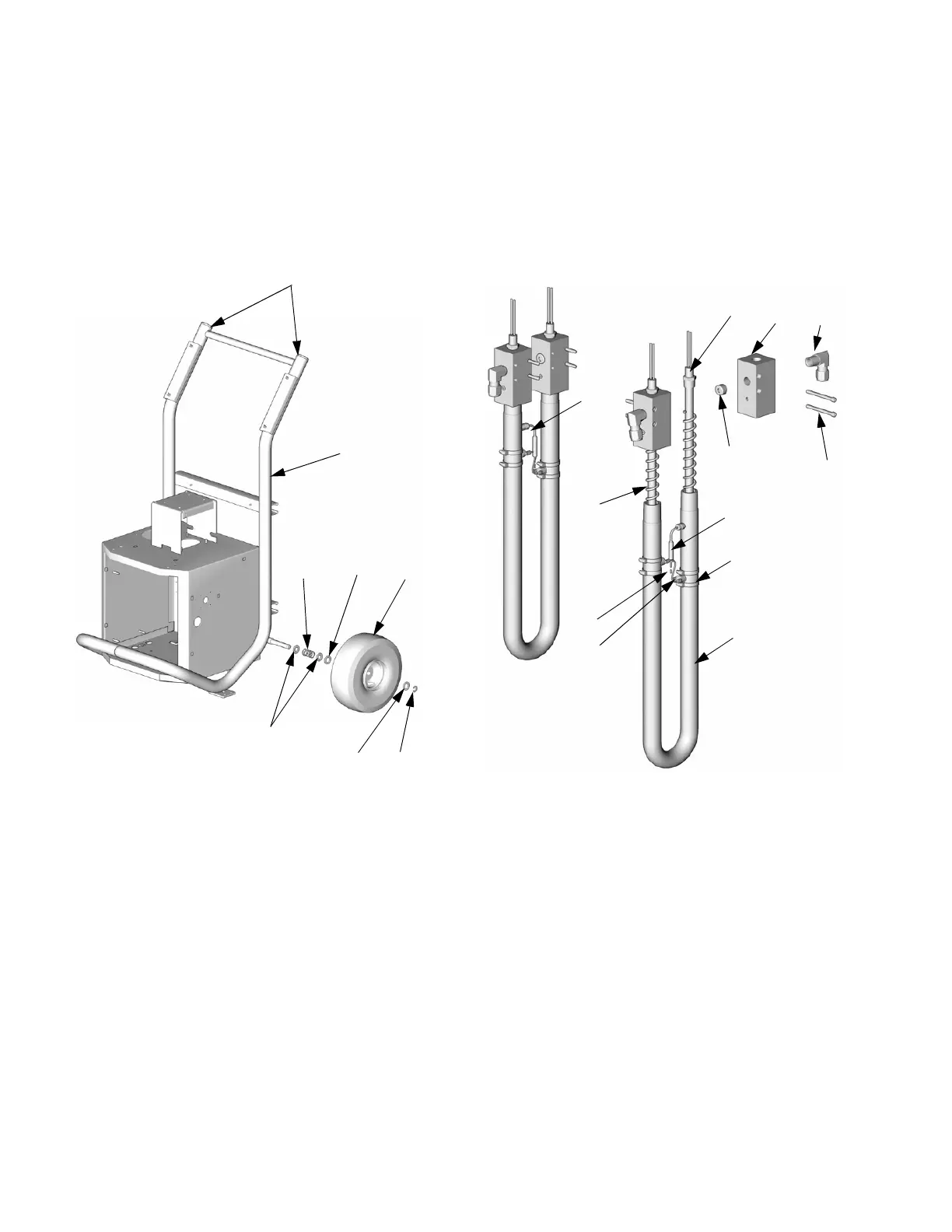

Reactor Frame
245954 Frame
Fluid Heater
245962 10.2 kW Heater, for E-30 and E-XP1
Reactor
Ref.
No. Part No. Description Qty
901 246204 FRAME 1
902 116478 WHEEL 2
903 101242 RING, retaining 2
904 116477 WASHER, flat; nylon 4
905 112125 PLUG 2
906 116411 SPRING 2
907 154636 WASHER, flat 4
905
901
906
904
902
907
904
903
TI2513A
Ref.
No. Part No. Description Qty
201 15B134 HOUSING 2
202 15B135 MIXER 4
203 118426 CLAMP 8
205 15B132 MANIFOLD 4
206 107218 SCREW 8
207 15B138 HEATER, immersion; 2550 W; 230v 4
208 15B137 SWITCH, overtemperature 4
210 100361 PLUG 4
211 117484 SENSOR, temperature 2
101
201
203
208
202
211
206
100205207
210
TI2512A
211
