Graco Reactor E Series User Manual

Parts
309574C 49

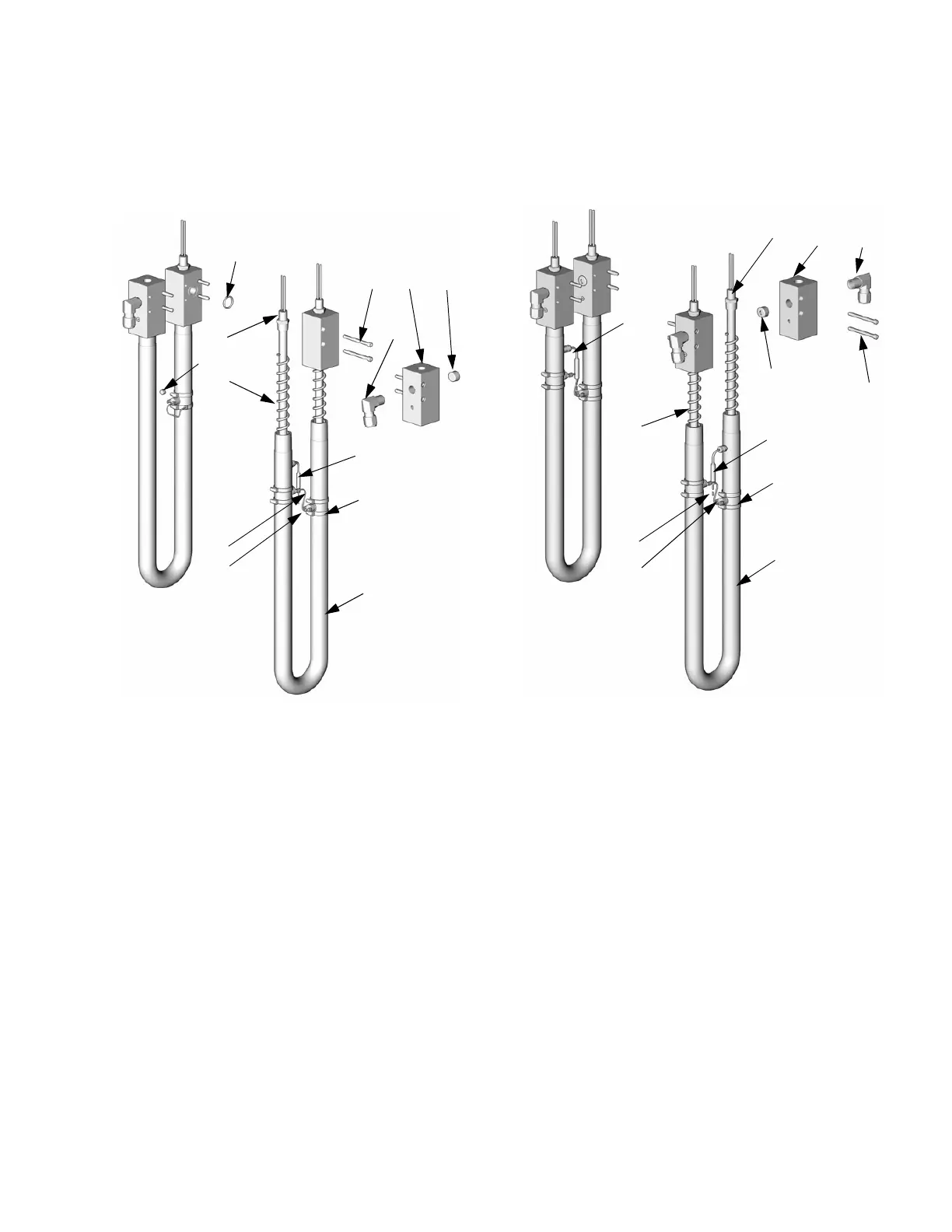

245963 7.65 kW Heater, for E-XP2 Reactor
(2 required)
245975 6 kW Heater, for E-20 Reactor
Ref.
No. Part No. Description Qty
201 15B134 HOUSING 2
202 15B135 MIXER 3
203 118426 CLAMP 6
204 15B133 CROSSOVER 2
205 15B132 MANIFOLD 2
206 107218 SCREW 8
207 15B138 HEATER, immersion;
2550 W; 230v
3
208 15B137 SWITCH, overtemperature 3
209 100139 PLUG 1
210 100361 PLUG 3
211 117484 SENSOR, temperature 1
212 117466 O-RING 1
101
201
203
208
202
211
206
209
100
205
207
210
TI2578A
212
Ref.
No. Part No. Description Qty
201 15B134 HOUSING 2
202 15B135 MIXER 4
203 118426 CLAMP 8
205 15B132 MANIFOLD 4
206 107218 SCREW 8
207 15B140 HEATER, immersion;
1500 W; 230v
4
208 15B137 SWITCH, overtemperature 4
210 100361 PLUG 4
211 117484 SENSOR, temperature 2
101
201
203
208
202
211
206
100205207
210
TI2512A
211
