Graco Reactor E Series User Manual

Parts
52 309574C

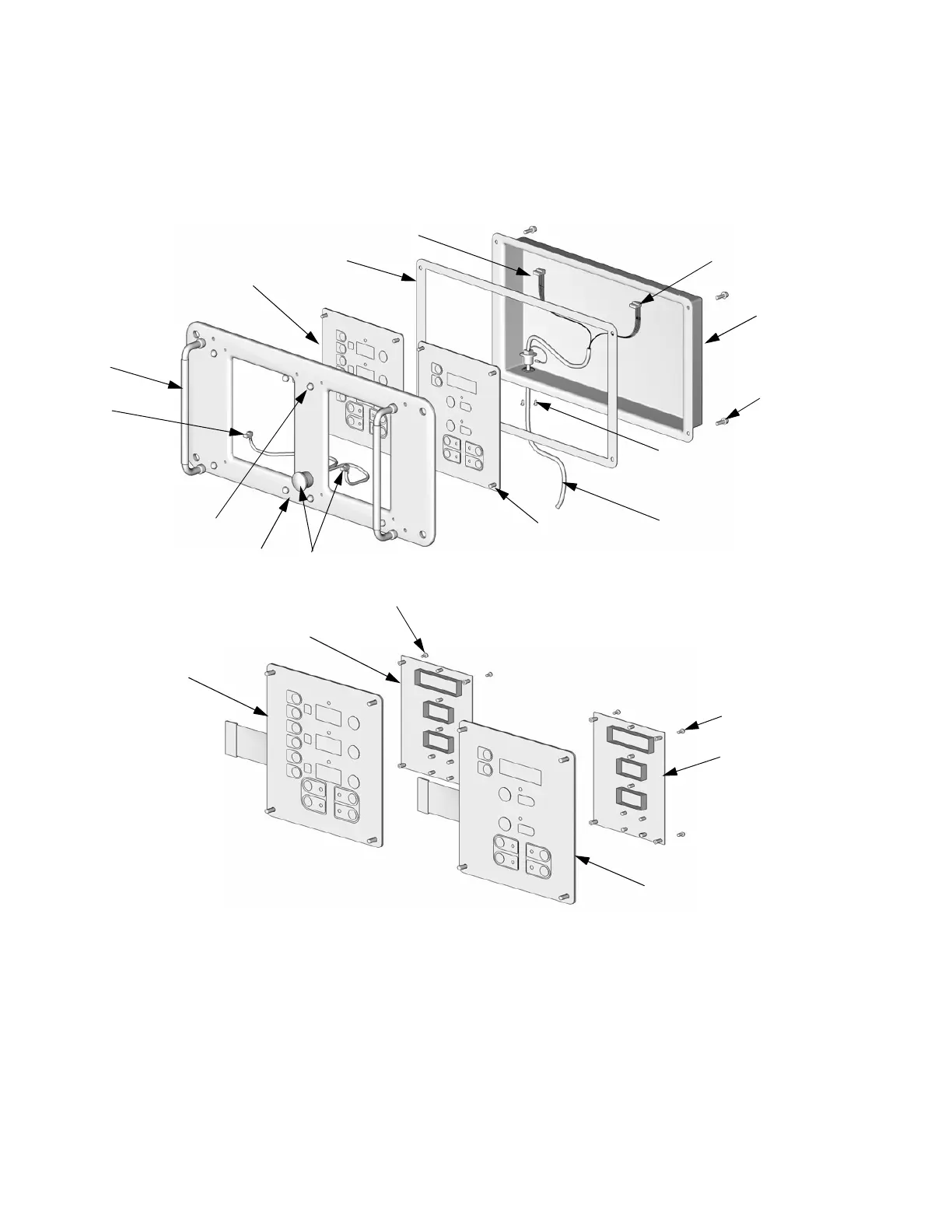

Display
245974 Display
TI2574A
402
401
403
404
405
406
407
408
410
411
412
406
411
TI3172a
20
401a
401c
401b
402b
402c
402a
Ref.
No. Part No. Description Qty
401 245978 DISPLAY, pressure; includes
401a-401c
1
401a 246130 . BOARD, circuit 1
401b 246478 . SWITCH, membrane 1
401c 112324 . SCREW 4
402 245977 DISPLAY, temperature; includes
402a-402c
1
402a 246130 . BOARD, circuit 1
402b 246479 . SWITCH, membrane 1
402c 112324 . SCREW 4
403 15B293 GASKET 1
404 15B292 COVER 1
405 15B291 PLATE 1
406 246287 HARNESS, wire, red stop button 1
407 117499 HANDLE 2
408 117523 NUT, cap; 10-24 8
410 111393 SCREW, machine, pan-hd; M5 x 0.8;
16 mm
4
411 15B386 CABLE, display 1
412 195853 SCREW, machine; M2.5 x 6 2
Ref.
No. Part No. Description Qty
