Graco Reactor H-XP3 Elite User Manual

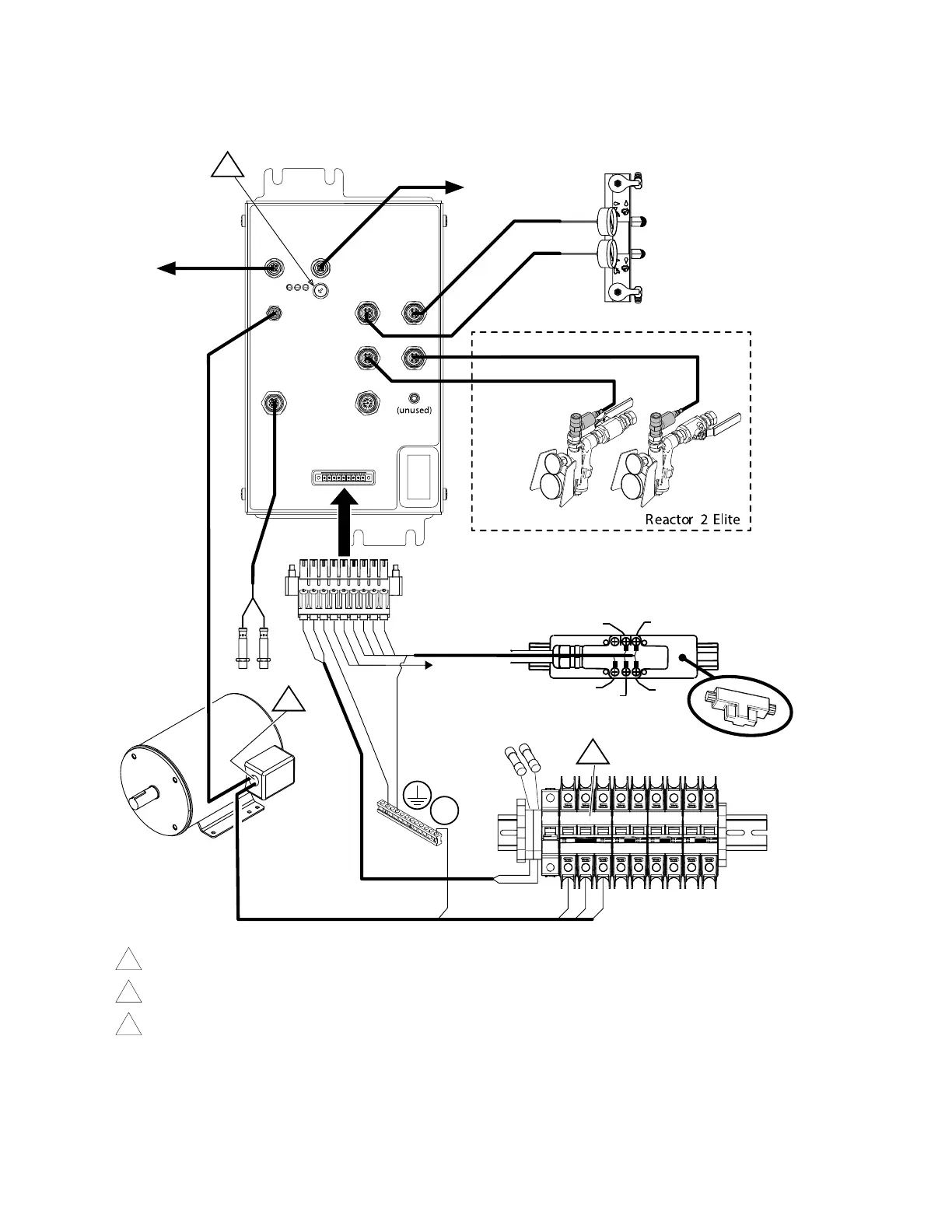

ElectricalSchematics
HCM HCM
HCM
Schematic Schematic
Schematic
To TCM
CB11 CB12 CB13 CB14 CB15
HOSE
MOTOR A HEAT B HEAT TRANS
PE
1
Ground
Bar 17G653
For 3 phase Motor: 17G688 / For Single phase Motor: 17G693
To CT01
17G689
Motor Power
Motor Over Temperature Switch
16W130
16W130
B Inlet
A Inlet
To Power Supply
24R735
127068
A Pressure Transducer
B Pressure Transducer
Fluid Manifold
B Inlet Pressure /
Temperature Transducer
A Inlet Pressure /
Temperature Transducer
WHITE
ORANGE
GREEN
BLACK
RED
17G670
91
17G671
24Y263
HCM
17G605
17G669
17G690
3
2
ti26608b
17G667
1
SeeReplaceHCM,page70forsettingtherotary
switchposition.
2
Connecttheblueandbrownwirestothemotor
over-temperaturewiresinsidethemotorjunctionbox.
3
ThreepoleversionofCB12shown.H-30andH-XP2
usesatwopoleversionofCB12.
334946H 105
