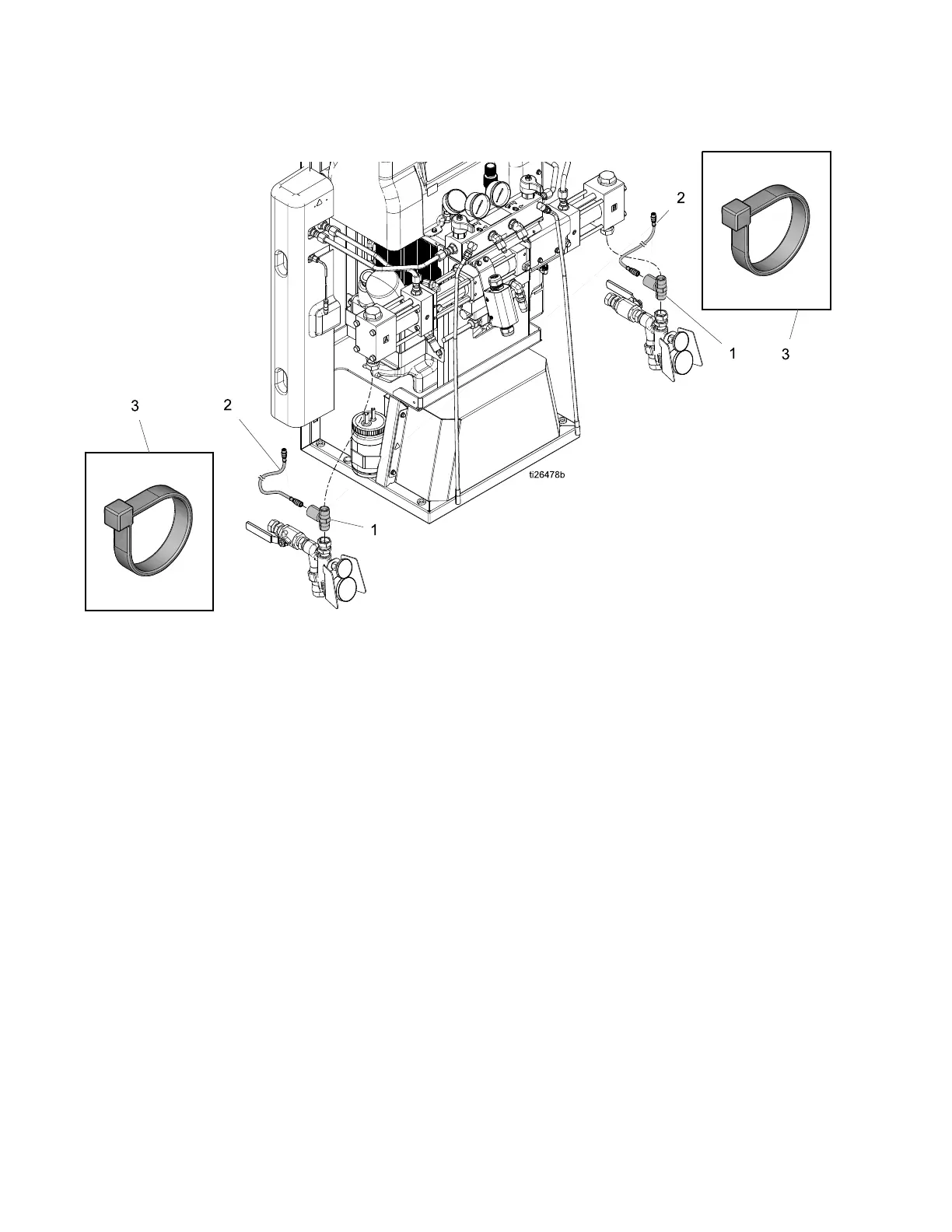

Parts
Inlet Inlet
Inlet
Sensor Sensor
Sensor
Kit Kit
Kit
17F837 17F837
17F837
Ref. Ref.
Ref.
Part Part
Part
Description Description
Description
Qty. Qty.
Qty.
1
––––
ASSEMBLY,transducer;
includes1aand1b
2
1a624545
FITTING,nipple,pipe
2
1b24U851
TRANSDUCER,
includesfoam
2
216W130
CABLE,M125p,fxm,
2.0m
2
3125871TIE,cable,7.5in.8
