Graco Reactor H-XP3 Elite User Manual

Repair
Replace Replace
Replace
RTD RTD
RTD
1.PerformShutdown,page48.
2.Waitforheatertocool.
3.Removeheatercovers.
4.Cutcabletiesaroundthewovenwrapwiththe
RTDcable(512).
5.DisconnectRTDcable(512)fromTCM(453).
6.Loosenferrulenut(N).RemoveRTD(512)from
heaterhousing(501),thenremoveRTDhousing
(H).Donotremovetheadapter(206)unless
necessary.Ifadaptermustberemoved,ensure
thatmixer(510)isoutofthewaywhenreplacing
theadapter.
7.RemoveRTDcable(512)fromwovenwrap.
8.ReplaceRTDcable(512).
a.ApplyPTFEtapeandthreadsealanttomale
pipethreadsandtightenRTDhousing(H)
intoadapter(506).
b.PushinRTD(512)sotipcontactsheater
element(508).
c.HoldingRTD(512)againstheaterelement,
tightenferrulenut(N)3/4turnpast
󰘰nger-tight.
9.Routewires(S)asbeforethroughwovenwrap
andreconnectRTDcable(512)totheTCM.
10.Replaceheatercovers.
11.Followstartupinstructionsintheoperation
manual.TurnonAandBheatsimultaneously
totest.Temperaturesshouldriseatsamerate.
Ifoneislow,loosenferrulenut(N)andtighten
RTDhousing(H)toensureRTDtipcontacts
theheaterelement(212)whenferrulenut(N)is
retightened.

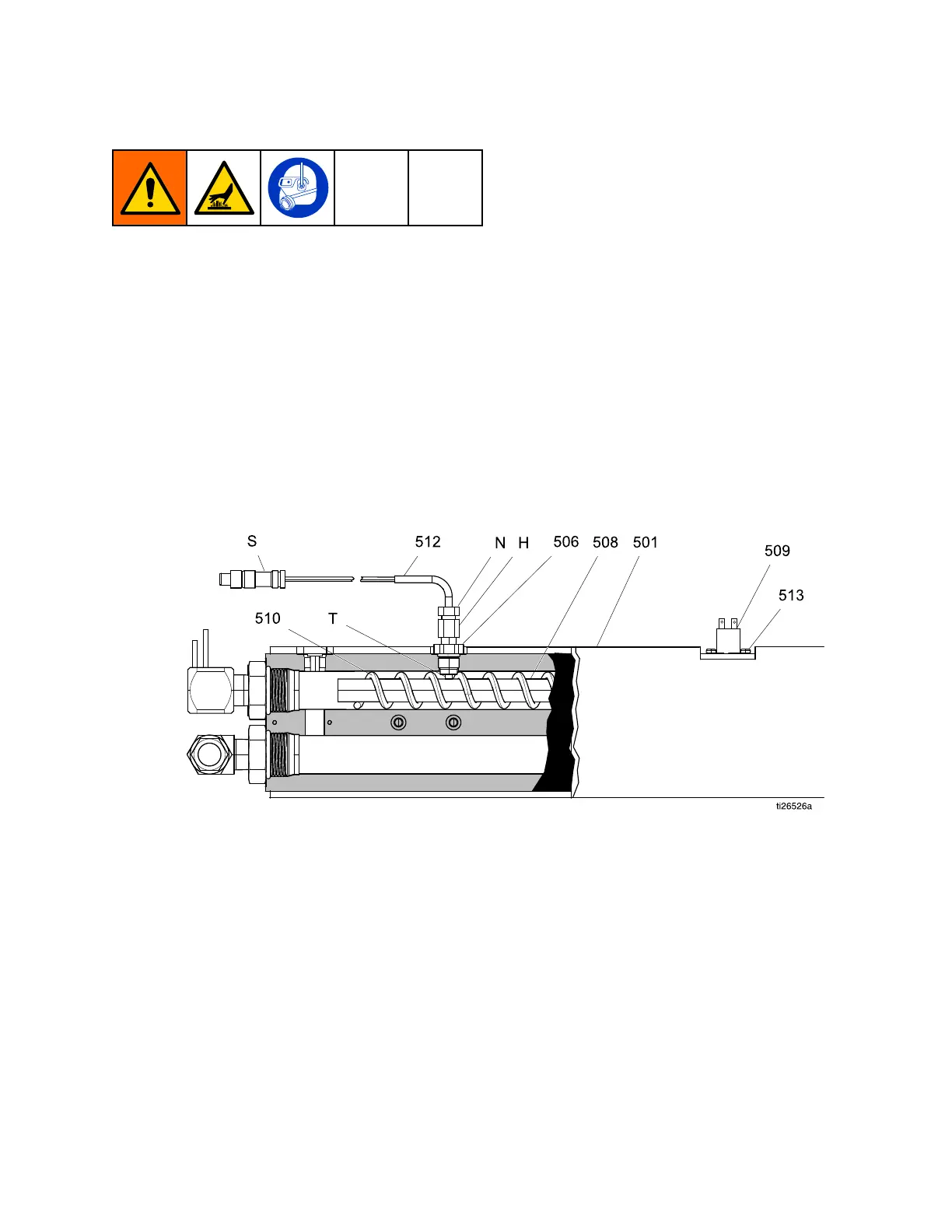

Figure7
334946H 61
