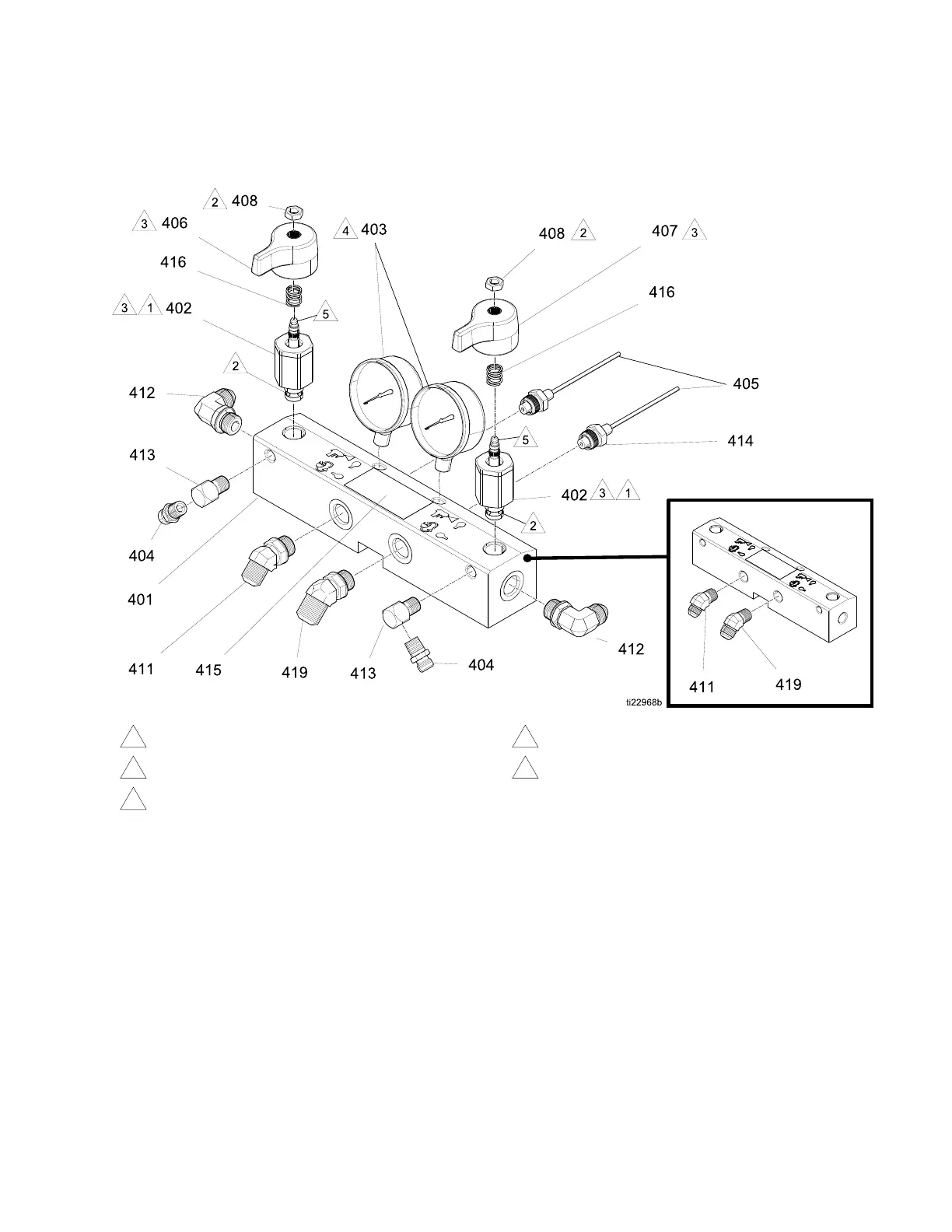

Parts
Fluid Fluid
Fluid
Manifold Manifold
Manifold
24U844 24U844
24U844
1
Torqueto355–395in.-lbs(40–44.6N●m)
2
Applysealant(113500)tothreads.
3
Valvemustbeclosedwithhandlepositionas
shownondrawing.
4
ApplyPTFEtapeandthreadsealanttogauge
threads.
5
Applygreaseonvalve.
**
ApplyPTFEtapeorthreadsealanttotapered
threads.
334946H 89
