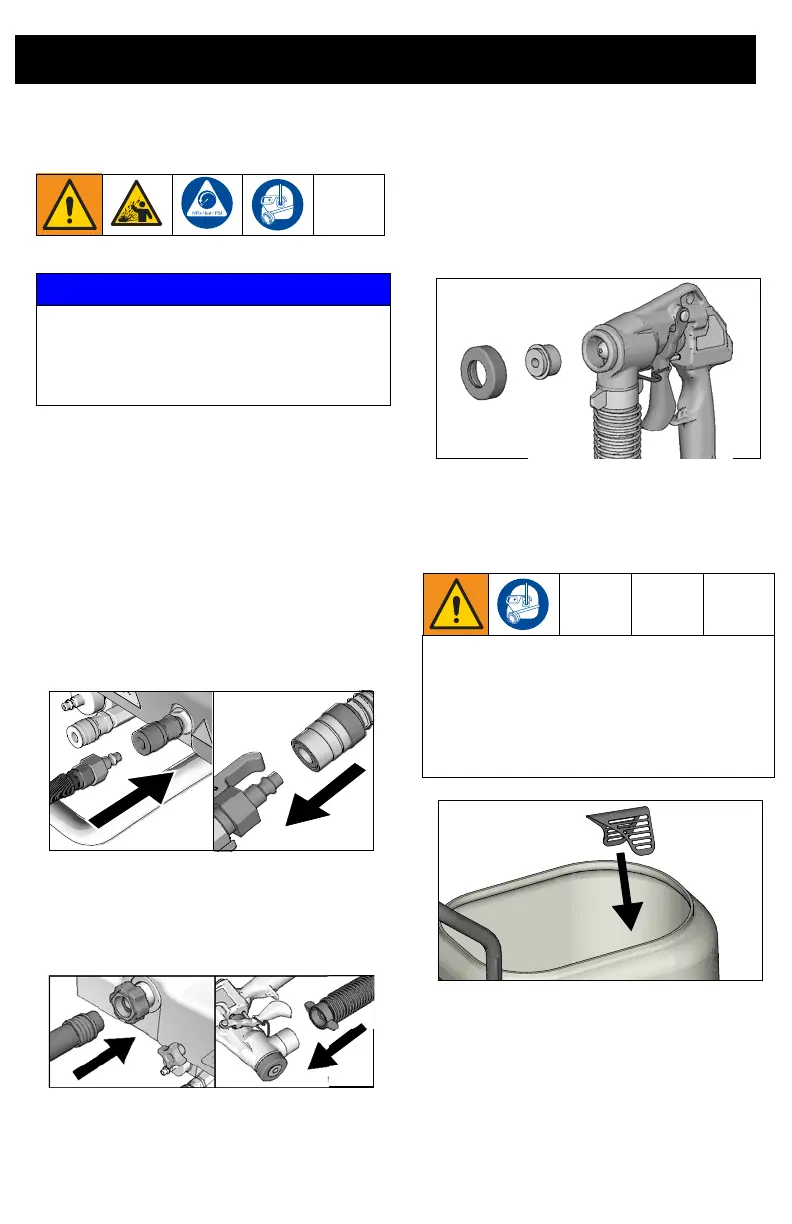

Setup
10 3A3265B
Setup
When unpacking sprayer for the first time or
after long term storage perform setup
procedure.
1. Connect one end of air hose to sprayer
air outlet quick connect and to gun air
inlet quick connect.
When auxiliary air is used connect one
end of air hose to lower sprayer air outlet
quick connect and to gun air inlet quick
connect. Connect auxiliary air source to
male coupler on sprayer.
2. Connect one end of material hose to
material outlet and the other end to gun
material inlet. Firmly tighten
connections.
3. Install spray nozzle. See
Recommended Nozzle & Disc
Selection Charts, page 15. Pulling
trigger when installing nozzle makes
assembly easier.
4. Plug power cord into a properly
grounded outlet.
5. Make sure burp guard is installed.
NOTICE
•
Do not store sprayer under pressure.
• Do not allow material to dry inside
pump, hoses, gun or spray system. This
may cause pump to fail.
ti27955a
Before adding material to the hopper,
install the burp guard. When only a small
amount of material remains in the hopper,
the burp guard prevents material from
shooting out when the unit is turned off.
This material could splash in the operator’s
eyes or on skin, or into the air.
ti27960a
ti27398a
