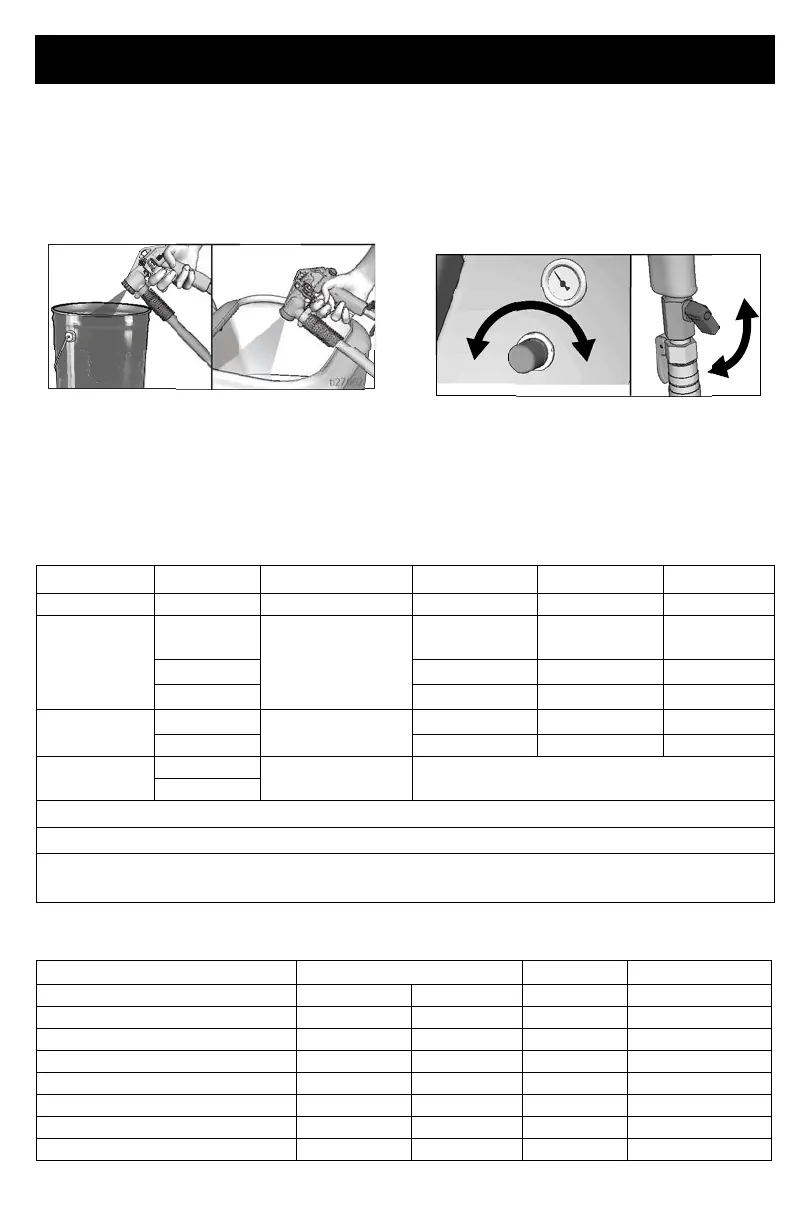

Operation
3A3265B 15
5. Follow Mixing Material, page 11.
6. Trigger gun into a pail. When texture
material appears at nozzle, move gun to
hopper and circulate until there is a solid
stream of texture material.
7. For proper spray pattern and pump and
gun adjustments, see Adjusting the
System, page 16.
8. To achieve uniform spray pattern, adjust
air control valve and flow adjustment nut
on gun. If you do not achieve the desired
pattern, change nozzles, see
Recommended Nozzle & Disc
Selection Charts, page 15.
Recommended Nozzle & Disc Selection Charts
Nozzle
WideTex™ Disc
ti27967a
Application Nozzle Size
2
Air Volume
1
Application Nozzle Size
2
Air Volume
1
Fog 3 mm high Knockdown 6-12 mm low
Simulated
Acoustic
4 mm medium to high Textured
Elastomerics
8-12 mm
high
3
6 mm Plastics 8-10 mm
high
3
8-10 mm EIFS 8-12 mm
high
3
Orange peel 3-4 mm medium to high Stucco 10-12 mm
high
3
4-8 mm Knockdown 6-12 mm low
Splatter coat 6-8 mm low to medium
6-10 mm
1
Control air volume with gun air control valve.
2
For more material volume try a larger orifice tip.
3
Some materials may require the addition of external air to improve production rate.
Use External Air Hookup Kit 287328.
Application WideTex Disc Nozzle (mm) Air Volume
Standard Hardened
Simulated Acoustic - Fine W6 W6H 4 high
- Medium W8 W8H 6 high
- Coarse W10 W10H 8- 10 high
Fog W4 W4H 3 high
Orange peel W4 or W6 W4H or W6H 3 - 8 medium to high
Splatter coat W6 or W8 W6H or W8H 6 - 10 low to medium
Knockdown W6 or W8 W6H or W8H 6 - 8 low
