Graco RTX5000 User Manual

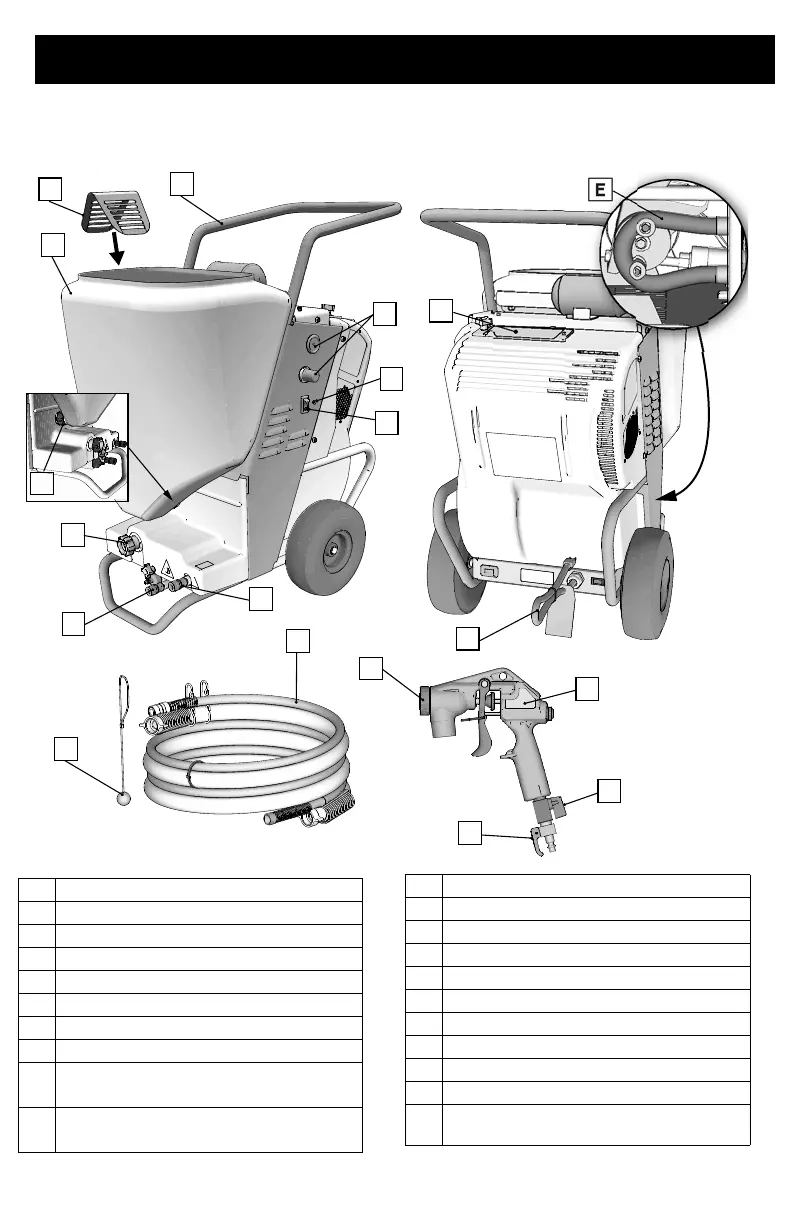

Component Identification
3A3265B 7
Component Identification
U
T
A
K
B
R
C
G
H
F
E
D
M
L
P
ti27922a
N
J
W
Y
A
ON/OFF Switch
B
Tool Box
C
Material Hopper
D
Hopper Connect/Disconnect
E
RotoFlex™ II Pump
F
Pump Hose Outlet
G
Handle
H
Air Hose Outlet
J
Auxiliary Air Hose Inlet (px models
only
K
Fluid Flow Regulator and Pressure
Gauge
L
Gun Nozzle
M
Gun
N
Burp Guard
P
Prime Valve
R
Power Cord
T
Hose - 25-ft (7.6 m)
U
Material Thickness Gauge
V
Cleaning (Sponge) Ball
W
ProGuard
Y
Air control valve
Model/Serial Tag (Not shown, located
on bottom of unit.)
