Graco RTX5000 User Manual

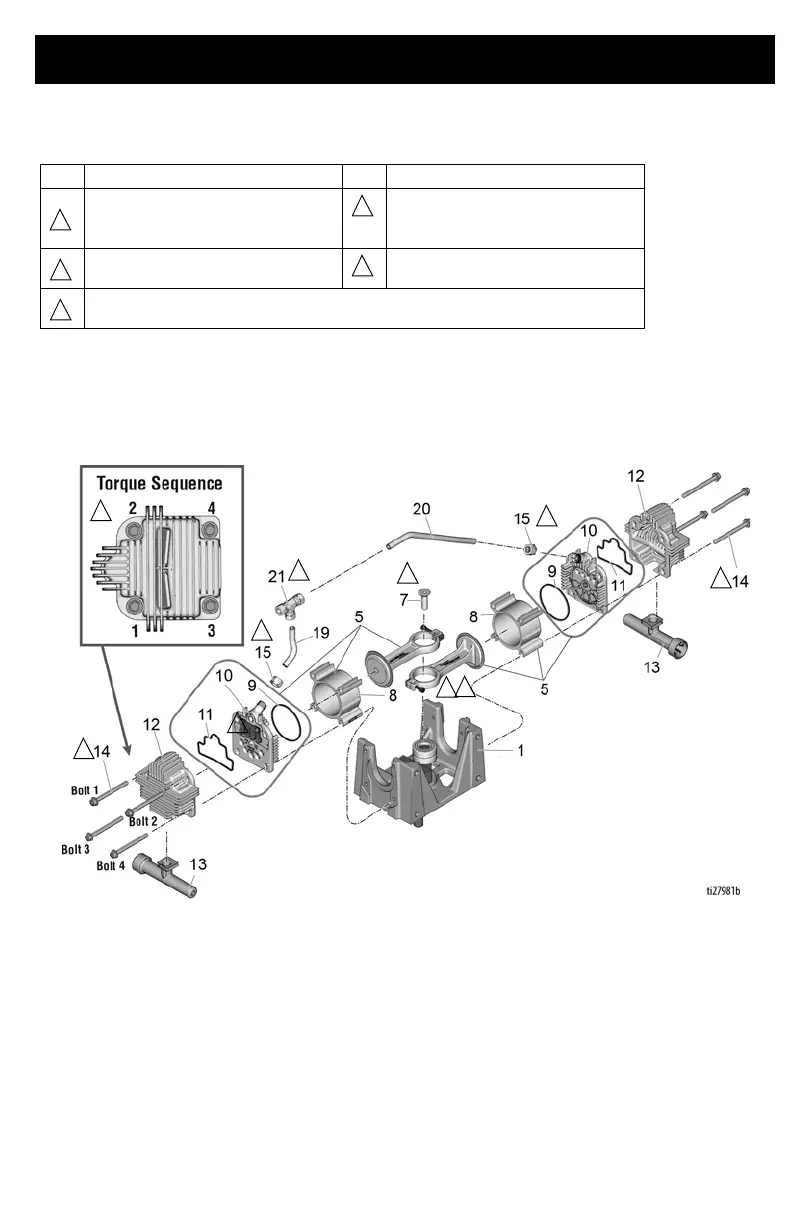

Compressor Assembly Parts
3A3265B 29
Compressor Assembly Parts
Ref. Torque Ref. Torque
Piston retaining bolt and crankshaft
bolts must torqued before head
bolts (14) are torqued.
165-185 ft-lb (18.6 - 20.9 N•m)
50-65 in-lb (5.7 - 7.3 N•m)
Hand tighten then one additional full
turn.
120-140 in-lb (13.6 - 15.8 N•m) Finger tighten cap screw in position 4 first then
torque cap screws in the sequence illustrated.
3
7
5
8
6
3
5
6
3
8
8
8
6
6
8
