Smart Start/Soft Start Operation
Smart Start
Sprayer will start under the following
conditions:
• A new sprayer is plugged in and ON/OFF
switch is turned ON.
• Gun is triggered and air control valve is
open far enough.
• There is a small leak in the system and
the pressure drops below the pressure
switch setting. This may appear to be
random operation.
• When a bleeder gun is used.
• When the pressure is relieved by
triggering the gun while the sprayer is
OFF and then turned back ON.
• Prime valve is opened.
• There is a hose failure (leak) in the twin
line hose.
Soft Start
•
The easiest way to tell if the Soft Start
System is functional is to spray material.
• The system is operating properly when a
small amount of material initially comes
out of the gun when triggered and the
volume of material slowly increases to
full spray.
NOTE: Motor runs when gun is triggered.
Sprayer is designed to stop pumping when
gun trigger is released.
ProGuard
This sprayer protects itself against high and
low voltage. If the sprayer is plugged into a
power source that is too low or too high the
sprayer will stop operating. This light has
three different states of operation: ON, blink,
and OFF.

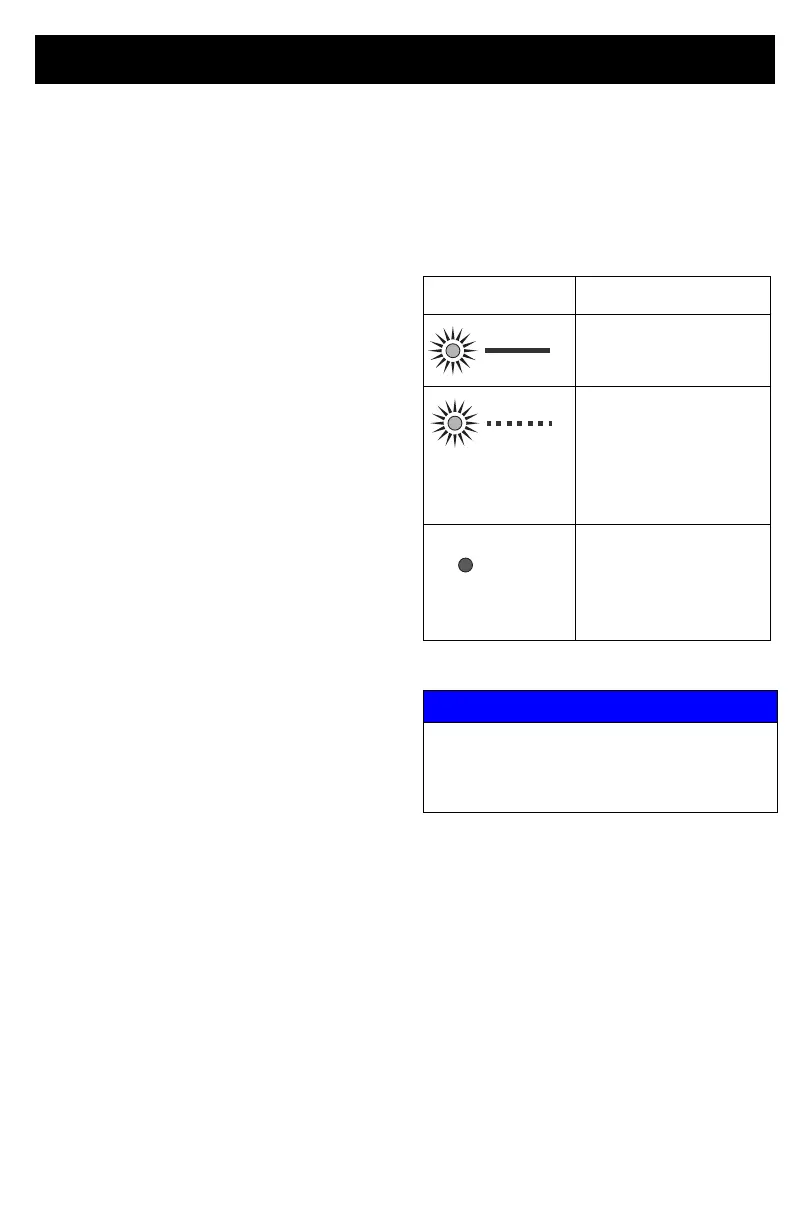

Error Code Definition
Light is ON
Unit is powered and
operating normally.
Light is Blinking
Voltage supply is too
low or too high for
sprayer and will not run
until it is plugged into a
good power supply.
Light is OFF
No power to sprayer, or
there is another error
other than the voltage
supply.
NOTICE
The sprayer handle is for pushing or pulling
the sprayer only. Do not use sprayer handle
for lifting the unit, sprayer damage may
occur.
