Setup
18 334606B

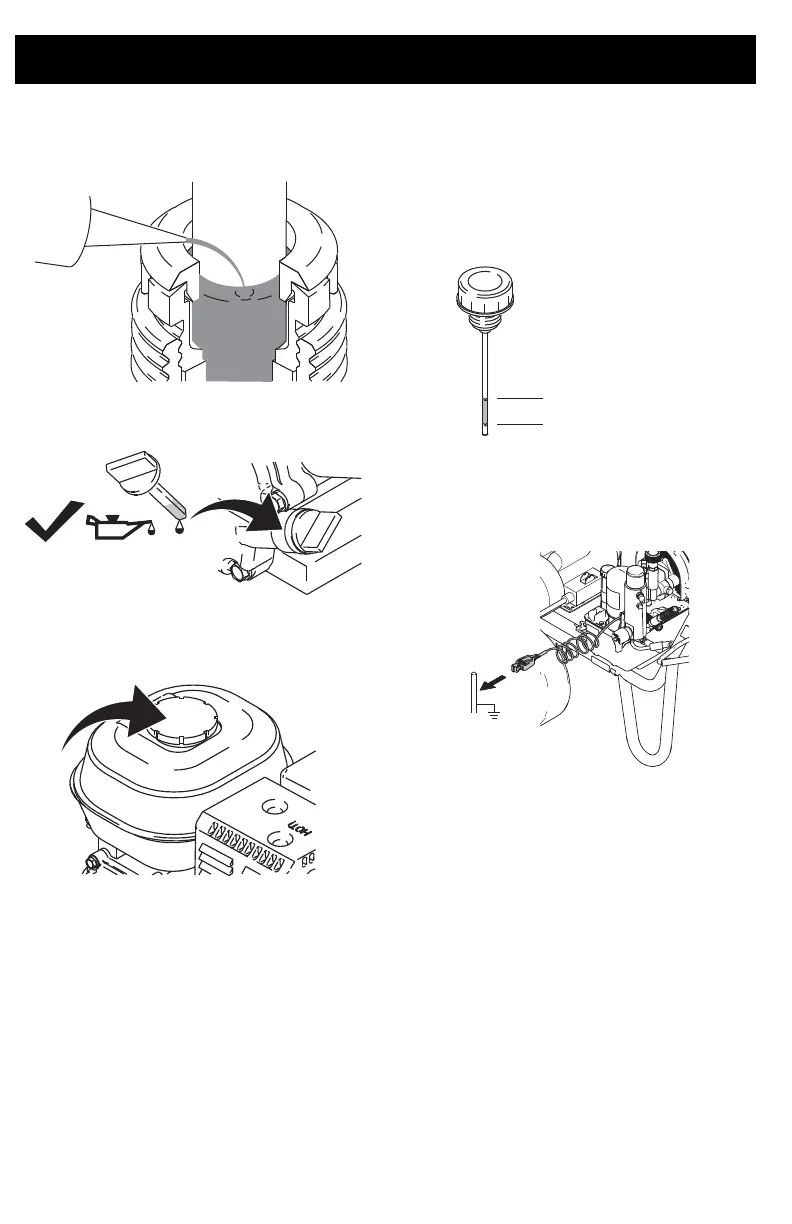

7. Fill throat packing nut with TSL to
prevent premature packing wear. Do this
each time you spray.
8. Check engine oil level.
9. Fill fuel tank.
10. Check hydraulic oil level. Add only Graco
Hydraulic Oil, ISO Grade 46, 169236 (5
gallon/18.9 liter) or 207428 (1 gallon/3.8
liter). Hydraulic tank capacity is 1.25
gallon (4.75 liters).
11. Attach sprayer grounding clamp to earth
ground.
Safe Range (cold)
ti5243a
ti18197a
$SSUR[LPDWH
)LOO/HYHO
WLD
FROG
WLD
ti5242a
