ProContractor Series Pump
34 334606B

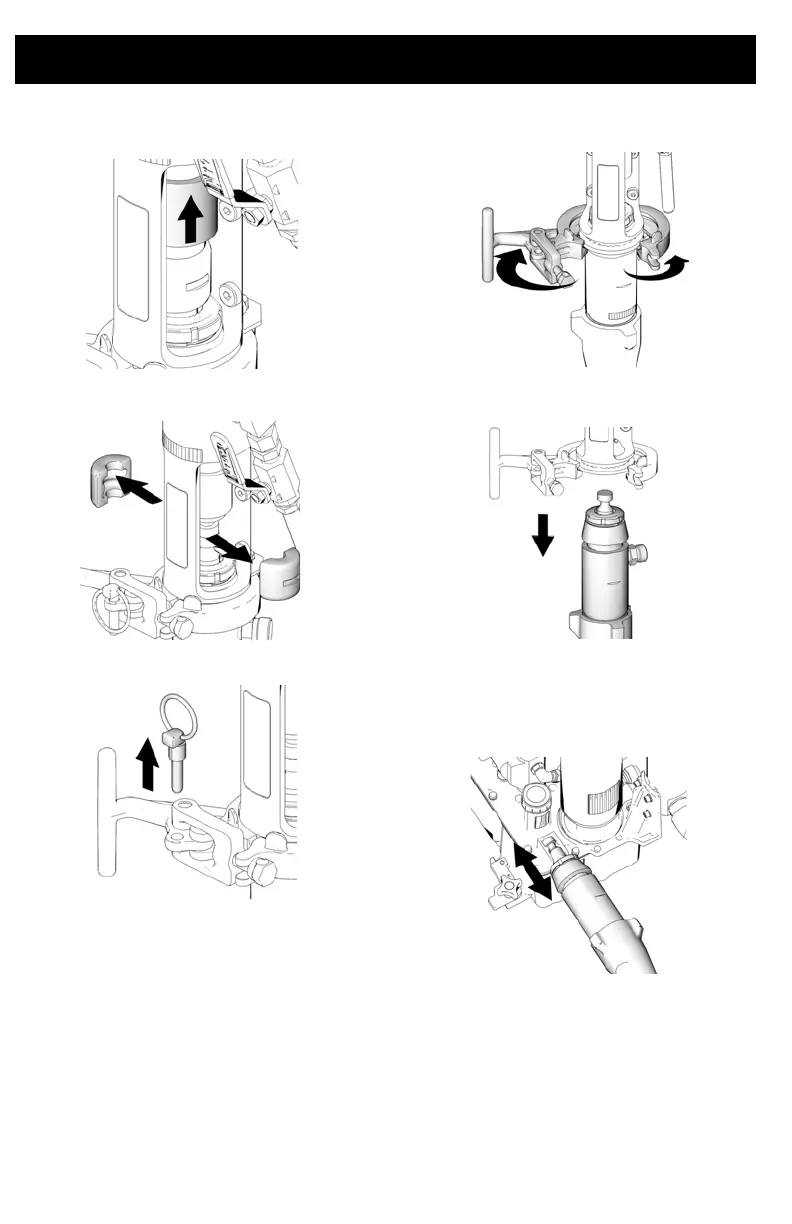

4. Slide coupler cover up to fully expose rod
couplers.
5. Remove rod couplers.
6. Remove pin.
NOTE: Support pump with your hand before
opening t-handle.
7. Open clamp.
8. Remove pump from unit.
Installation
1. If needed, place pump rod in adjustment
casting and pull pump to extend rod.
2. Reverse removal steps to reassemble
pump.
ti8829a
ti8830a
ti8831a
ti8833a
ti8832a
ti8834a
