Graco Standard Series User Manual

Parts
334606B 39

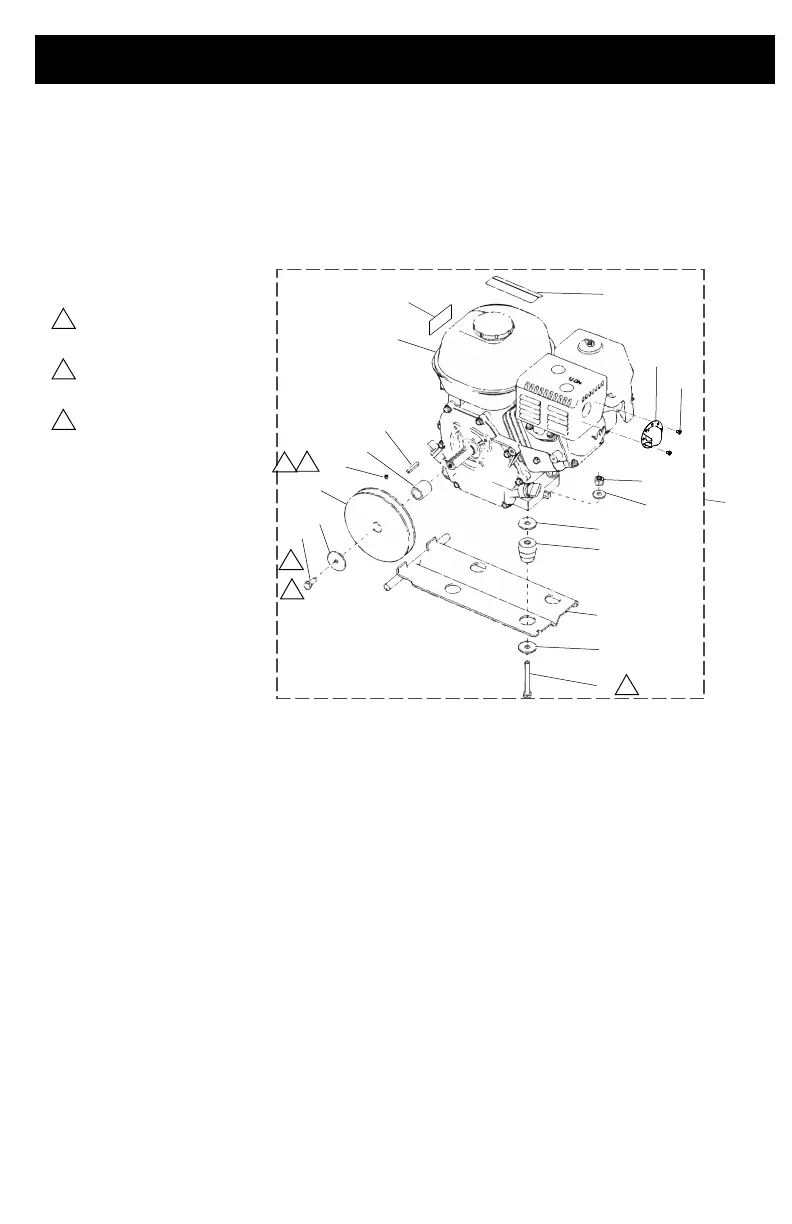

Parts - Gas Engine
DutyMax GH
™
230DI Models
Parts List - Gas Engine (DutyMax GH
™
230DI Models)
Ref. Part Description Qty.
7 100023 WASHER, flat 4
23 113664 SCREW, cap, hex hd 4
30 108842 SCREW, cap, hex hd 2
34 112717 WASHER 1
43 116908 PULLEY, 5.50 in. 1
44 119433 BELT, V-Gripnotch (not
shown)
1
50 110838 NUT, lock 4
88 194126 LABEL, warning 1
90 16Y720 LABEL, warning, ISO
engine
1
99 15F157 BRACKET, mounting,
engine
1
106 15B314 SLEEVE, motor shaft 1
119 248944 KIT, gas engine 6.5 hp
(includes all parts listed
on this page)
2
119a 116298 ENGINE, 6.5 gas 1
126 117632 KEY, square, 3/16 x
1.25
1
133 100002 SCREW, set 1
153 15E888 DAMPENER, motor
mount
4
154 108851 WASHER, plain 8
245 128099 DEFLECTOR, exhaust 1
246 128101 SCREW, tapping 2
Danger and Warning labels are available at no
cost
Ref. Part Description Qty.
30
34
43
133
106
126
23
154
99
153
154
7
24
88
119a
ti25480a
119
119a
245
246
90
Torque to 120-130 in-lbs
(13.6-14.7 N·m)
Torque to 58-62 in-lbs
(6.6-7.0 N·m)
Loctite 242
1
2
3
2
3
1
3
1
