Parts
334606B 41
Parts - Gas Engine
DutyMax GH
™
300DI Models
Parts List - Gas Engine (DutyMax GH
™
300DI Models)
Ref. Part Description Qty.
7 100132 WASHER, flat 4
9 101566 NUT, lock 4
23 106212 SCREW, cap, hex hd 4
30 116645 SCREW, cap, hex head 1
34 100696 WASHER, wrought 1
43 119401 PULLEY 1
44 119432 BELT, V-Gripnotch (not
shown)
1
88 194126 LABEL, warning 1
90 16Y720 LABEL, warning, ISO
engine
1
99 15E583 BRACKET, mounting,
engine
1
106 15E586 SLEEVE, shaft, engine 1
119 248945 KIT, gas engine 9.0 hp
(includes all parts listed
on this page)
2
119a 803900 ENGINE, gasoline, 9.0
hp (Honda)
1
126 119484 KEY, parallel, square 1
133 100002 SCREW, set 1
153 195515 DAMPENER, motor
mount
4
154 108851 WASHER, plain 8
171 C20010 SCREW, cap, socket
head
4
175 15E764 SPACER, shaft, engine 1
176 15E973 SHIELD, engine shaft 1
245 124145 DEFLECTOR, exhaust 1
246 128101 SCREW, tapping 3
Danger and Warning labels are available at no
cost
Ref. Part Description Qty.
154
7
154
99
153
23
119a
245
246
9
106
126
43
133
175
34
30
176
171
88
90

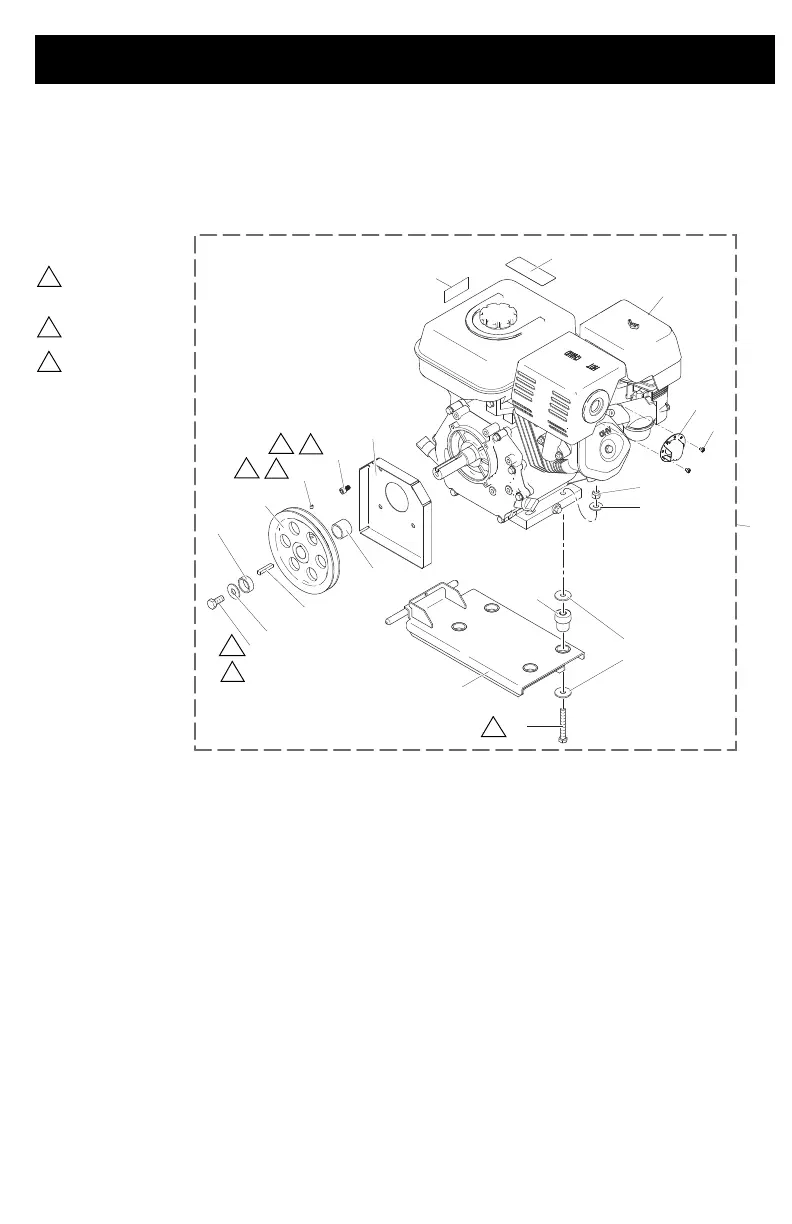

ti25499a
119
Torque to 120-130 in-lbs
(13.6 -14.7 N·m)
Loctite 242
Torque to 58-62 in-lbs
(6.6-7.0 N·m)
1
2
3
1
2
2
3
1
2
1
