Parts

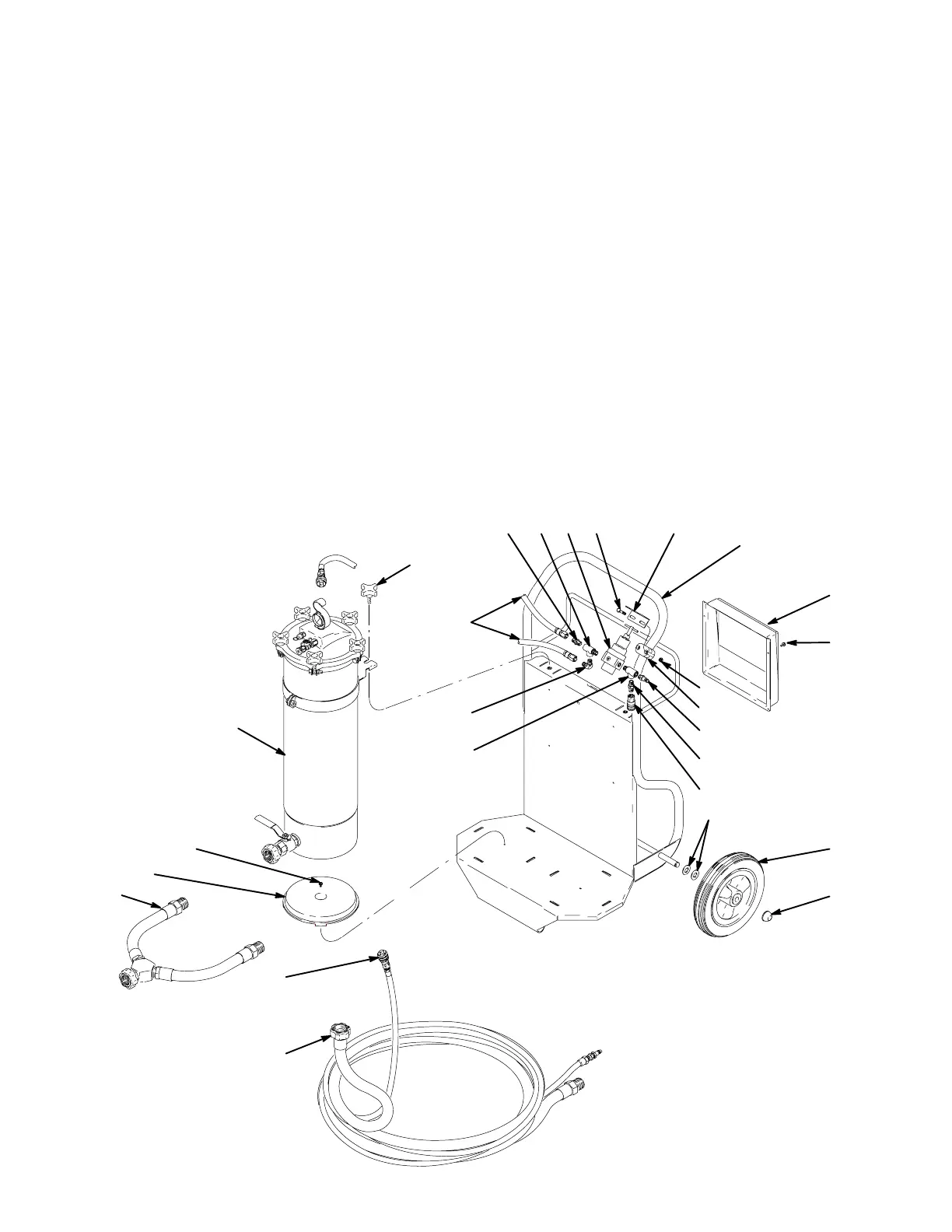

TexSpray Twin Tank Model 231587
(with 1 in. fluid hose, 3/8 in. air hose, and gun)
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 192244 FRAME, TexSpray Twin 1
2 191942 BRACKET, tank, base 2
3 239023 POT, pressure, see page 25 2
4 108471 KNOB, pronged 2
5 192043 COVER, tool box 1
6 113974 SCREW, mch, sltd, hex wash hd 6
7 113807 WHEEL, flat free urethane 2
8 114817 HUBCAP 2
11Y 189265 LABEL, gun operation; not shown 2
12 238781 KIT, Y, two pot 1
13 287304 HOSE SET, 1 in. fluid hose, 1
3/8 in. air hose; includes 13a, 13b
14 113397 BALL, sponge, 30 mm 2
15 191947 FLOAT, tank, see page 25 2
16 154636 SPACER 4
20 113406 REGULATOR 1
21 105252 BRACKET 1
22 115089 CLAMP 1
23 100015 NUT, 1/4–20 2
25 100058 SCREW, 1/4–20 2
26 106228 TEE, 1/4 npt 1
27 169970 FITTING, air line 1
28 114558 COUPLER, air line 1
29 113029 NIPPLE, 1/4 npt 1
30 162453 NIPPLE, 1/4 nrsm 1
31 113813 HOSE, air, coupled, 25 in. 2
32 110249 ADAPTER, male, elbow, 90_ 1
3
5
1
7
13
13
4
12
2
8
6
6
16
30 26 20 25
23
21
32
26
27
29
28
31
22
