Removing and Inspecting Cooler
WARNING
HOT SURFACE HAZARD
Be sure the compressor duct work is
cool before removing it. If the sprayer
was operated recently, it will be very hot
and can cause burns!
See Fig. 18
1.
Relieve the pressure.
See Pressure Relief
Procedure on page 6.
2. See Removing Compressor, beginning on
page 18.
3. Loosen clamp (28) on hose (29), and remove hose
from cooler (27).
4. Remove screws (7) and cooler (27). Clean the
cooler, and inspect for leaks, dents, and plugging
with dust. Replace cooler if necessary.

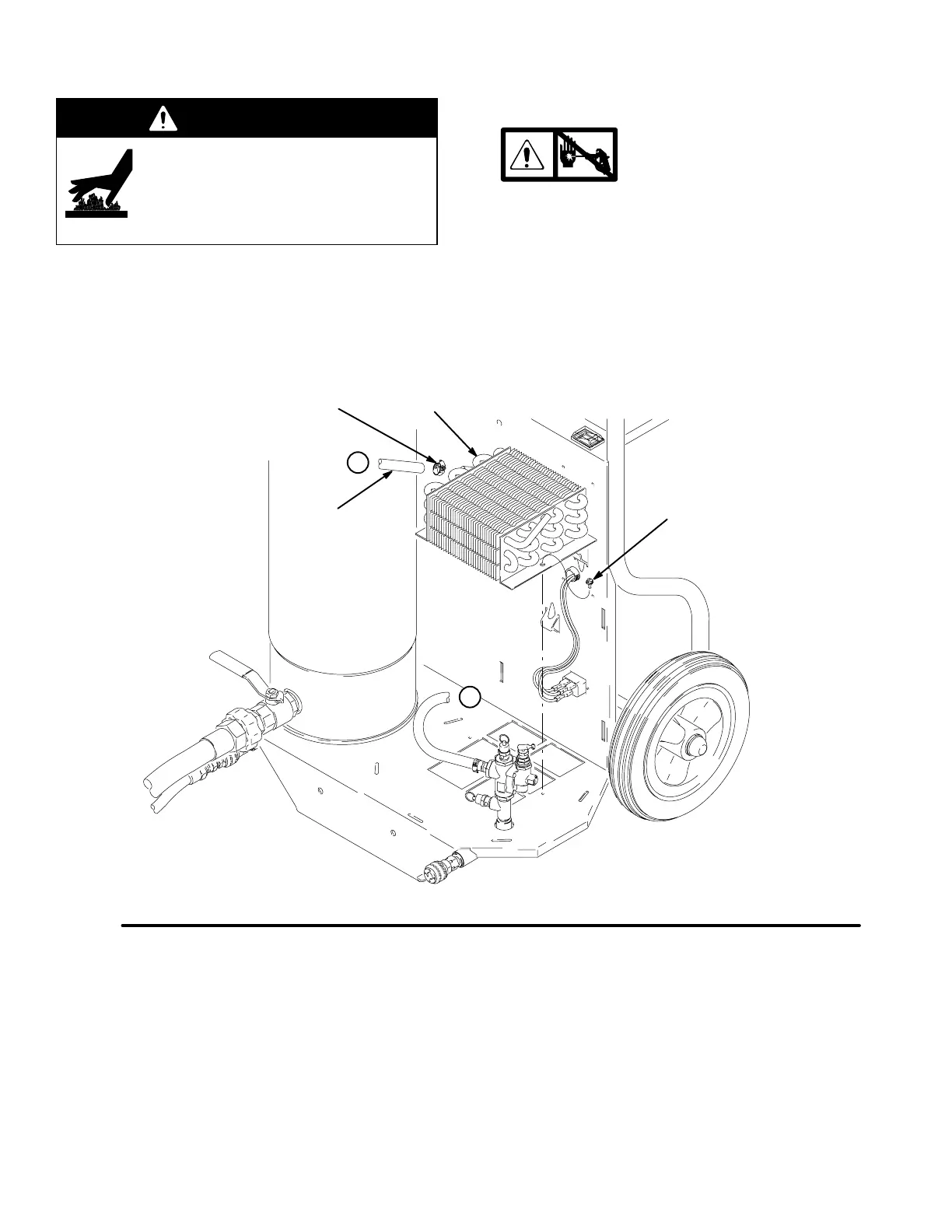

Fig. 18
2728
29
7
A
A
ti5081a
