Graco TexSpray EXT HP - Component Identification and Function

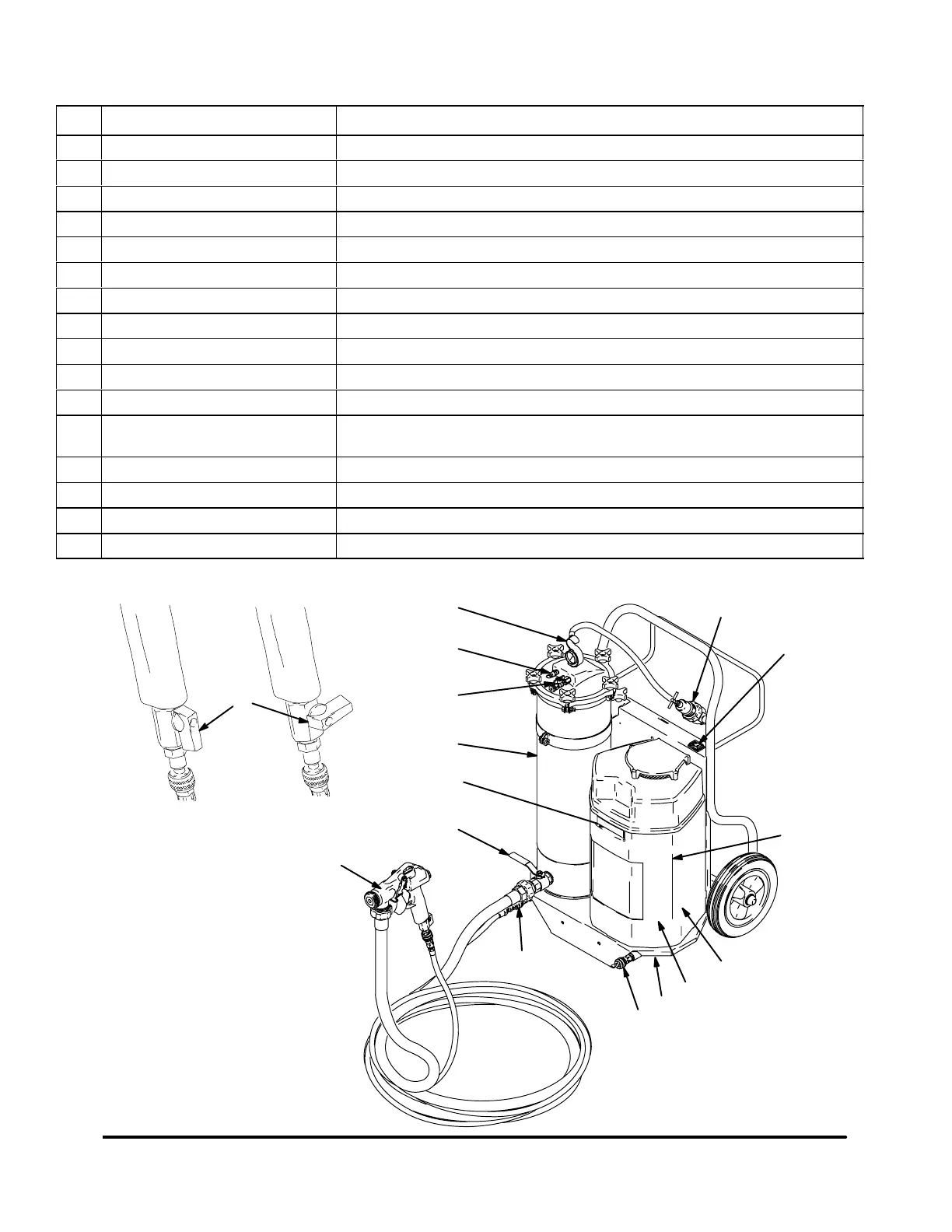

Fig. 1
L
A
P
J
F
N
H
B
K
E
G
C
D
M
S
closed
R
open
ti5069a
4 308717
Component Identification and Function
Component Function
A ON/OFF switch Power switch that controls 120/240V AC power to sprayer
B Air pressure regulator Adjusts air pressure in pot to control flow rate of material to spray gun
C Pot cover storage hook Allows the cover to hang from cart frame during pressure pot refilling
D Pot safety valve Prevents pot pressure from exceeding 100 psi (0.7 MPa, 7 bar)
E Pot vent valve Allows quick venting of pot air pressure for refilling and cleanup
F Five-gallon pressure pot Holds texture material
G Air filter Filters incoming air to the compressor
H Fluid valve Shuts off fluid supply to spray gun
J Spray gun Uses compressor air to break up and spray texture material
K Air outlet Provides quick disconnection of air supply from spray gun
L Auxiliary air compressor port Provides connection to replacement or supplemental air compressor
M Compressor safety valve Prevents supply and gun air pressure from exceeding 100 psi (0.7 MPa,
7 bar) limit
N Cooler Reduces temperature of air from compressor
P Compressor Open frame AC motor, 1-phase, with oil-less single-stage air compressor
R Gun air valve Shuts off air supply to spray gun
S Air line drain valve Allows air line moisture accumulation to be drained
