Overview
10 313292J
Overview
Usage
XM plural-component sprayers can mix and spray most
two-component epoxy and urethane protective coatings.
When using quick-setting materials (less than 10 minute
pot life) a remote mix manifold must be used.
XM plural-component sprayers are operated via user
interface, air controls, and fluid controls.

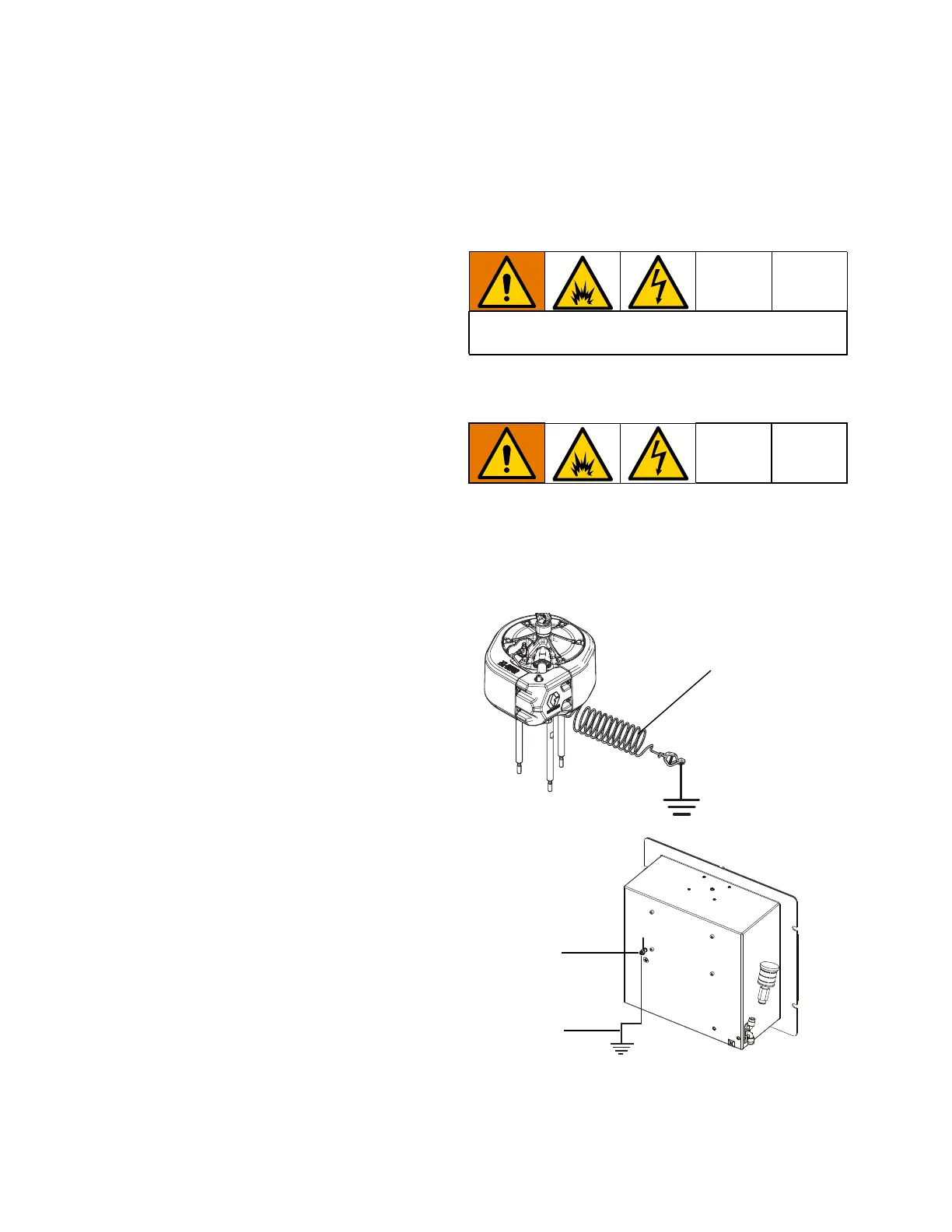

Location
Grounding
Ground control box (ground wire attached) and both air
motors to a true earth ground.
NOTE: If wall power is used, ground electrical
connection properly according to local codes.
XM OEM sprayers are not approved for use in
hazardous locations.
Ground Wire
Control Box
Ground Nut
WLD
Control Box
Ground Wire
