Graco XM Series

Component Identification
12 313292J
Fluid Control Assembly
AA Dosing Valve A
AB Dosing Valve B
AC Recirculation Valve A
AD Recirculation Valve B
AE Sampling Valve A
AF Sampling Valve B
AG Restriction Valve
AH Mix Manifold Shutoff / Check Valve A
AJ Mix Manifold Shutoff / Check Valve B
AK Solvent Shutoff Valve
AL Pressure Sensor (hidden)

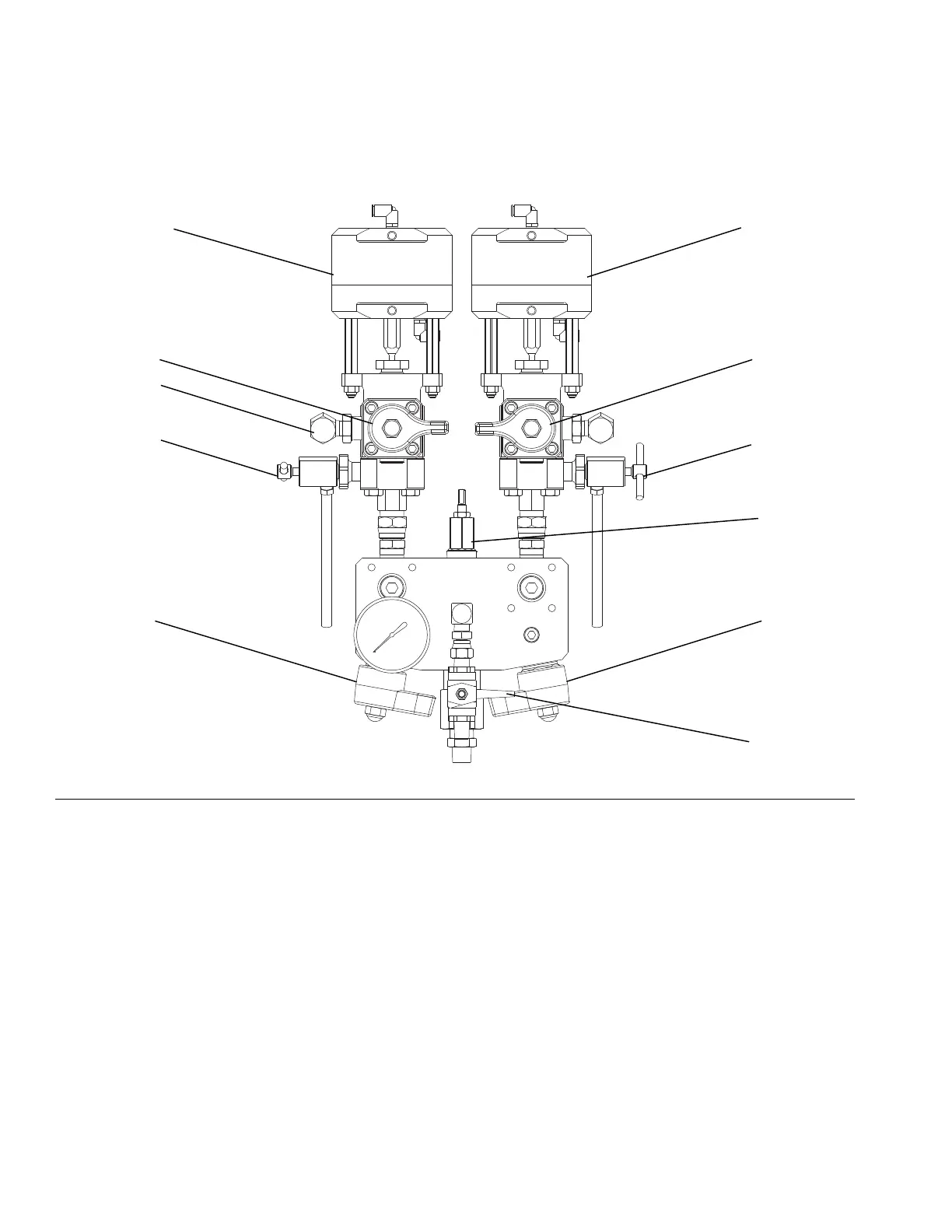

FIG. 2: Fluid Control Assembly
AB
AD
AF
AG
AJ
AK
AA
AC
AE
AH
AL
