Graco XM Series Installation-Parts

Parts
313292J 23
XMA_00 and XMB_00 Parts
Reference numbers not listed are not included with
XMA_00 and XMB_00 systems.
✓ Included with XMAD00 and XMBD00 systems only.
❄ Included with XMAA00 and XMBA00 systems only.
✖ Included with XMBA00 and XMBD00 systems only.
★ Not shown.
▲ Replacement Danger and Warning labels, tags, and cards
are available at no cost.
Ref. Part Description Qty.
2 255684 MANIFOLD, mix; see manual
313289
1
3 ----- VALVE, ratio control, left; see
manual 313289
1
4 ----- VALVE, ratio control, right; see
manual 313289
1
5 255761 MODULE, air controls, upper; see
manual 313289
1
6 255762 MANIFOLD, inlet air distribution; see
manual 313289
1
7 255771 BOX; see manual 313289
1
19✓ 255728 MODULE, alternator
1
20 110637 SCREW, mach, pan hd
XMAA00 and XMBA00
3
XMAD00 and XMBD00
5
21✓★ C12508 TUBING, nylon, round
5
22 15V778 CABLE, I.S.CAN, f/f; 20 in.
1
23✓ 15V782 CABLE, I.S. CAN, m/f; 20 in.
1
24✓ 15V783 CABLE, male/female; 39 in.
1
25❄ 15V747 POWER SUPPLY, assy.; 24Vdc,
2.5A, 60W
1
26❄ 100035 SCREW, machine, pan hd
4
27❄ 15X407 CABLE, power
1
28❄ 115306 FILTER, power
1
29❄ 15V779 CABLE, I.S. CAN, f/f; 34 in.
1
38 112958 NUT, hex, flanged
11
40★▲ 15X393 LABEL, warning, USB
1
41★ 15X126 LABEL, codes
1
42★▲ 15W598 LABEL, warning
1
43✓ 156971 NIPPLE, short
1
44✓ 115243 REGULATOR, air, 1/4 npt
1
45✓ 112307 ELBOW, street; 1/8 nptf x 1/8 nptm
1
46✓ 15W017 VALVE, safety, regulator
1
47✓ 115841 ELBOW, swivel, male; 1/4 npt
1
48✓ 104655 GAUGE, pressure, air
1
49✓ 156823 UNION, swivel
1
50✓ 102063 WASHER, lock, ext
1
51✓ 15B090 WIRE, grounding, door
1
52✓ 100284 NUT, hex mscr
1
53✖ 121295 SCREW, cap, socket hd
8
54✖★ 158491 NIPPLE; 1/2 npt
4
55✖ 100361 PLUG, pipe; 1/2 in. - 14 nptf
2
56✖ 15R529 BLOCK, manifold
2
57✖ 156684 ADAPTER, union
2
58✖ 121139 O-RING
2
59✖ 15J594 HOUSING, valve
2
60✖ 255747 CARTRIDGE, valve
2
61✖ 15R380 HANDLE, green
1
62✖ 15J916 HANDLE, blue
1
63✖ 117623 NUT, cap; 3/8-16 unc
2
64✖ 262522 CARRIAGE
1
65 111801 SCREW, cap, hex hd
12
66 108636 MUFFLER
1
67 121688 CONNECTOR, 3/8 npt x 3/8 tube
1
68 054175 TUBE, nylon, 1/4 OD, black; 10 ft;
see Component Identification,
page 11
69 054757 TUBE, nylon, 1/4 OD natural; 10 ft;
see Component Identification,
page 11
73 238909 WIRE, grounding assy
1
74★ 17L724 FLASH DRIVE, USB, 2.0
1
76✖ 162505 UNION, swivel; 3/8 male x 1/2
female npt
1
77✖ 222200 VALVE, restrictor
1
78✖ 155699 ELBOW, street
1
79✖ 159239 NIPPLE, pipe; 1/2 x 3/8 npt
1
80✖★ 156849 PIPE, nipple
1
81✖★ 164672 ADAPTER
1
82★ 126786 WRENCH, restrictor
1
92✖ 16N367 COUPLING, 1/2 x 3.5 in.
1
Ref. Part Description Qty.

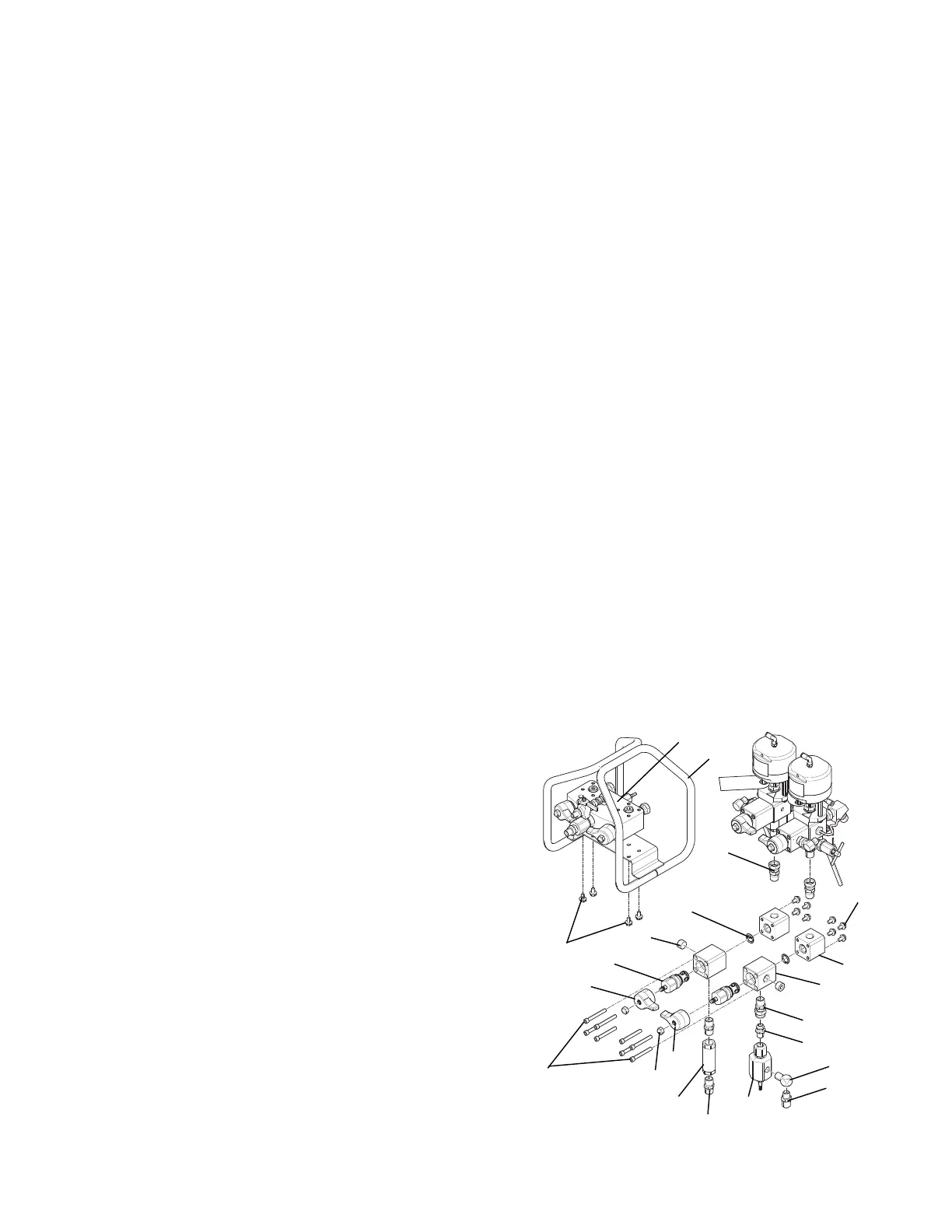

XMBA00 and XMBD00 Systems Only
2
64
65
57
62
55
53
63
61
59
56
65
60
58
54
76
77
78
79
54
92
