Flush Mixed Material
18 313292J
Flush Mixed Material
Flush Mix Manifold
Use Solvent Pump

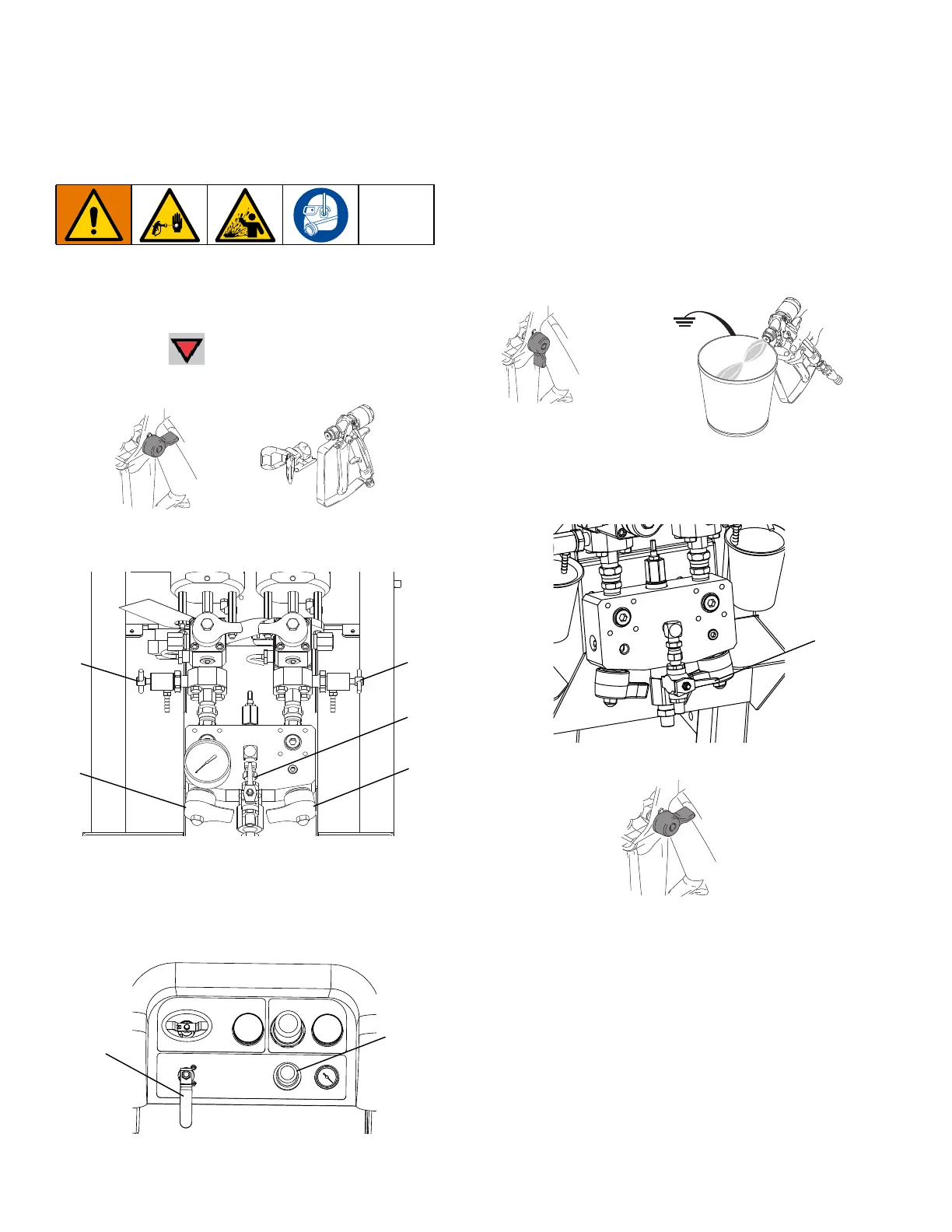

1. Press Stop to turn off system. Engage trigger
lock. Remove spray tip.
2. Ensure sampling valves (AE, AF) and mix manifold
valves (AH, AJ) are closed.
3. Open solvent shutoff valve (AK) at mix manifold.
4. Open solvent pump air valve (CB). Pull out and
slowly turn solvent pump air regulator (CG)
clockwise to increase air pressure. Use lowest
possible pressure.
.
5. Disengage trigger lock and trigger gun into a
grounded pail. Use a pail lid with a hole to dispense
through. Seal around hole and gun with a rag to
prevent splash back. Be careful to keep fingers
away from front of gun. Flush out mixed material
until clean solvent dispenses.
6. Close solvent pump air valve (CB) and solvent
shutoff valve (AK) at mix manifold. Trigger spray
gun to relieve pressure.
7. Engage trigger lock.
8. Disassemble and clean spray tip with solvent by
hand. Reinstall on gun.
AE
AF
AJ
AH
AK
CG
CB
ti1950a
ti1953a
AK
ti1949a
