Graco XM Series

Component Identification
313292J 15
User Interface Display
NOTE: For details regarding the user interface display
see your XM Plural-Component Sprayer operation
manual.
Main Display Screen Components
The following figure calls out the navigational, status, and general informational components of each display screen.

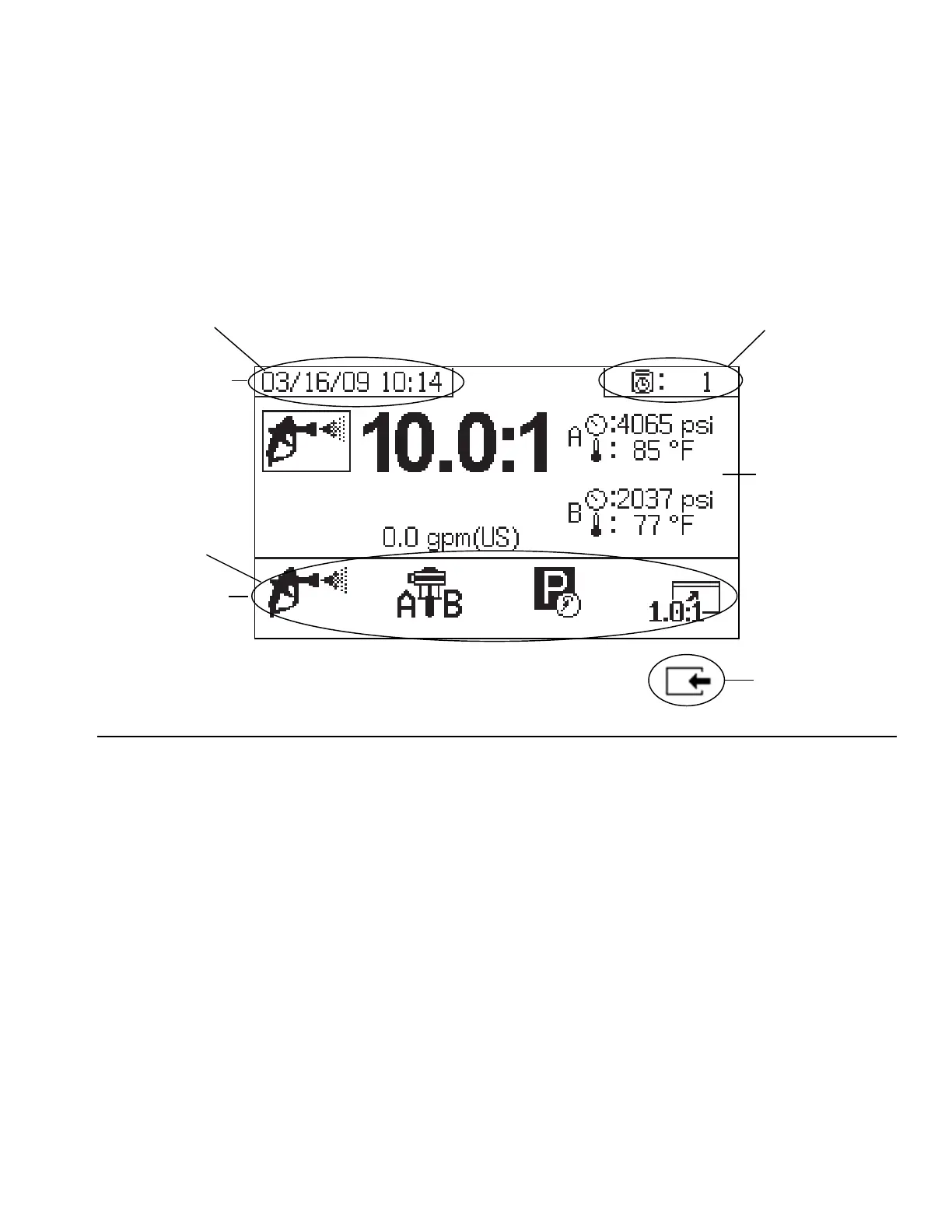

FIG. 5: Main Display Screen Components
Current Date and Time
Navigate to screens
within same group
Go back one screen
Current Status Bar
Navigational Bar
Function Display
Remaining Pot Life Time
